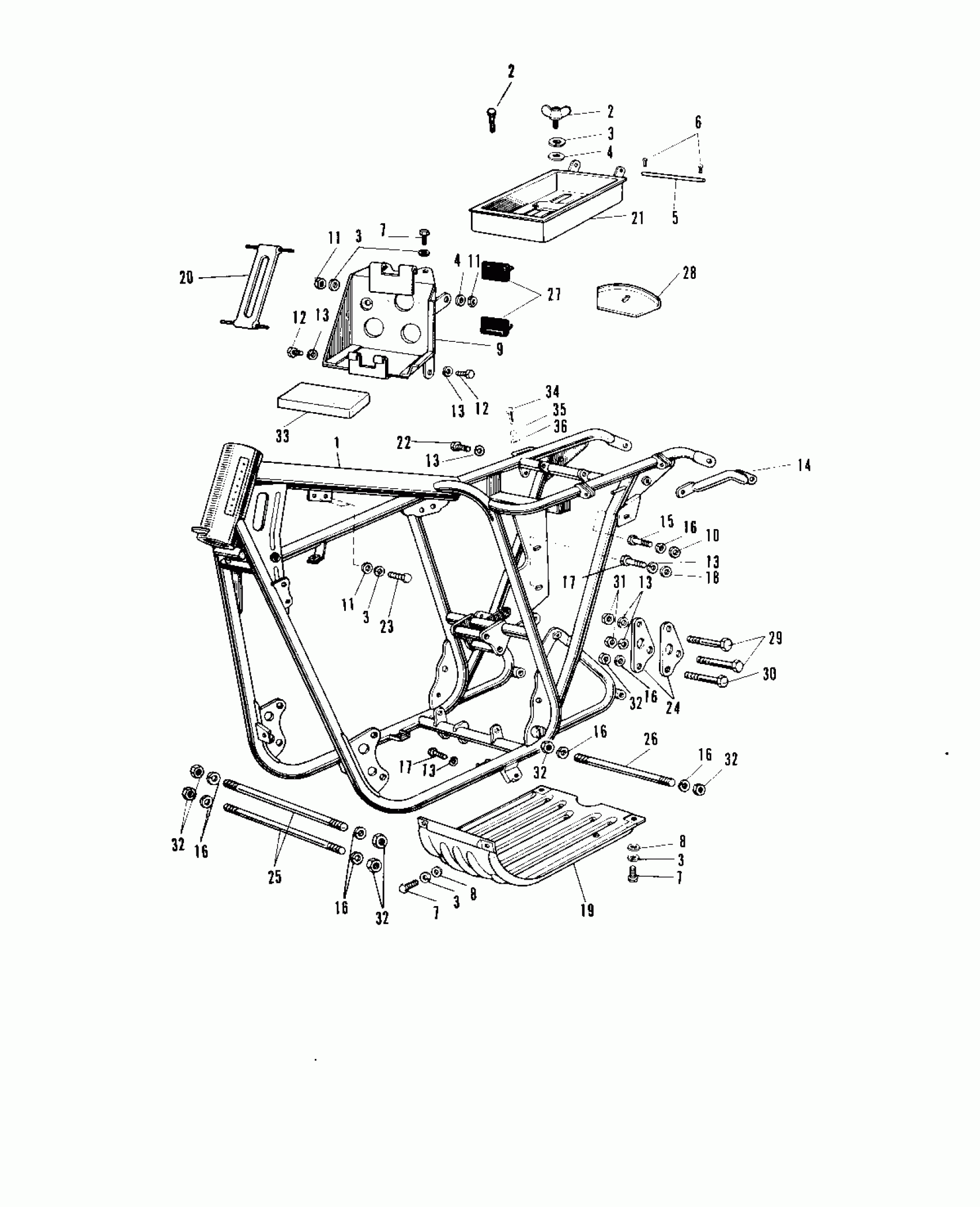

Kawasaki A1-B FRAME A1SS/A7SS Diagram
#
Description
Price
1
FRAME
32002-007
Unavailable
2
SCREW PAN HEAD 6X12
220B0612
Unavailable
3
WASHER SPRING 6MM
461F0600
$0.69
4
WASHER PLAIN 6MM
411B0600
$2.84
5
PIN OIL TANK FITTING
92043-020
$14.80
6
PIN COTTER 1.6X10
550D1610
Unavailable
7
BOLT-UPSET,6X12
112G0612
$1.45
8
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
9
32097-004
$28.19
10
WASHER PLAIN 10MM
410B1000
$0.58
11
NUT 6MM
311B0600
$0.93
12
BOLT HEX HEAD 8X16
116B0816
Unavailable
13
WASHER SPRING 8MM
461F0800
$0.40
14
GRIP FRAME
32109-004
Unavailable
15
BOLT,HEX HEAD,10X25
113G1025
Unavailable
16
WASHER SPRING 10MM
461F1000
$0.67
17
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
18
WASHER PLAIN 8MM
411B0800
$0.93
19
GUARD ENGINE
55011-005
Unavailable
20
BAND BATTERY
92072-015
Unavailable
21
BOX TOOL
32098-002
Unavailable
22
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
23
BOLT-UPSET,6X35
112G0635
Unavailable
24
PLATE ENG REAR HOLDER
32030-006
Unavailable
25
BOLT,10X225
92003-181
Unavailable
26
BOLT ENG LOWER MOUNT
92091-003
Unavailable
27
SEAT RECTIFIER RUBBER
32103-003
Unavailable
28
COVER AIR CLEANER
32104-002
Unavailable
29
BOLT,FLANGED,8X70
92001-1583
$9.57
30
BOLT,FLANGED,10X70
92001-1618
Unavailable
30
BOLT,FLANGED,10X70
92001-1618
$10.37
31
NUT,8MM
311B0800
$0.67
32
NUT-HEX-FINE,10MM
314B1000
$0.67
33
MAT BATTERY
32103-006
Unavailable
34
SCREW PAN HEAD 6X10
220B0610
$3.14
35
WASHER SPRING 6MM
461F0600
$0.69
36
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
