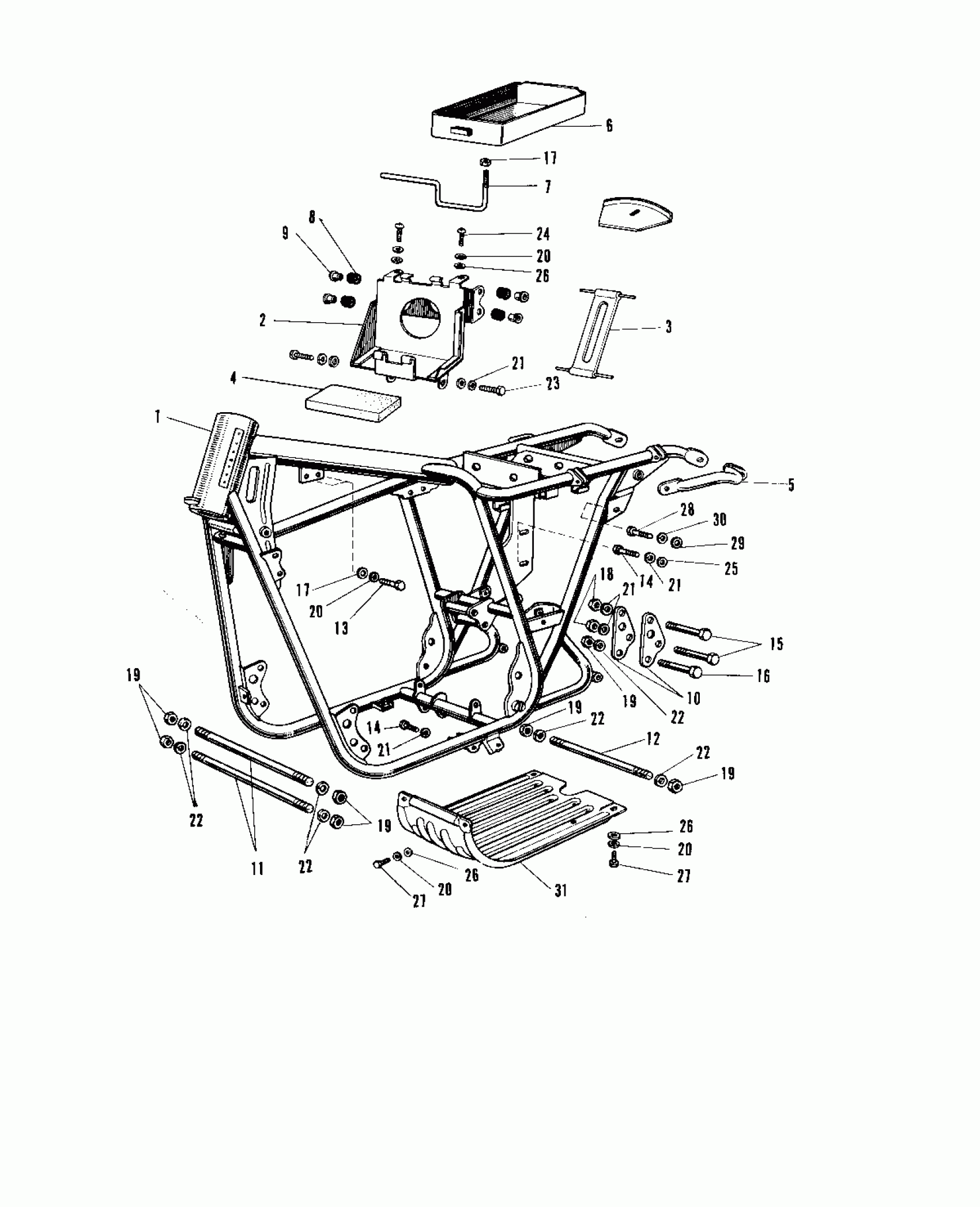

Kawasaki A1-B FRAME A1/SS, A7/SS, U.S. MODELS Diagram
#
Description
Price
1
FRAME
32002-020
Unavailable
2
CASE BATTERY
32097-007
Unavailable
3
BAND BATTERY
92072-015
Unavailable
4
MAT BATTERY
32103-006
Unavailable
5
GRIP FRAME
32109-004
Unavailable
6
BOX TOOL
32098-004
Unavailable
6
BOX TOOL
32098-010
Unavailable
7
STAY TOOL BOX
32110-001
Unavailable
8
GROMMET IGN UNIT FIT
92071-037
Unavailable
9
WASHER IGN UNIT FIT
92026-056
$1.69
10
PLATE ENG REAR HOLDER
32030-006
Unavailable
11
BOLT,10X225
92003-181
Unavailable
12
BOLT ENG LOWER MOUNT
92091-003
Unavailable
13
BOLT 6X35
110R0635
Unavailable
14
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
15
BOLT,FLANGED,8X70
92001-1583
$9.57
16
BOLT,FLANGED,10X70
92001-1618
Unavailable
16
BOLT,FLANGED,10X70
92001-1618
$10.37
17
NUT 6MM
311B0600
$0.93
18
NUT,8MM
311B0800
$0.67
19
NUT-HEX-FINE,10MM
314B1000
$0.67
20
WASHER SPRING 6MM
461F0600
$0.69
21
WASHER SPRING 8MM
461F0800
$0.40
22
WASHER SPRING 10MM
461F1000
$0.67
23
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
24
SCREW PAN HEAD 6X12
220B0612
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
27
BOLT-UPSET,6X12
112G0612
$1.45
