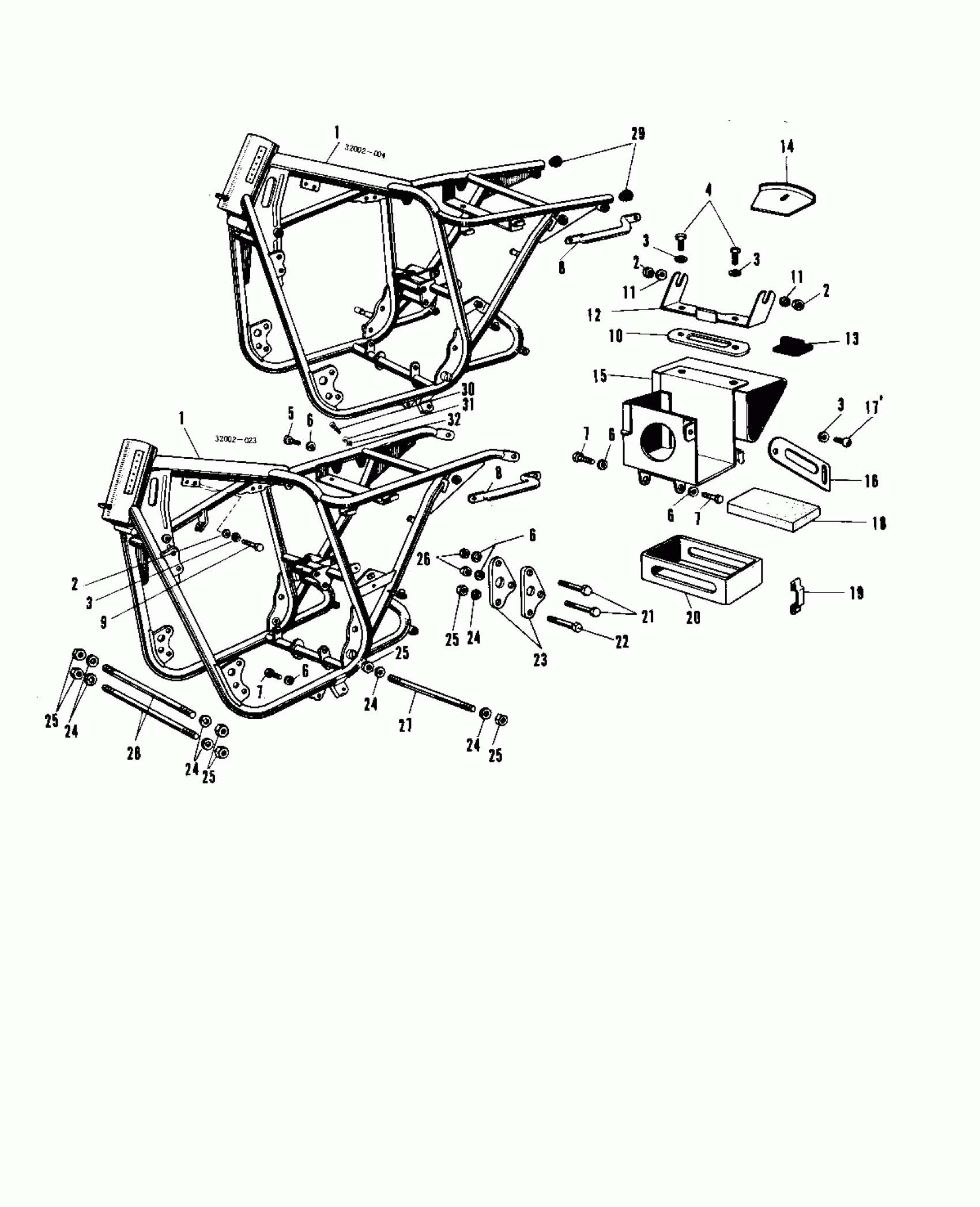

Kawasaki A1-B FRAME A1/A7 Diagram
#
Description
Price
1
UNAVAILABLE IN PRICE BOOK
32002-004
Unavailable
1
FRAME
32002-023
Unavailable
2
NUT 6MM
311B0600
$0.93
3
WASHER SPRING 6MM
461F0600
$0.69
4
BOLT-UPSET,6X16
112G0616
$1.10
5
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
6
WASHER SPRING 8MM
461F0800
$0.40
7
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
8
GRIP FRAM
32109-010
Unavailable
9
BOLT-UPSET,6X35
112G0635
Unavailable
10
NUT TOOL BOX SET
32100-009
$3.65
11
WASHER PLAIN 6MM
411B0600
$2.84
12
BRACKET RECTIFIER
32095-001
Unavailable
13
SEAT RECTIFIER RUBBER
32103-003
Unavailable
14
COVER AIR CLEANER
32104-002
Unavailable
15
BOX BATTERY - TOOL
32099-001
Unavailable
16
BAND BATTERY
32100-005
Unavailable
17
SCREW-PAN-CROS,6X16
220B0616
$2.84
18
MAT BATTERY
32103-006
Unavailable
19
PROTECTOR BATTERY
31082-002
Unavailable
20
RUBBER BATTERY SUPPRT
32103-009
Unavailable
21
BOLT,FLANGED,8X70
92001-1583
$9.57
22
BOLT,FLANGED,10X70
92001-1618
Unavailable
22
BOLT,FLANGED,10X70
92001-1618
$10.37
23
PLATE ENG REAR HOLDER
32030-006
Unavailable
24
WASHER SPRING 10MM
461F1000
$0.67
25
NUT-HEX-FINE,10MM
314B1000
$0.67
26
NUT,8MM
311B0800
$0.67
27
BOLT ENG LOWER MOUNT
92091-003
Unavailable
28
BOLT,10X225
92003-181
Unavailable
29
UNAVAILABLE IN PRICE BOOK
32112-003
$1.34
30
SCREW PAN HEAD 6X10
220B0610
$3.14
31
WASHER SPRING 6MM
461F0600
$0.69
32
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
