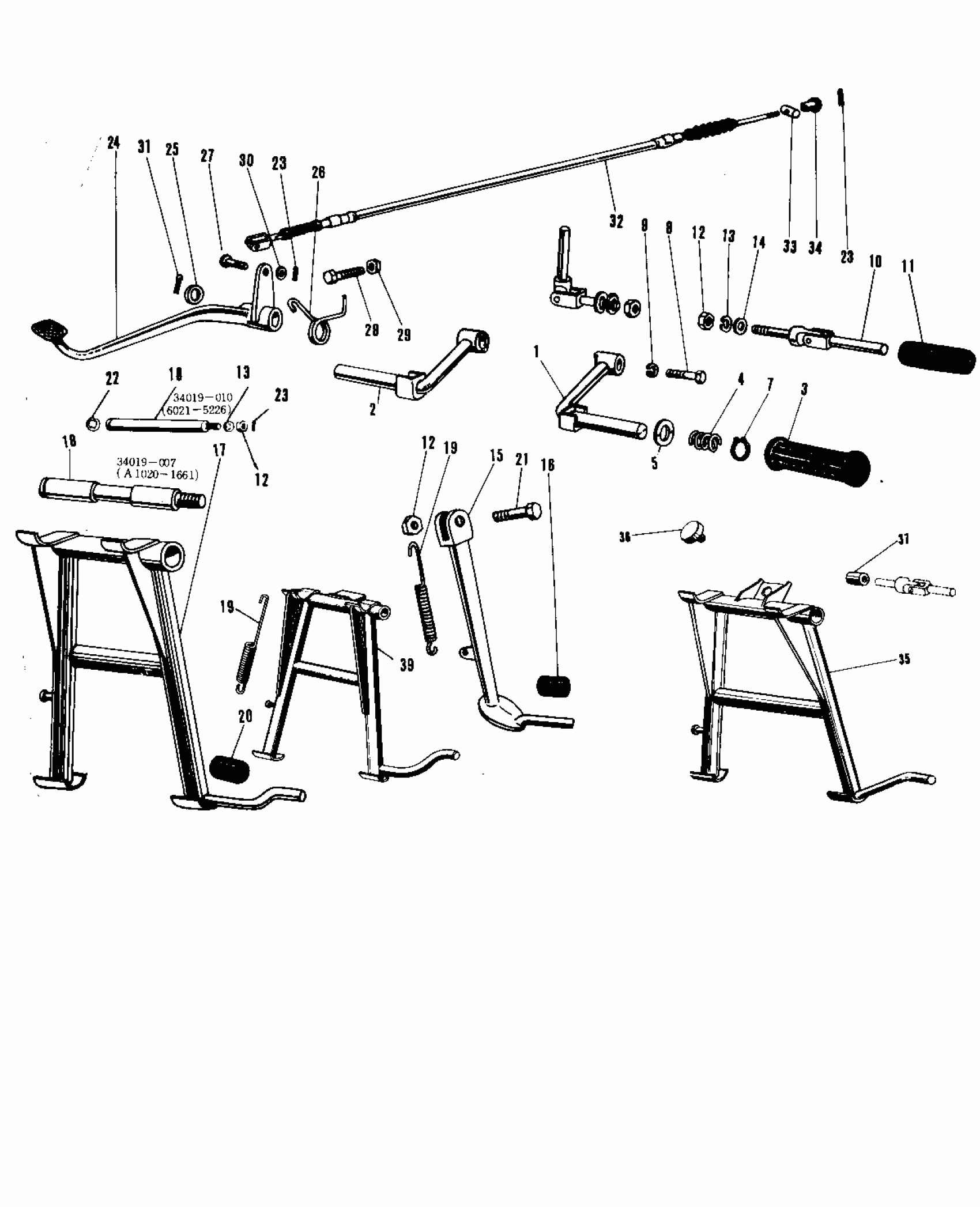

Kawasaki A1-B FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
Description
Price
1
BAR FOOTREST L.H
34003-001
Unavailable
2
BAR FOOTREST R.H
34003-002
Unavailable
3
RUBBER FOOTREST
92076-010
Unavailable
4
SPRING FOOTREST PEG
34006-002
Unavailable
5
WASHER FOLDING PEG
92022-049
Unavailable
7
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
8
BOLT HEX HEAD 12X40
113B1240
Unavailable
8
BOLT HEX HEAD 12X40
113B1240
Unavailable
9
WASHER-SPRING,12MM
461F1200
$0.96
10
BAR R.H REAR FOOTREST
34027-007
Unavailable
11
RUBBER REAR FOOTREST
92076-009
$3.03
12
NUT-HEX-FINE,10MM
314B1000
$0.67
13
WASHER SPRING 10MM
461F1000
$0.67
14
WASHER PLAIN 10MM
410B1000
$0.58
15
STAND-SIDE
34024-016
$71.81
16
DAMPER RUBB SIDE STND
92075-031
$10.21
17
STAND-MAIN
34011-019
$47.34
18
SHAFT MAIN STAND
34019-010
Unavailable
19
SPRING MAIN STAND
34023-005
$10.92
20
DAMPER RUBB-MAIN STND
92075-115
$9.48
21
BOLT HEX HEAD 10X32
113B1032
Unavailable
22
CIRCLIP 15MM
482K0300
$3.64
23
PIN COTTER 2.0X15
550D2015
$1.04
24
PEDAL BRAKE
43001-025
Unavailable
25
WASHER BRAKE PEDAL
92022-085
$3.92
26
SPRING,BRAKE PEDAL
43005-007
Unavailable
27
PIN R BRK CABLE JOINT
92043-034
Unavailable
28
BOLT-UPSET
112G0625
$3.62
29
NUT 6MM
311B0600
$0.93
30
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
31
PIN-COTTER,3.0X20
550D3020
$1.78
32
CABLE REAR BRAKE
54022-005
Unavailable
33
PIN BRAKE ROD
92043-053
Unavailable
34
NUT-BRAKE CABLE ADJST
92015-041
$6.22
39
STAND-MAIN
34011-019
$47.34
