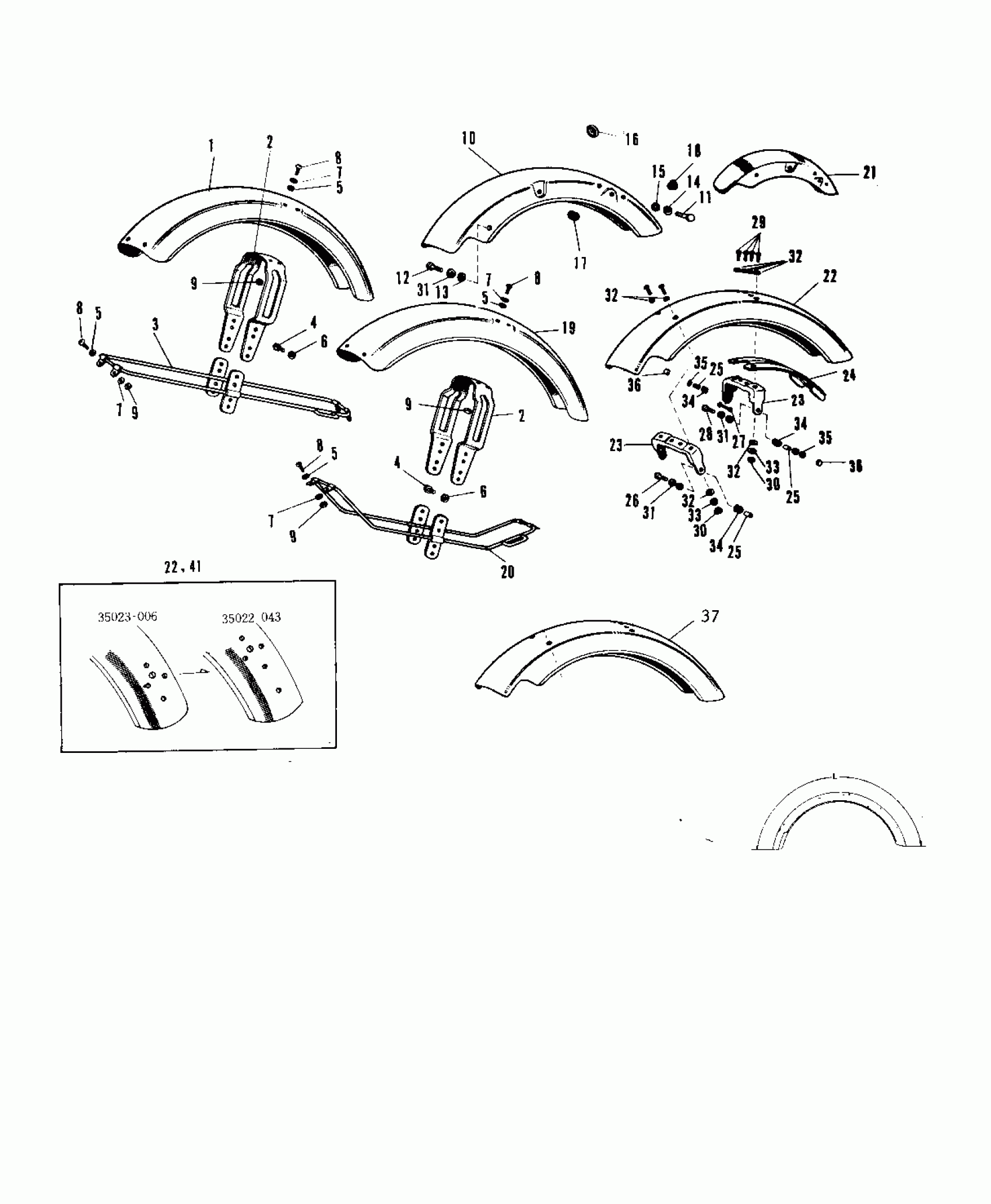

Kawasaki A1-B FENDERS Diagram

#

Description
Price

1

FENDER-FR

35004-029

$177.43

2

BRACE FRONT FENDER

35009-008

Unavailable

3

STAY FRONT FENDER

35011-012

Unavailable

4

BOLT SMALL

114G0812

Unavailable

5

WASHER PLAIN 6MM

411B0600

$2.84

6

WASHER SPRING 8MM

461F0800

$0.40

7

WASHER SPRING 6MM

461F0600

$0.69

8

SCREW PAN HEAD 6X10

220E0610

$3.89

9

NUT 6MM

312B0600

$0.72

10

FENDER-RR

35022-051

$149.65

11

BOLT REAR FENDER FIT

92007-008

Unavailable

11

BOLT REAR FENDER FIT

92007-008

Unavailable

12

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

12

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

13

WASHER PLAIN 8MM

410B0800

$0.93

14

WASHER SPRING 10MM

461F1000

$0.67

15

WASHER PLAIN 10MM

410B1000

$0.58

16

GROMMET,10MM

92071-019

$3.89

17

PLUG RUBBER

92074-005

Unavailable

18

PLUG REAR FENDER RUB

92074-006

$6.83

19

FENDER-FR

35004-025

Unavailable

20

STAY FRONT FENDER

35011-010

Unavailable

22

FENDER-RR

35023-006

Unavailable

23

BRACKET REAR FENDER

35025-011

Unavailable

24

GUSSET REAR FENDER

35034-008

$12.57

25

COLLAR

92027-080

$6.23

26

BOLT HEX HEAD 8X25

116B0825

Unavailable

27

BOLT HEX HEAD 8X28

116B0828

Unavailable

28

BOLT HEX HEAD 8X32

116B0832

$0.39

29

BOLT-UPSET,6X12

112G0612

$1.45

30

NUT 6MM

311B0600

$0.93

31

WASHER SPRING 8MM

461F0800

$0.40

32

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

33

WASHER SPRING 6MM

461F0600

$0.69

34

DAMPER RUBB TANK FRNT

92075-019

Unavailable

35

WASHER,8X26X2.3

92022-1564

$4.31

36

NUT FUEL TANK FRONT

92020-007

Unavailable

37

FENDER-RR

35022-043

$105.85
