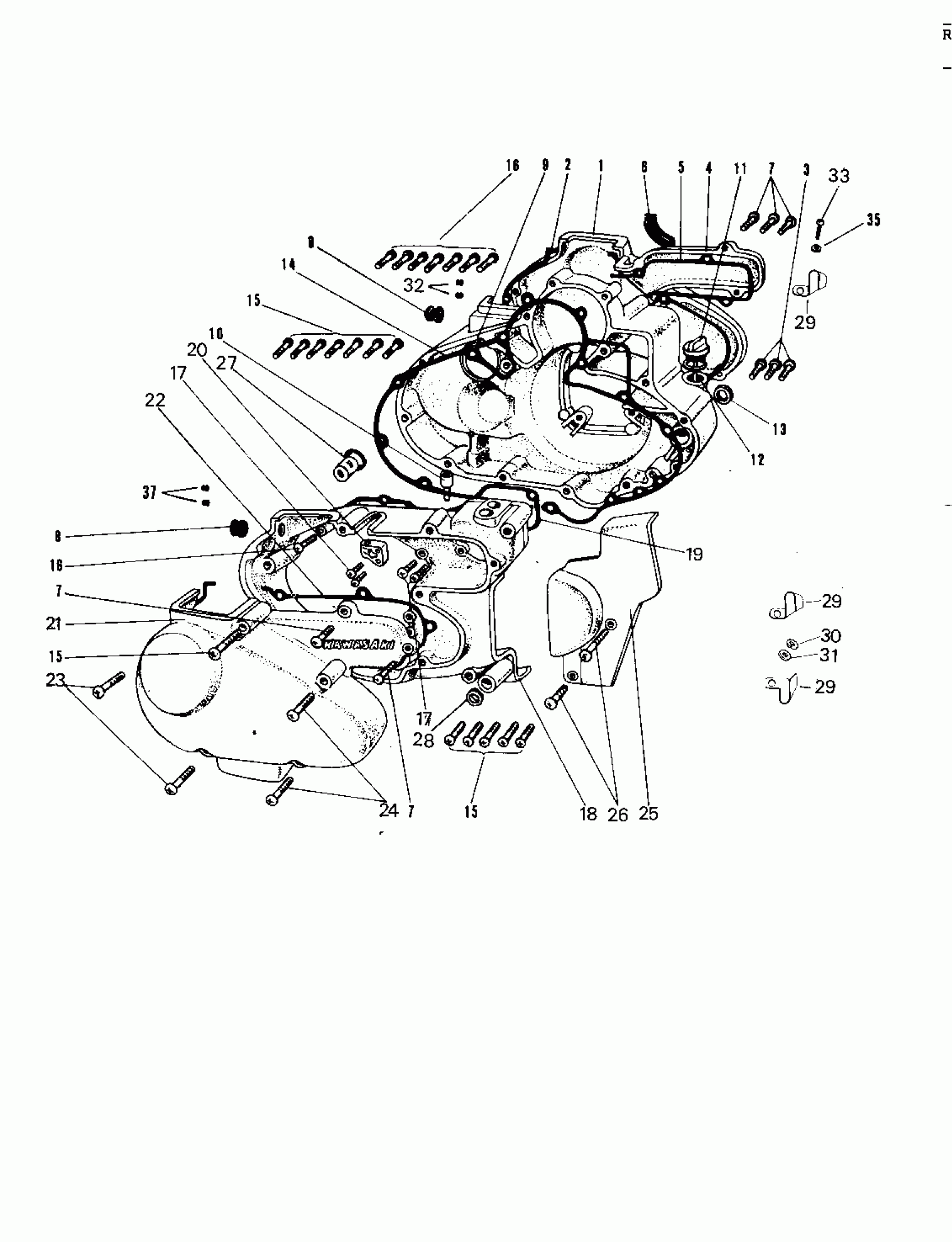

Kawasaki A1-B ENGINE COVERS Diagram
#
Description
Price
1
COVER R.H CARBURETOR
14030-007
Unavailable
2
GASKET R.H CARB COVER
14047-004
Unavailable
3
SCREW OVL CNTSNK 6X25
222B0625
Unavailable
4
CAP R.H ENGINE COVER
14034-001
Unavailable
5
GASKET R.H COV CAP A
14046-010
Unavailable
6
GSKT RH ENG COV CAP B
14016-011
Unavailable
7
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
8
CAP,RUBBER
14039-001
$4.74
9
COVER R.H ENGINE
14032-023
Unavailable
10
PIPE FUEL OVERFLOW
16116-001
Unavailable
11
PLUG OIL FILLER
16115-002
Unavailable
12
O RING,20MM
670B2020
$1.22
13
SEAL-OIL,TB16267
92051-003
Unavailable
14
GASKET R.H ENGINE COV
14046-008
Unavailable
15
SCREW PAN HEAD 6X50
220B0650
$1.25
16
SCREW PAN HEAD 6X40
220B0640
Unavailable
17
SCREW PAN HEAD 6X25
220B0625
$2.60
18
COVER L.H ENGINE
14031-029
Unavailable
19
GASKET L.H ENGINE COV
14045-002
$5.10
20
GUIDE OIL PUMP CABLE
14044-004
$3.73
21
COVER L.H CARBURETOR
14030-010
Unavailable
22
GASKET L.H CARB COVER
14047-006
Unavailable
23
SCREW OVL CNTSNK 6X50
222B0650
$3.93
24
SCREW OVL CNTSNK 6X40
222B0640
$3.33
25
COVER DRIVE CHAIN FR
14026-001
Unavailable
26
SCREW PAN HEAD 6X70
220B0670
$3.84
27
DRAIN AIR
16116-003
Unavailable
28
SEAL-OIL,SB12205
92049-004
$9.58
29
GUIDE OVERFLOW PIPE
16068-001
Unavailable
30
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
32
PLUG RUBBER
92074-016
Unavailable
33
SCREW OVL CNTSNK 6X20
222B0620
Unavailable
