Description

Price

1

PISTON STD

13001-020

Unavailable

2

RING SET STD

13008-015

Unavailable

3

CIRCLIP PISTON PIN

92036-004

$0.65

4

PIN-PISTON

13002-004

Unavailable

5

NEEDLE BEARING SM END

13033-005

Unavailable

6

ROLLER,4X12

610A0412

$5.52

7

NUT,18MM

92015-019

$7.22

8

WASHER,LOCK,18MM

92024-067

Unavailable

9

VALVE ROTARY DISC

12002-007

Unavailable

9

VALVE-ROTARY DISC

12002-020

Unavailable

10

"0" RING,22MM

92055-018

$6.02

11

COLLAR CRANKSHAFT

92027-017

$73.98

11

COLLAR-R.H CRNK SHT

92027-100

$51.00

12

BALL BEARING 6305N

92045-020

Unavailable

13

WOODRUFF KEY

510A5100

$2.70

12,14

CRANK - CONROD ASSY

13036-015

Unavailable

14

BEARING-BALL,#6305C3

601B6305

$25.78

15

WASHER SIDE

92026-024

$29.22

16

CONNECTING ROD SET

13044-006

Unavailable

17

CRANKSHAFT L.H

13037-022

Unavailable

18

CRANK WEB CENTER

13040-001

Unavailable

19

CRANKSHAFT CENTER

13039-001

Unavailable

20

CRANKSHAFT R.H

13038-016

Unavailable

21

COLLAR CRANK OIL SEAL

92027-031

$31.08

22

OIL SEAL CRANKSHAFT

92056-001

Unavailable

23

COLLER L.H CRANK SHT

92027-032

$15.23

23

COLLAR-L.H CRNK SHT

92027-099

$25.93

24

O RING,16MM

670B2016

$1.36

25

WASHER LOCK 8MM

92024-007

Unavailable

26

WASHER SPRING 8MM

461F0800

$0.40

27

BOLT HEX HEAD 8X35

92001-030

$1.89

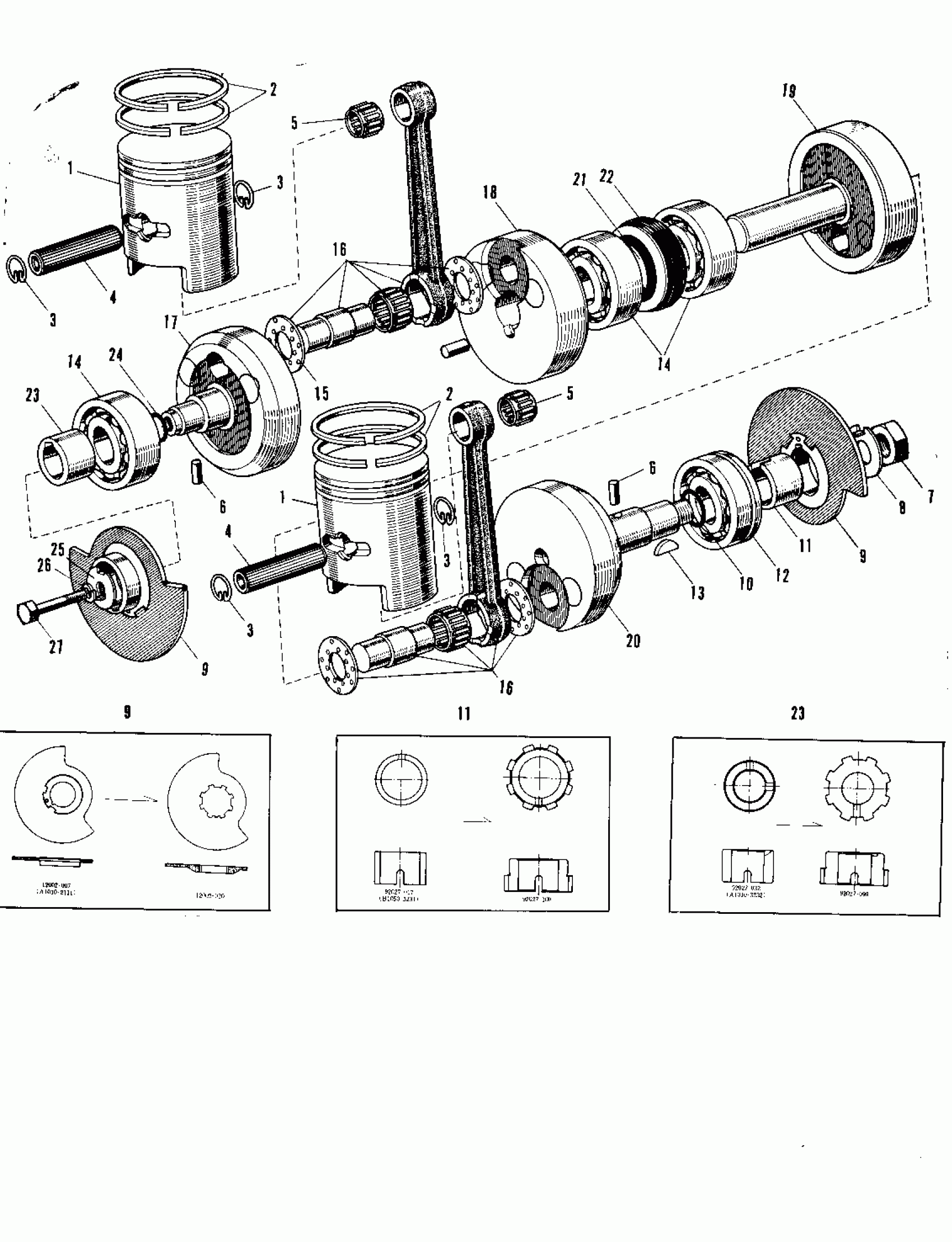

Kawasaki A1-B CRANKSHAFT/PISTONS A1/A1SS Diagram

PISTON STD

RING SET STD

CIRCLIP PISTON PIN

PIN-PISTON

NEEDLE BEARING SM END

ROLLER,4X12

NUT,18MM

WASHER,LOCK,18MM

VALVE ROTARY DISC

VALVE-ROTARY DISC

"0" RING,22MM

COLLAR CRANKSHAFT

COLLAR-R.H CRNK SHT

BALL BEARING 6305N

WOODRUFF KEY

CRANK - CONROD ASSY

BEARING-BALL,#6305C3

WASHER SIDE

CONNECTING ROD SET

CRANKSHAFT L.H

CRANK WEB CENTER

CRANKSHAFT CENTER

CRANKSHAFT R.H

COLLAR CRANK OIL SEAL

OIL SEAL CRANKSHAFT

COLLER L.H CRANK SHT

COLLAR-L.H CRNK SHT

O RING,16MM

WASHER LOCK 8MM

WASHER SPRING 8MM

BOLT HEX HEAD 8X35
