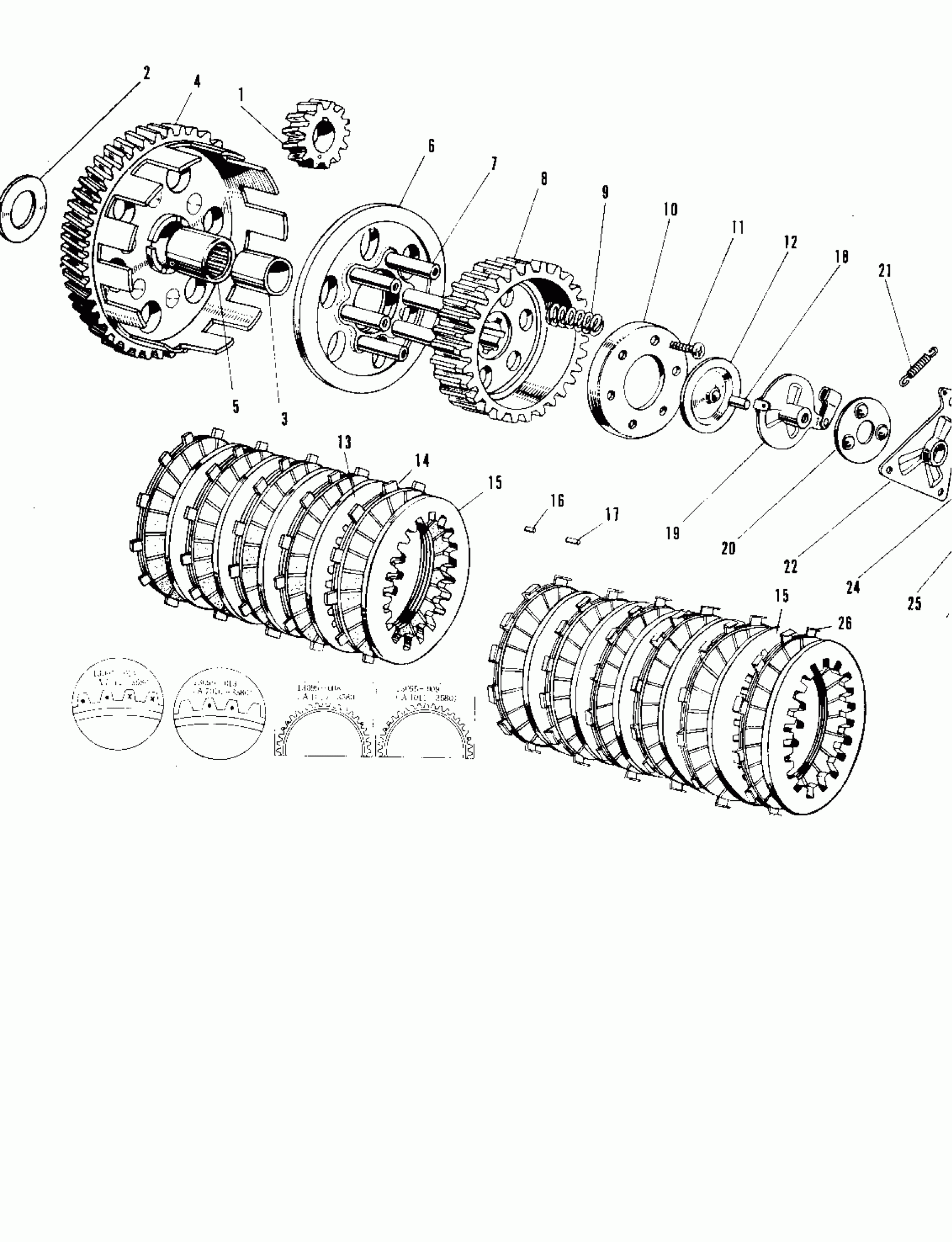

Kawasaki A1-B CLUTCH Diagram
#
Description
Price
1
PINION PRIMARY
13121-009
Unavailable
2
SPACER,25.5X47X2.5
92026-022
$9.91
3
BUSH CLUTCH
92028-045
Unavailable
4~17 4
CLUTCH-ASSY
13082-011
Unavailable
4
HOUSING CLUTCH
13095-014
Unavailable
5
BEARING NEEDLE
92046-004
Unavailable
6
BASE CLUTCH
13086-011
Unavailable
7
STUD CLUTCH BASE
92004-009
$1.81
8
HUB CLUTCH
13087-019
Unavailable
9
SPRING CLUTCH
92081-023
Unavailable
10
PLATE CLUTCH SPRING
13091-005
Unavailable
11
SCREW-PAN-CROS,6X16
220B0616
$2.84
12
PUSHER CLUTCH SPRING
13113-004
Unavailable
13
PLATE CLUTCH STEEL
13089-007
Unavailable
14
PLATE CLUTCH FRICTION
13088-008
Unavailable
15
PLATE CLUTCH OUTER
13090-006
Unavailable
16
RUBBER RETURN SHORT
13093-001
Unavailable
17
RUBBER RETURN LONG
13093-004
Unavailable
18
PIN DOWEL 7X10
610A0710
$4.02
19
PLATE CLUTCH RELEASE
13102-006
Unavailable
20
THRUST BALL ASSY CLTH
13110-003
Unavailable
21
SPRING GEAR CHNG LEV
92083-011
$4.09
22
PLATE CLTH RELESE CAM
13119-003
Unavailable
23
SCREW PAN HEAD 6X12
220B0612
Unavailable
24
SCREW SLOTTED
291Z0622
$5.93
25
NUT 6MM
312B0600
$0.72
