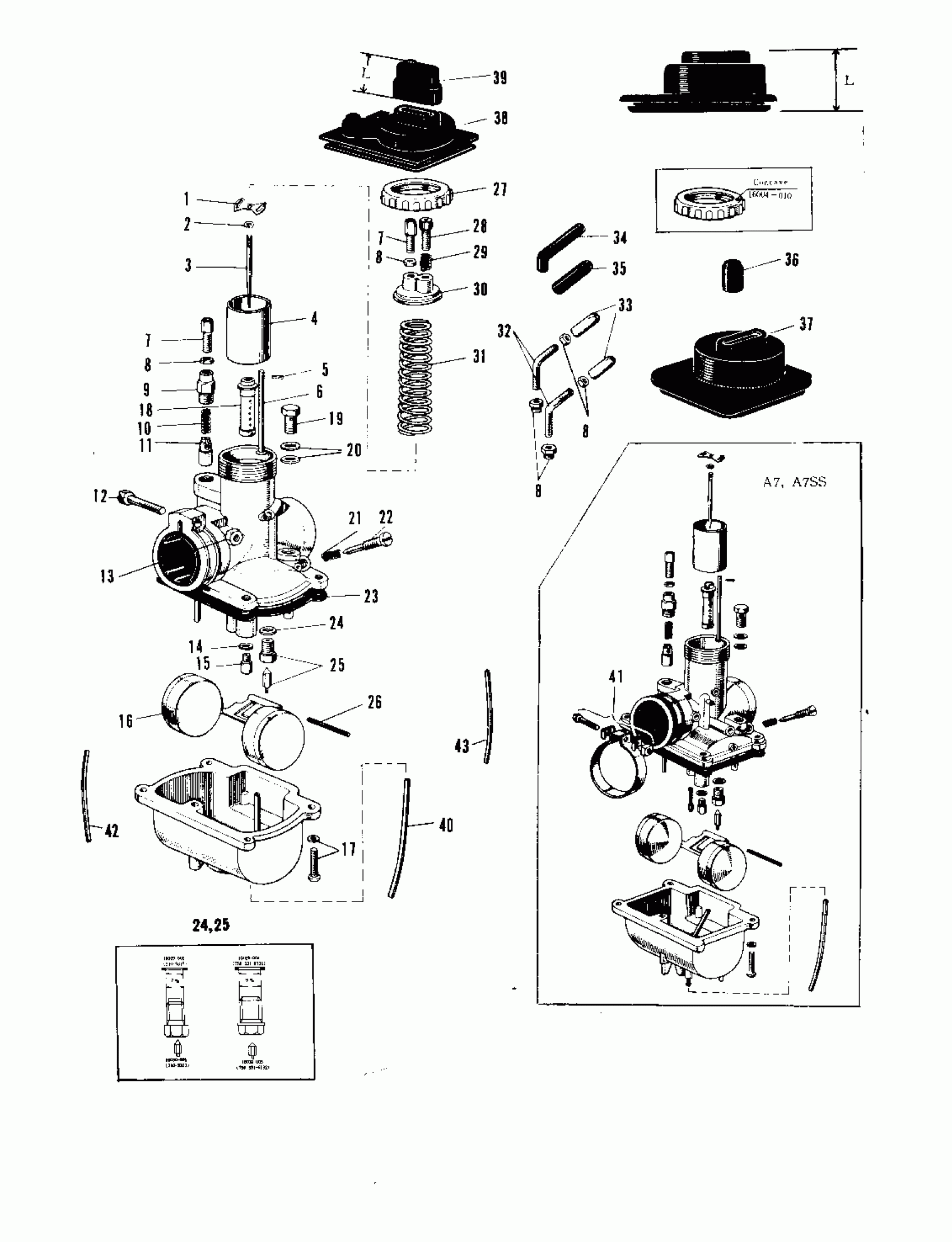

Kawasaki A1-B CARBURETOR VM22SC, VM28SC Diagram

#

Description
Price

1~31

CARBURETOR ASSY R.H

16001-096

$112.05

1~31

CARBURETOR ASSY L.H

16001-097

$138.60

1

SPRING SEAT THRTL VL

16007-002

$13.50

2

CLAMP,E-TYPE

16008-010

$9.21

3

JET NEEDLE 4J13

16009-012

Unavailable

4

VALVE THROTTLE

16025-011

$29.37

5

UNAVAILABLE IN PRICE BOOK

16023-001

$2.46

6

ROD THROTTLE VLV STOP

16024-002

$7.33

7

CABLE ADJUSTER

16002-002

$11.83

8

NUT,CABLE ADJUST LOCK

16003-004

$7.34

9

CAP STARTER PLUNGER

16012-004

$11.80

10

SPRING,STARTER PLUNGER

16013-005

$7.64

11

PLUNGER,STARTER

16016-002

$31.85

12

SCREW,CLAMP

16010-004

$5.57

13

NUT 6MM

311B0600

Unavailable

13

NUT 6MM

311B0600

$0.93

14

WASHER,MAIN JET

16034-001

$4.31

15

JET-MAIN NO 140A

92063-015

Unavailable

16

FLOAT

16031-004

Unavailable

17

SCREW FLOAT CHAMBER

16033-009

$0.68

18

NEEDLE JET 0-6

16017-026

$21.12

19

BOLT BANJO

92001-014

Unavailable

20

GASKET 8MM

751P0800

$1.96

21

SPRING,THROTTLE ADJST

16022-010

Unavailable

22

SCREW PILOT AIR ADJST

16014-003

Unavailable

23

GASKET FLOAT CHAMBER

16019-004

$22.36

24

GASKET,FLOAT VALVE SEAT

16029-002

$4.46

24

WASHER FLOAT VLV SEAT

16029-004

$3.89

25

VALVE-FLOAT,#2.0

16030-001

$56.16

25

VALVE-FLOAT,2.5

16030-005

$58.86

26

PIN,FLOAT

16032-003

$6.57

27

CAP-CHAMBER,MIXING

16004-010

$20.59

28

SCREW-THROTTLE STOP

16021-002

$18.22

29

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

30

TOP-CHAMBER,MIXING

16005-005

$20.79

31

SPRING,THROTTLE VALVE

16006-013

$15.02

32

CABLE GUIDE

16077-001

$9.02

33

CABLE ADJUSTER

16002-004

Unavailable

34

CAP CABLE ADJUSTER A

16036-002

Unavailable

35

CAP CABLE ADJUSTER B

16036-003

Unavailable

36

CAP THROTTLE ADJUSTER

16037-002

Unavailable

37

CAP L.H CARBURETOR

14038-009

$5.80

38

CAP CARBURETOR

14038-008

Unavailable

39

GROMMET CARB CAP

14038-006

$9.39

40

PIPE FUEL OVERFLOW

92059-031

Unavailable

42

PIPE AIR VENT A

92059-040

Unavailable

43

PIPE AIR VENT B

92059-044

$2.98
