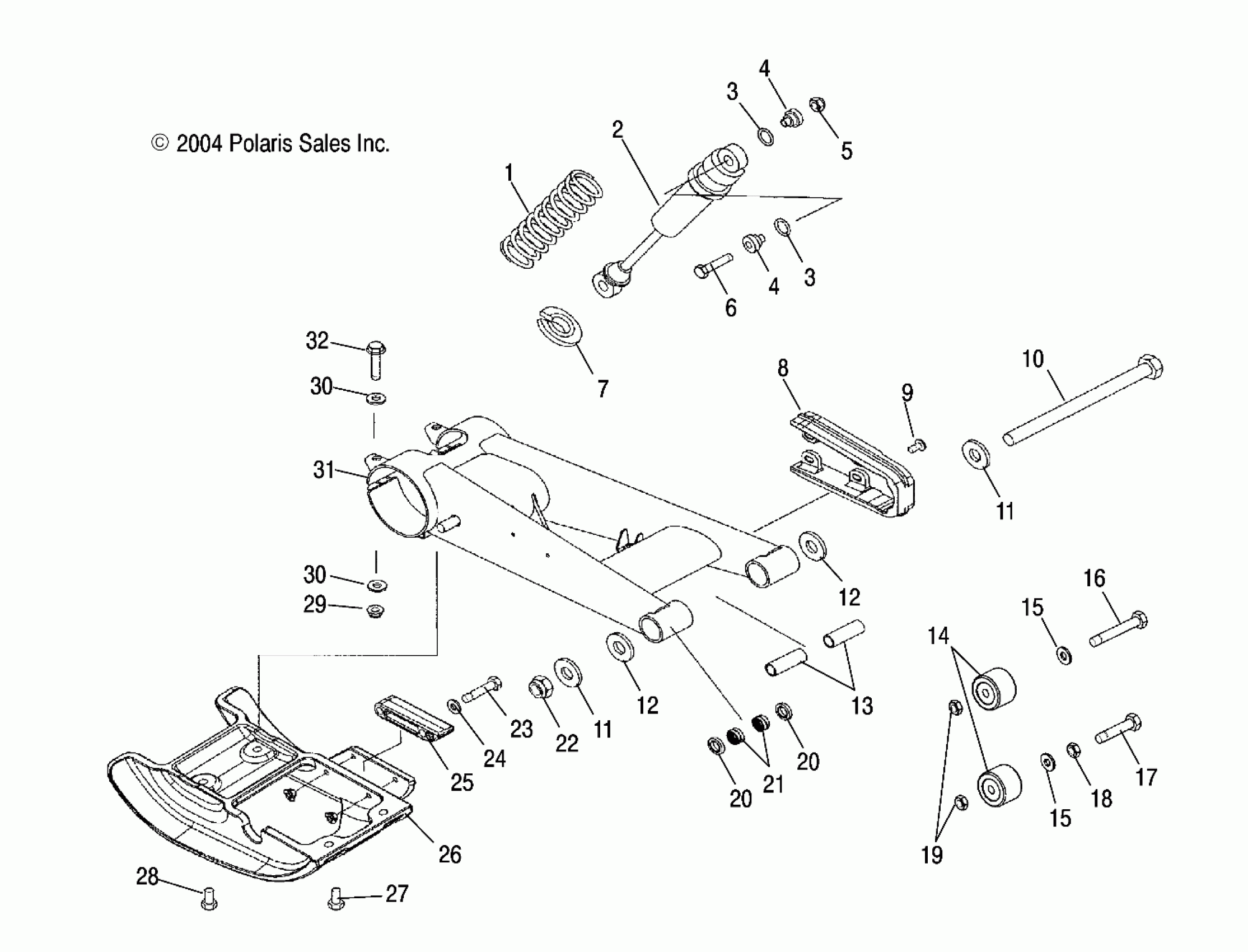

Polaris A05GJ50AA PREDATOR 500 - A05GJ50AA/AB/AC SWING ARM - A05GJ50AA/AB/AC (4995119511B08) Diagram

#

Description
Price

1

Spring, Compression, Red [AA](AC)

7043093-293

Unavailable

1

Spring, Compression, Cosmic Sun [AB]

7043093-446

$45.39

2

SHOCK, REMOTE RESERVOIR [SEE REAR SHOCK PG. C3 FOR DETAILS]

-------

Unavailable

3

O-RING

5412290

$2.02

3

O-RING

5412290

$2.02

4

Reducer, Bushing

5334195

$8.79

4

Reducer, Bushing

5334195

$8.79

5

NUT, NYLON

7547066

$1.59

6

BOLT

7518207

$23.99

7

RETAINER, SPRING [SEE REAR SHOCK PG. C3, REF. 28]

-------

Unavailable

8

Slide, Chain

5435676-070

$40.46

9

Screw

7518196

$1.49

10

BOLT, SWING ARM [SEE ENGINE MOUNTING PG. A13, REF. 5]

-------

Unavailable

11

WASHER [SEE ENGINE MOUNTING PG. A13, REF. 4]

-------

Unavailable

11

WASHER [SEE ENGINE MOUNTING PG. A13, REF. 4]

-------

Unavailable

12

Bushing, Thrust Washer

5434754

Unavailable

12

Bushing, Thrust Washer

5434754

Unavailable

13

Spacer, Swing Arm

5133796

Unavailable

14

Asm., Roller, Chain

1590360

Unavailable

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

Bolt [Upper]

7515345

$5.59

17

Bolt [Lower]

7517877

$5.59

18

Nut

7547107

$3.99

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

Seal

3610104

Unavailable

20

Seal

3610104

Unavailable

21

Bearing, Needle

3514653

$11.99

22

NUT, LOCK [SEE ENGINE MOUNTING PG. A13, REF. 24]

-------

Unavailable

23

Bolt

7510006

$30.79

24

Washer, Flat

7558301

$1.49

25

Guide, Chain

5435411

$31.99

26

T-Nut

7547277

Unavailable

26

Asm., Guard, Swing Arm

1542101

Unavailable

27

SCREW

7518181

$5.59

28

Screw

7518179

$3.99

29

Nut, Nylok

7542439

$1.49

30

WSHR-.813X.406X.105-Y

7555832

$2.39

30

WSHR-.813X.406X.105-Y

7555832

$2.39

31

Asm., Swing Arm, Silver [Incl. 13,20,21]

1542023-385

$379.99

32

SCREW

7515417

$4.79
