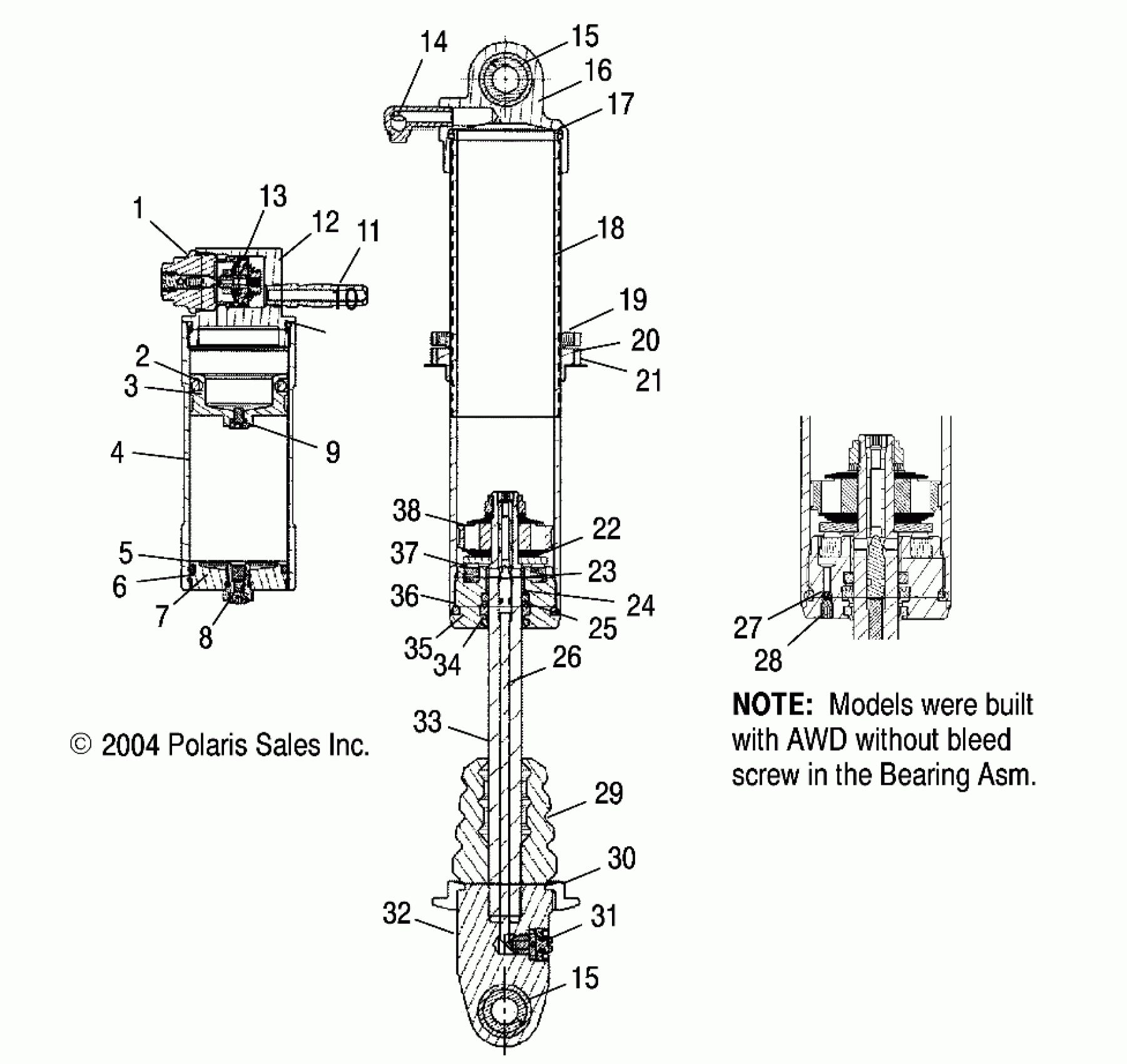

Polaris A05GJ50AA PREDATOR 500 - A05GJ50AA/AB/AC REAR SHOCK - A05GJ50AA/AB/AC (4995119511C03) Diagram

#

Description
Price

-

Shock, Remote Reservoir, Steel [AA]

7043087

Unavailable

-

Shock, Remote Reservoir, Alum. [AB](AC)

7043089

Unavailable

1

Asm., Cartridge, Single Adj.

1500617

Unavailable

2

O-Ring

1500208

$7.98

3

Piston, Floating

1500515

$37.54

4

Reservoir

1500614

$163.49

5

O-Ring

1500228

Unavailable

6

RING, RETAINING

1500236

$9.52

7

Asm., Reservoir, End Cap

1500589

Unavailable

8

Asm., Air Valve

1500014

Unavailable

8

Screw

1500019

$6.35

9

SCREW W/O-RING

1500161

$44.99

11

Hose

1500533

Unavailable

12

Housing, CD

1500618

$130.95

13

Piston, Concentric Adj.

1500616

$21.79

14

Fitting

1500107

$39.29

15

Bearing

1500524

$43.65

15

Ring, Snap

1500523

$6.19

15

Bearing

1500524

$43.65

15

Ring, Snap

1500523

$6.19

16

Asm., Body Cap

1500595

$111.11

17

O-RING

1500510

$6.46

18

Body [AB](AC)

1500625

$139.68

18

Body [AA]

1500626

Unavailable

19

Ring, Preload, Jam Nut

1500576

$22.06

20

Ring, Preload

1500575

$27.94

21

Washer, Flat

7556312

$1.81

22

PLATE, BACK-UP

1500516

$8.08

23

Retainer, Spring

1500630

Unavailable

23

O-Ring

1500631

$2.46

24

O-Ring

1500579

Unavailable

25

U-Cup

1500256

$19.99

26

Rod

1500613

$38.41

27

Ball

1500071

$6.76

28

Screw

1500070

$6.35

29

BUMPER

1500577

$33.24

30

RETAINER, SPRING

1500597

$59.52

31

Retainer, RD Adjust

1500640

$26.03

31

Spring

1500637

$2.94

31

O-Ring

1500639

Unavailable

31

Knob

1500641

$40.48

31

Ball

1500638

$1.83

31

Screw

1500642

$22.99

32

Eyelet

1500619

$172.22

33

Shaft

1500612

$89.68

34

Wiper

1500257

Unavailable

35

Asm., Bearing

1500578

$75.40

36

O-Ring

1500228

Unavailable

37

Bumper, Top Out

1500298

$12.30

38

Piston

1500615

$53.17
