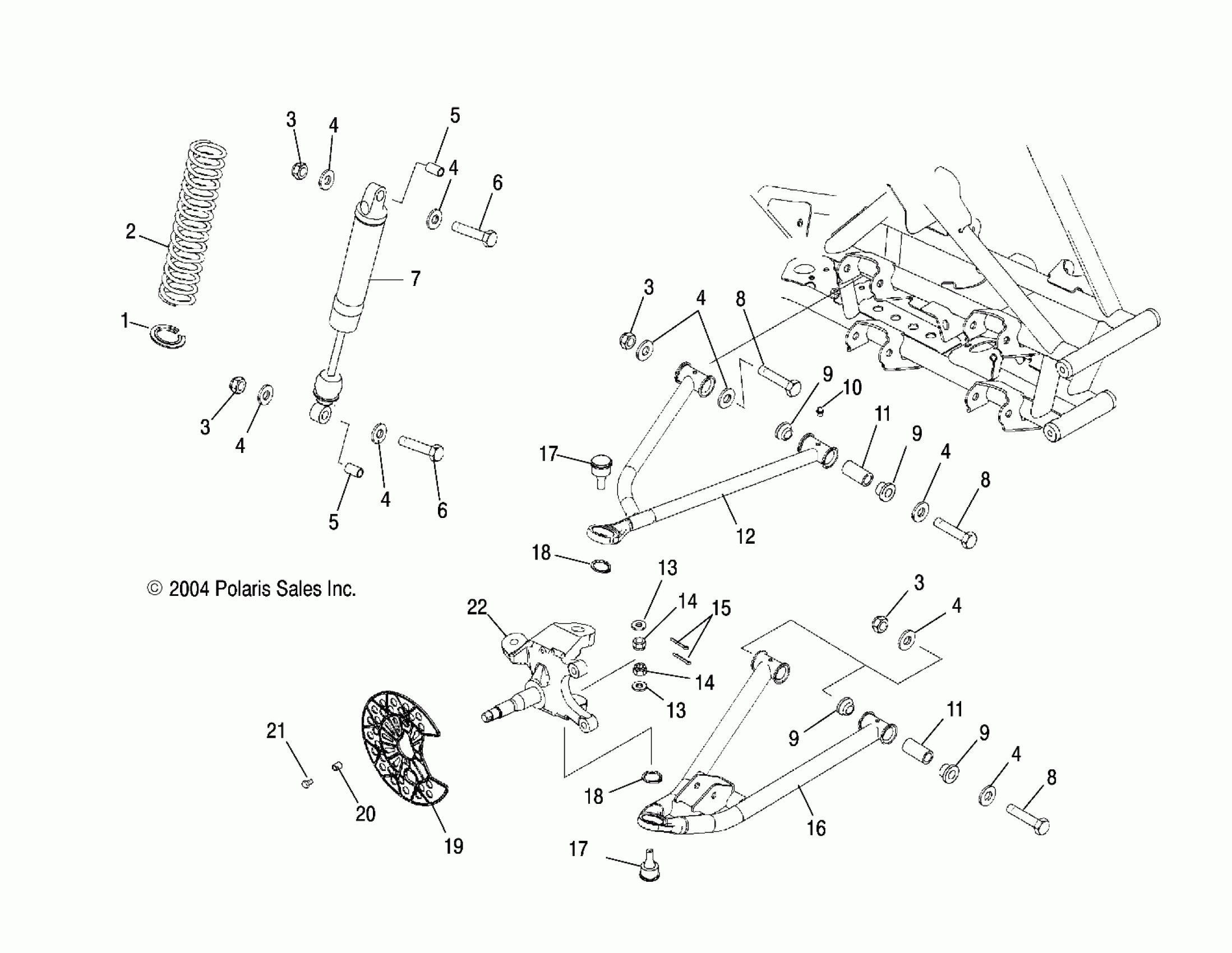

Polaris A05GJ50AA PREDATOR 500 - A05GJ50AA/AB/AC FRONT SUSPENSION - A05GJ50AA/AB/AC (4995119511B04) Diagram

#

Description
Price

1

Retainer, Spring, Slotted

5630580

Unavailable

2

Spring, Compression, Red [AA](If built before 9/24/04)

7043092-293

$48.39

2

Spring, Compression, Red [AA](If built after 9/24/04)(AC)

7043137-293

$48.39

2

Spring, Compression, Cosmic Sunburst [AB](If built before 9/24/04)

7043092-446

$48.39

2

Spring, Compression, Cosmic Sunburst [AB](If built after 9/24/04)

7043137-446

$48.39

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

Sleeve

5334149

Unavailable

5

Sleeve

5334149

Unavailable

6

Screw

7515415

$1.49

6

Screw

7515415

$1.49

7

SHOCK, IFP, FRONT [SEE FRONT SHOCK PG. C1 FOR DETAILS]

-------

Unavailable

8

Screw

7515406

$7.19

8

Screw

7515406

$7.19

8

Screw

7515406

$7.19

9

Bushing, A-Arm

5434575

$10.39

9

Bushing, A-Arm

5434575

$10.39

9

Bushing, A-Arm

5434575

$10.39

9

Bushing, A-Arm

5434575

$10.39

10

Fitting, Lubrication

7080433

$1.49

11

Shaft, A-Arm

5133406

$12.99

11

Shaft, A-Arm

5133406

$12.99

12

A-Arm, Upper, LH, Silver

1014612-385

$369.99

12

A-Arm, Upper, RH, Silver

1014613-385

Unavailable

13

Washer

7555928

Unavailable

13

Washer

7555928

Unavailable

14

Nut, Castle

7542523

Unavailable

14

Nut, Castle

7542523

Unavailable

15

Pin, Cotter

7661205

$1.49

16

A-Arm, Lower, LH, Silver

1013799-385

$304.99

16

A-Arm, Lower, RH, Silver

1013801-385

Unavailable

17

Joint, Ball

7081190

$48.40

17

Joint, Ball

7081190

$48.40

18

RING, RETAINER

7710533

$2.39

18

RING, RETAINER

7710533

$2.39

19

Guard, Disk, Inner

5435727

Unavailable

20

Bushing [If built before 9/15/04]

5334653

Unavailable

21

Screw [If built after 9/15/04]

7518441

$6.99

21

Screw [If built before 9/15/04]

7518426

Unavailable

22

Asm., Knuckle, Steering, RH

1822644

Unavailable

22

Asm., Knuckle, Steering, LH

1822643

Unavailable
