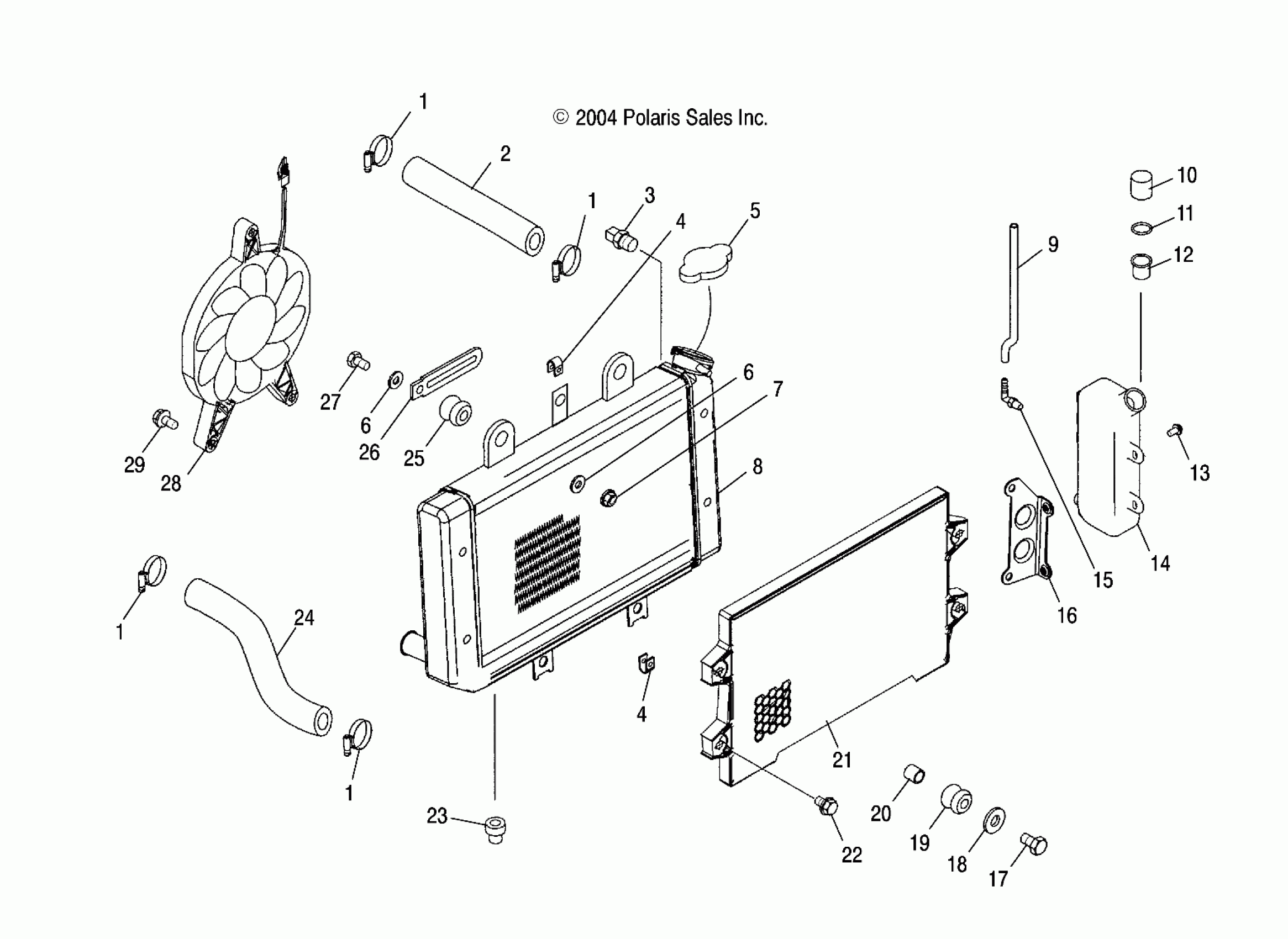

Polaris A05GJ50AA PREDATOR 500 - A05GJ50AA/AB/AC COOLING - A05GJ50AA/AB/AC (4995119511A11) Diagram

#

Description
Price

1

CLAMP, HOSE

7080614

$7.19

1

CLAMP, HOSE

7080614

$7.19

1

CLAMP, HOSE

7080614

$7.19

1

CLAMP, HOSE

7080614

$7.19

2

Hose, Water

8450050-28

Unavailable

3

SENSOR, THERMAL HARNESS

4010808

$87.99

4

U-Clip

7547197

$6.23

4

U-Clip

7547197

$6.23

5

Cap, Pressure

1240093

Unavailable

6

Washer, Flat

7558301

$1.49

6

Washer, Flat

7558301

$1.49

7

Nut, Nylok

7542122

$1.49

8

Radiator

1240130

$393.89

9

Line, Fuel

8450003-1525

Unavailable

10

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

11

GASKET-OVERFLOW CAP

5810279

$2.41

12

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

13

Screw

7512084

$1.49

14

Tank, Surge

5434856

$47.99

15

Fitting

7052065

$7.19

16

Bracket, Surge Tank

5247340

$9.91

17

Screw

7517510

$4.79

18

Washer, Flat

7558301

$1.49

19

Grommet

5410437

$2.39

20

Spacer

5333796

$19.99

21

Screen, Radiator

5435881

$70.39

22

Screw w/Washer

7547220

$5.99

23

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

24

Hose, Radiator, Formed

5412678

$25.59

25

ASM., GROMMET AND INSERT

5411975

$3.19

26

Retainer

7080654

$18.32

27

Bolt

7512163

$3.99

28

Asm., Fan and Motor

2520272

$304.75

29

Bolt

7517975

$5.59
