Description

Price

1

Washer

3088096

Unavailable

1

Washer

3088096

Unavailable

2

Collar [AA]

3088104

Unavailable

2

Collar [AB]

3089706

$26.23

3

Gear, 1st Driven [AA][AC]

3089631

Unavailable

3

Gear, 1st Driven [AB]

3089701

$64.79

4

Gear, 5th Driven [AA][AC]

3089635

Unavailable

4

Gear, 5th Driven [AB]

3089705

$64.79

5

Clip

3088093

Unavailable

6

Washer, Spline

3088091

$1.49

7

Collar

3089636

$26.23

8

Shaft, Reverse [Incl. 9,10,11,12]

3089665

$124.99

9

Pin, Dowel

3088191

Unavailable

10

Collar

3089668

$22.79

11

Gear, Reverse Idle

3089667

$89.03

12

Washer

3089666

$5.56

13

Gear, Reverse, Driven [AA][AC]

3089652

$79.99

13

Gear, Reverse, Driven [AB]

3089711

Unavailable

14

Washer

3089637

Unavailable

14

Washer

3089637

Unavailable

14

Washer

3089637

Unavailable

15

Washer

3089672

Unavailable

16

Spring, Reverse Arm

3089670

Unavailable

17

BOLT, FLANGE

3088135

Unavailable

18

Lever, Reverse Arm

3089671

Unavailable

19

Ring, Snap

3088033

$1.49

20

Arm, Reverse

3089669

$103.19

21

Collar [AA]

3088106

Unavailable

21

Collar [AB]

3089712

$20.23

22

Asm., Counter Shaft [Incl. 1-7,14,23,24,28][AA][AC]

3089629

Unavailable

22

Shaft, Counter [AA][AC]

3089630

Unavailable

22

Shaft, Counter [AB]

3089700

Unavailable

22

Asm., Counter Shaft [Incl. 1-7,14,23,24,28][AB]

3089699

$349.99

23

Gear, 4th Driven [AA][AC]

3089634

Unavailable

23

Gear, 4th Driven [AB]

3089704

Unavailable

24

Gear, 2nd Driven [AA][AC]

3089632

$80.99

24

Gear, 2nd Driven [AB]

3089702

Unavailable

25

Collar

3089653

$24.60

26

Washer

3088092

$7.03

27

Washer, Lock

3088095

Unavailable

28

Gear, 3rd Driven [AA][AC]

3089633

Unavailable

28

Gear, 3rd Driven [AB]

3089703

Unavailable

29

Asm., Main Shaft [Incl. 14,31-38][AA][AC]

3089622

Unavailable

29

Shaft, Main [AA][AC]

3089623

Unavailable

29

Shaft, Main [AB]

3089689

Unavailable

29

Asm., Main Shaft [Incl. 14,31-38][AB]

3089688

$331.99

30

Washer [AA][AC]

3088094

$5.99

30

Washer [AB]

3089698

$21.83

31

Collar [AA][AC]

3088106

Unavailable

31

Collar [AB]

3089694

Unavailable

32

Gear, 5th Drive [AA][AC]

3089626

$71.83

32

Gear, 5th Drive [AB]

3089692

Unavailable

33

Washer, Spline [AA][AC]

3088091

$1.49

33

Washer, Spline [AB]

3089695

$5.56

34

Clip [AA][AC]

3088093

Unavailable

34

Clip [AB]

3089697

$3.03

35

Gear, 2nd, 3rd Drive [AA][AC]

3089624

Unavailable

35

Gear, 2nd, 3rd Drive [AB]

3089690

Unavailable

36

Washer [AA][AC]

3089628

$7.99

36

Washer [AB]

3089696

Unavailable

36

Washer [AA][AC]

3089628

$7.99

36

Washer [AB]

3089696

Unavailable

37

Collar [AA][AC]

3089627

$21.83

37

Collar [AB]

3089693

$23.81

38

Gear, 4th Drive [AA][AC]

3089625

Unavailable

38

Gear, 4th Drive [AB]

3089691

Unavailable

39

Gear, Reverse, Drive [AA][AC]

3089651

$58.99

39

Gear, Reverse, Drive [AB]

3089710

$47.99

40

Shaft, Fork

3089650

$26.98

41

Fork, Shift, Right

3089645

Unavailable

42

Fork, Shift, Left [AA][AC]

3089644

Unavailable

42

Fork, Shift, Left [AB]

3089709

Unavailable

43

Spring, Forkshaft

3089662

$4.03

44

Shaft, Fork

3089646

$11.99

45

Fork, Shift, Main [AA][AC]

3089643

$86.51

45

Fork, Shift, Main [AB]

3089708

Unavailable

46

Point, Neutral

3088115

Unavailable

47

Asm., Screw and Washer

3083783

$2.39

48

Asm., Switch, Position [Incl. 49]

3089647

Unavailable

49

O-Ring

3088123

$2.15

50

Spring, Point

3088116

Unavailable

51

Asm., Drum, Shift [Incl. 52][AA][AC]

3089638

Unavailable

51

Asm., Drum, Shift [Incl. 52][AB]

3089707

Unavailable

52

Pin, Dowel

3088191

Unavailable

53

Spring, Stopper

3089641

$12.39

54

Asm., Arm, Stopper

3089640

$38.71

55

Bolt, Stopper

3088117

$3.03

56

Cam, Shift

3089639

$81.75

57

Pin, Shifter

3089642

$15.03

58

Plate, Guide

3089660

$19.84

59

Bolt, Flange

3089661

$1.49

60

Spring, Plunger

3089659

$1.49

60

Spring, Plunger

3089659

$1.49

61

Shifter, Drum

3089654

$128.99

62

Collar, Shifter

3089655

Unavailable

63

Plunger, Pawl

3089658

$10.71

63

Plunger, Pawl

3089658

$10.71

64

Pawl, Ratcher A

3089656

$15.56

65

Pawl, Ratcher B

3089657

$15.67

66

Spring, Return

3089649

$6.63

67

Washer

3089664

$5.43

68

Ring, Snap

3089663

$7.99

69

Asm., Shaft, Shift

3089648

Unavailable

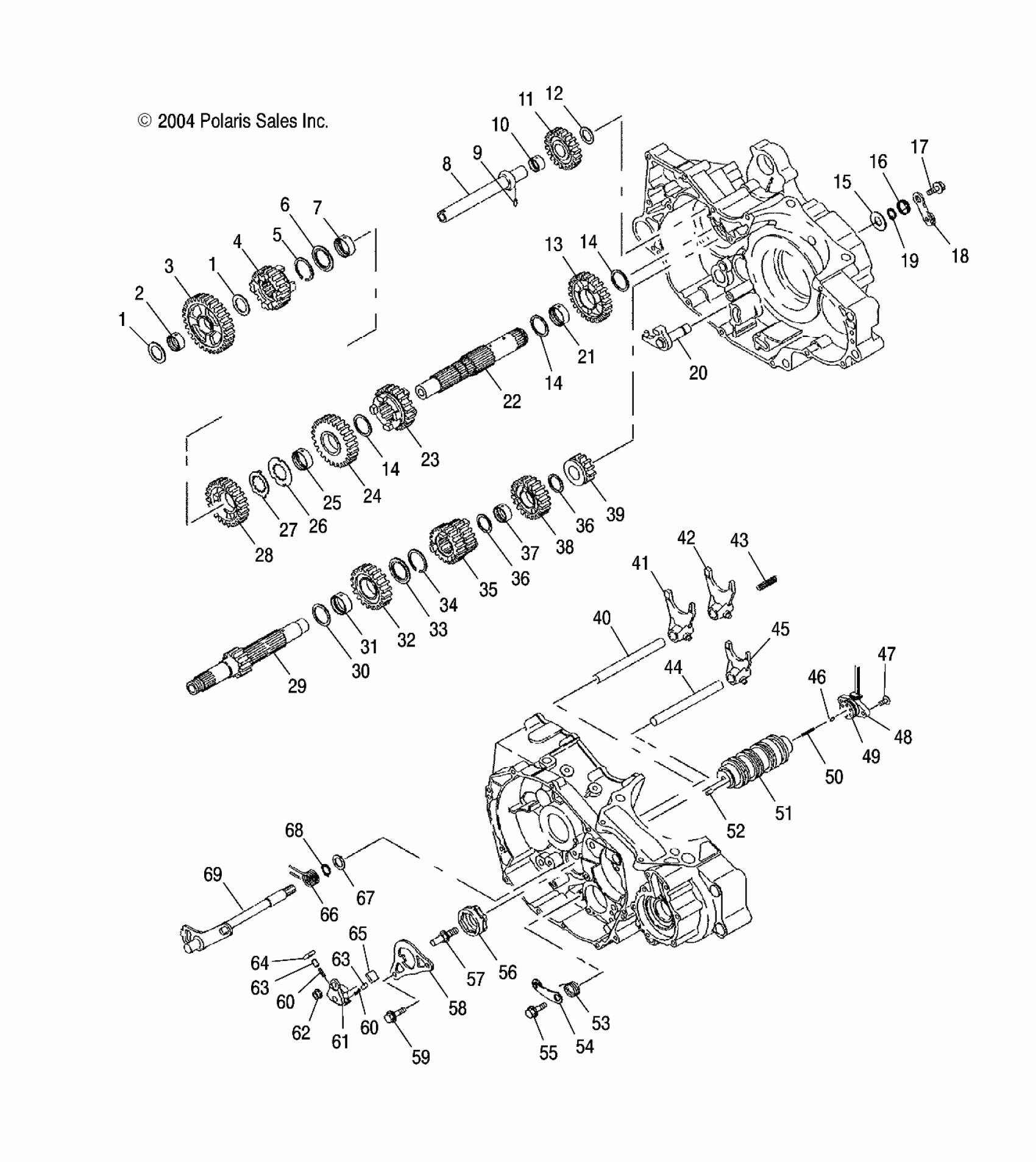

Polaris A05GJ50AA PREDATOR 500 - A05GJ50AA/AB/AC CLUTCH - A05GJ50AA/AB/AC (4995119511D05) Diagram

Washer

Washer

Collar [AA]

Collar [AB]

Gear, 1st Driven [AA][AC]

Gear, 1st Driven [AB]

Gear, 5th Driven [AA][AC]

Gear, 5th Driven [AB]

Clip

Washer, Spline

Collar

Shaft, Reverse [Incl. 9,10,11,12]

Pin, Dowel

Collar

Gear, Reverse Idle

Washer

Gear, Reverse, Driven [AA][AC]

Gear, Reverse, Driven [AB]

Washer

Washer

Washer

Washer

Spring, Reverse Arm

BOLT, FLANGE

Lever, Reverse Arm

Ring, Snap

Arm, Reverse

Collar [AA]

Collar [AB]

Asm., Counter Shaft [Incl. 1-7,14,23,24,28][AA][AC]

Shaft, Counter [AA][AC]

Shaft, Counter [AB]

Asm., Counter Shaft [Incl. 1-7,14,23,24,28][AB]

Gear, 4th Driven [AA][AC]

Gear, 4th Driven [AB]

Gear, 2nd Driven [AA][AC]

Gear, 2nd Driven [AB]

Collar

Washer

Washer, Lock

Gear, 3rd Driven [AA][AC]

Gear, 3rd Driven [AB]

Asm., Main Shaft [Incl. 14,31-38][AA][AC]

Shaft, Main [AA][AC]

Shaft, Main [AB]

Asm., Main Shaft [Incl. 14,31-38][AB]

Washer [AA][AC]

Washer [AB]

Collar [AA][AC]

Collar [AB]

Gear, 5th Drive [AA][AC]

Gear, 5th Drive [AB]

Washer, Spline [AA][AC]

Washer, Spline [AB]

Clip [AA][AC]

Clip [AB]

Gear, 2nd, 3rd Drive [AA][AC]

Gear, 2nd, 3rd Drive [AB]

Washer [AA][AC]

Washer [AB]

Washer [AA][AC]

Washer [AB]

Collar [AA][AC]

Collar [AB]

Gear, 4th Drive [AA][AC]

Gear, 4th Drive [AB]

Gear, Reverse, Drive [AA][AC]

Gear, Reverse, Drive [AB]

Shaft, Fork

Fork, Shift, Right

Fork, Shift, Left [AA][AC]

Fork, Shift, Left [AB]

Spring, Forkshaft

Shaft, Fork

Fork, Shift, Main [AA][AC]

Fork, Shift, Main [AB]

Point, Neutral

Asm., Screw and Washer

Asm., Switch, Position [Incl. 49]
