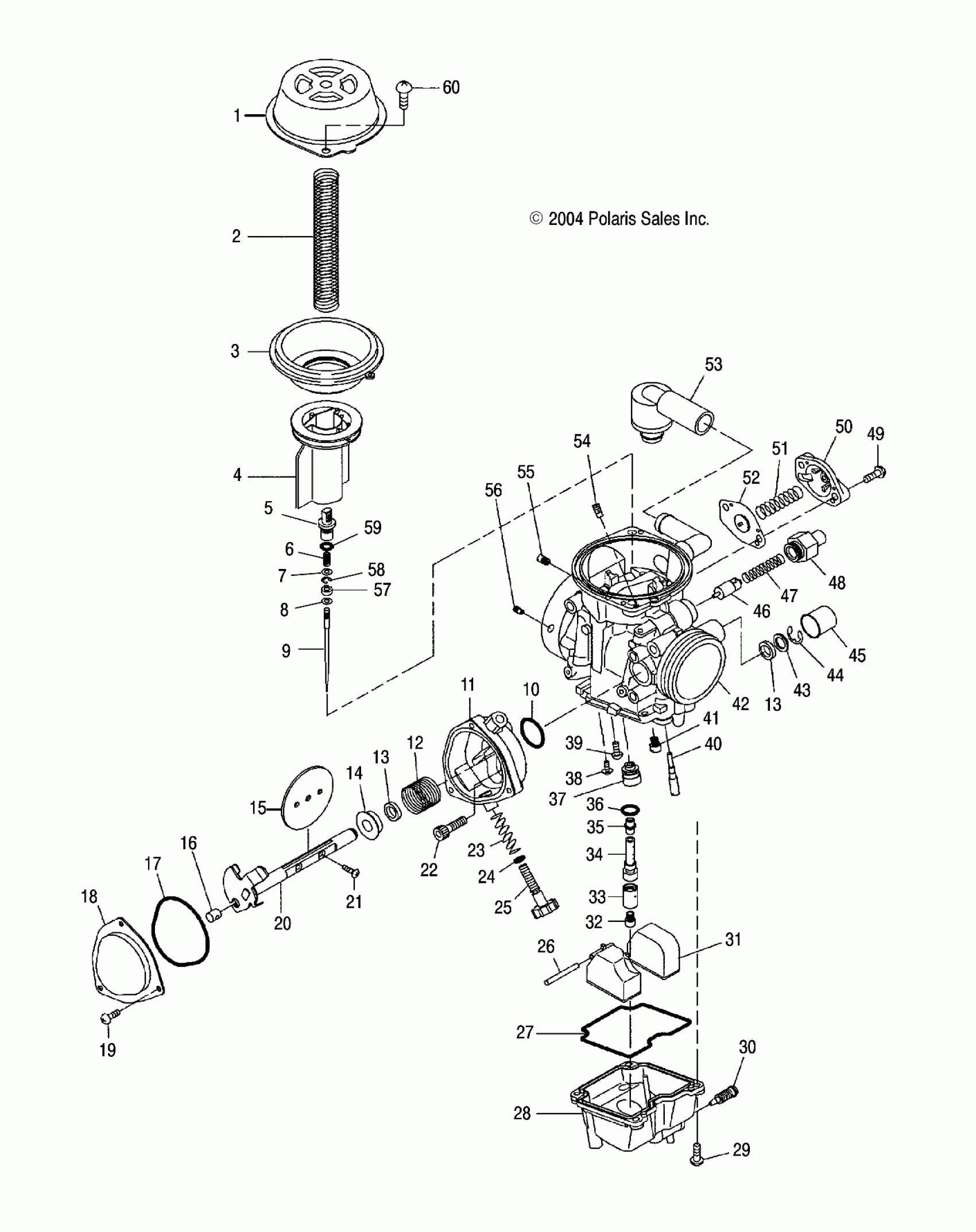

Polaris A05GJ50AA PREDATOR 500 - A05GJ50AA/AB/AC CARBURETOR - A05GJ50AA/AB/AC (4995119511C09) Diagram

#

Description
Price

1

Cover, Diaphragm

3131485

$39.67

2

Spring

3131478

Unavailable

3

Diaphragm

3131479

$60.70

4

Valve, Piston

3131480

Unavailable

5

Holder

3131477

Unavailable

6

Spring

3131481

Unavailable

7

Washer

3131482

$7.19

8

Washer

3131483

$7.19

9

Jet, Needle

3131484

Unavailable

10

O-RING

3130928

$6.39

11

Case

3131502

Unavailable

12

SPRING

3130927

$6.15

13

SEAL

3130515

$11.99

14

RING

3130932

$1.75

15

Valve, Throttle, 105

3131476

Unavailable

16

GUIDE, CABLE

3130543

$27.99

17

O-RING

3130929

$13.19

18

COVER

3130930

$31.99

19

Screw

3131512

$3.99

20

A-Shaft, Throttle

3131500

Unavailable

21

SCREW

3131475

$3.99

22

Bolt

3131503

Unavailable

23

Spring

3130010

$8.89

24

O-RING

3131501

$2.79

25

Screw, Adjust

3131511

Unavailable

26

Pin

3130043

Unavailable

27

O-Ring

3131494

$23.99

28

Body, Float

3131493

Unavailable

29

Screw

3131509

$5.99

30

SCREW

3130521

$10.39

31

A-Float

3131492

Unavailable

32

Jet, Main, 150

3140172

$7.27

33

Ring

3131490

Unavailable

34

Holder, Jet

3131491

Unavailable

35

Jet, Needle

3131496

$40.46

36

O-Ring

3140053

$5.65

37

Valve, Needle

3131575

$68.79

38

Screw

3131057

Unavailable

39

SCREW

3130924

$1.59

40

Jet, Pilot, 45

3131023

$20.22

41

Jet, 42.5

3131488

Unavailable

42

Asm., Carburetor [Incl. All]

3131574

Unavailable

43

PACKING

-------

Unavailable

44

E-RING

3130518

$1.59

45

CAP

3130519

$10.39

46

Asm., Plunger [AA]

3130593

$34.74

46

Asm., Plunger [AB]

3130539

$35.99

47

SPRING

3130538

$4.79

48

Holder, Guide

3131499

Unavailable

49

Screw

3131506

$1.99

50

Cover

3131505

$51.59

51

Spring

3131507

$10.51

52

Asm., Diaphragm

3131508

$40.46

53

Filter

3131510

$23.99

54

JET, AIR

3130619

$7.27

55

Jet, Main, 110

3131497

$13.75

56

Jet, 120

3131498

Unavailable

57

RING

3130915

$5.59

58

E-Ring

3130868

$8.89

59

O-Ring

3140049

$9.70

60

Screw

3130821

$7.19
