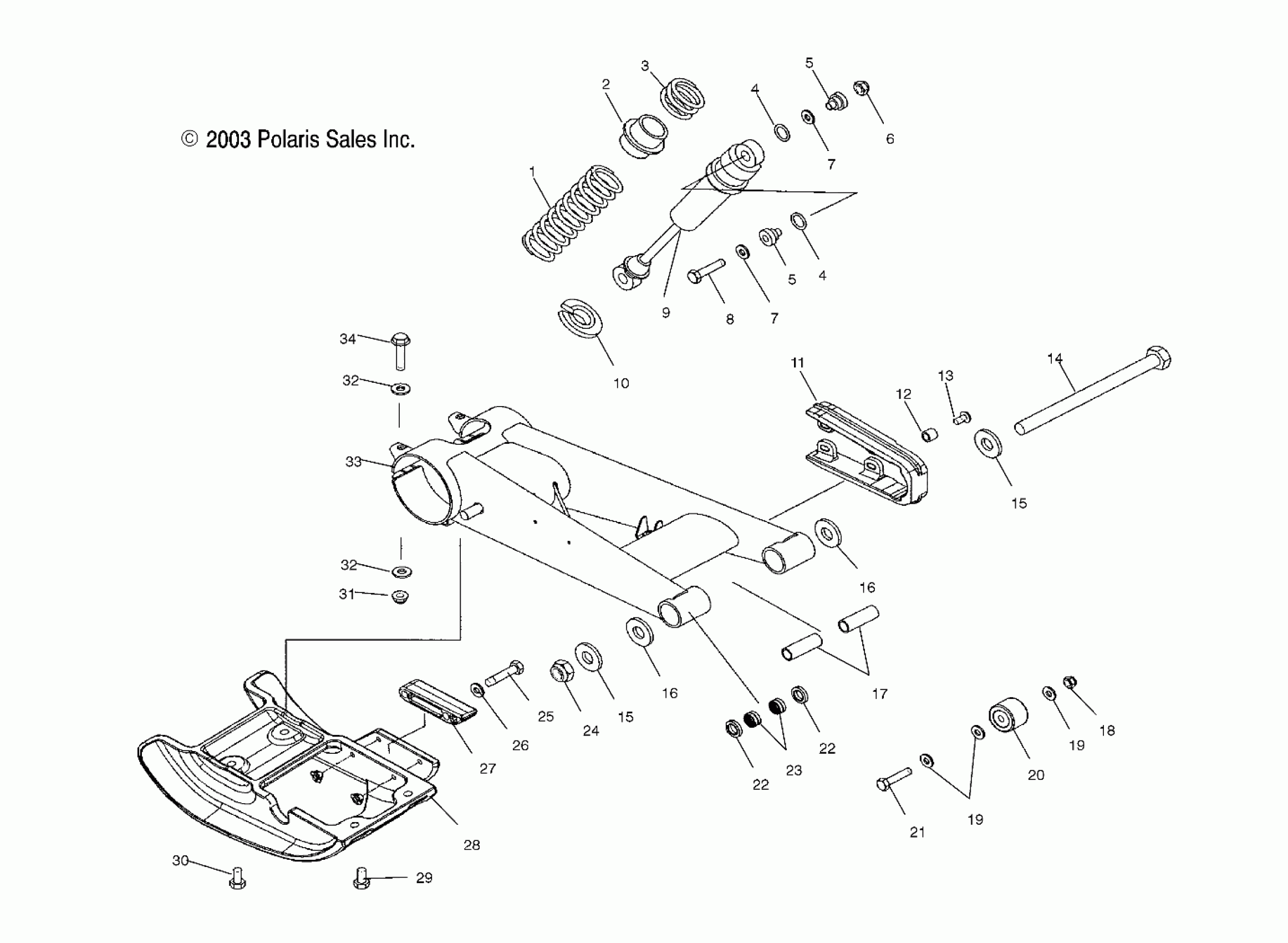

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD SWING ARM and REAR SHOCK - A04GJ50AA/AB/AC/AD (4986168616B08) Diagram

#

Description
Price

1

Spring, Compression, Red (AA)(AD)

7042251-293

Unavailable

1

Spring, Compression, Cosmic Sun (AB)

7042251-446

Unavailable

1

Spring, Compression, Gold (AC)

7042251-462

$44.39

2

Spacer, Spring

5510468

$21.99

3

Spring, Compression, Red (AA)(AD)

7042250-293

Unavailable

3

Spring, Compression, Cosmic Sun (AB)

7042250-446

Unavailable

3

Spring, Compression, Gold (AC)

7042250-462

Unavailable

4

O-RING

5412290

$2.02

4

O-RING

5412290

$2.02

5

Reducer, Bushing

5334195

$8.73

5

Reducer, Bushing

5334195

$8.73

6

NUT, NYLON

7547066

$1.59

7

Washer, Flat [Top Mount Only]

7555984

$2.38

7

Washer, Flat [Top Mount Only]

7555984

$2.38

8

BOLT

7518207

$23.81

9

SHOCK, RESERVOIR, REAR [SEE REAR SHOCK PG. C2 FOR DETAILS]

----

Unavailable

10

RETAINER [SEE REAR SHOCK PG. C2, REF. 61]

----

Unavailable

11

Slide, Chain

5435410

$44.51

12

SPACER

5334334

$24.99

13

Screw

7518196

$1.19

14

BOLT [SEE ENGINE MOUNTING PG. A13, REF. 4]

----

Unavailable

15

WASHER [SEE ENGINE MOUNTING PG. A13, REF. 3]

----

Unavailable

15

WASHER [SEE ENGINE MOUNTING PG. A13, REF. 3]

----

Unavailable

16

Bushing, Thrust Washer

5434754

Unavailable

16

Bushing, Thrust Washer

5434754

Unavailable

17

Spacer, Swing Arm

5133796

Unavailable

18

NUT-5/16-18 NYLOK-Y

7542324

$0.79

19

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

19

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

20

Asm., Roller, Chain

1590360

Unavailable

21

Bolt [Lower]

7515301

Unavailable

21

Bolt [Upper]

7515384

Unavailable

22

Seal

3610104

Unavailable

22

Seal

3610104

Unavailable

23

Bearing, Needle

3514653

$11.99

24

NUT, NYLOK [SEE ENGINE MOUNTING PG. A13, REF. 19]

----

Unavailable

25

Bolt

7510006

$34.99

26

Washer, Flat

7558301

$1.19

27

Guide, Chain

5435411

$32.37

28

T-Nut

7547277

Unavailable

28

Asm., Guard, Sprocket/Brake

1014628

Unavailable

29

SCREW

7518181

$5.56

30

Screw

7518179

$3.97

31

Nut, Nylok

7542439

$1.19

32

WSHR-.813X.406X.105-Y

7555832

$2.38

32

WSHR-.813X.406X.105-Y

7555832

$2.38

33

Asm., Swing Arm, Silver [Incl. 17,22,23]

1542023-385

$379.99

34

SCREW

7515417

$4.76
