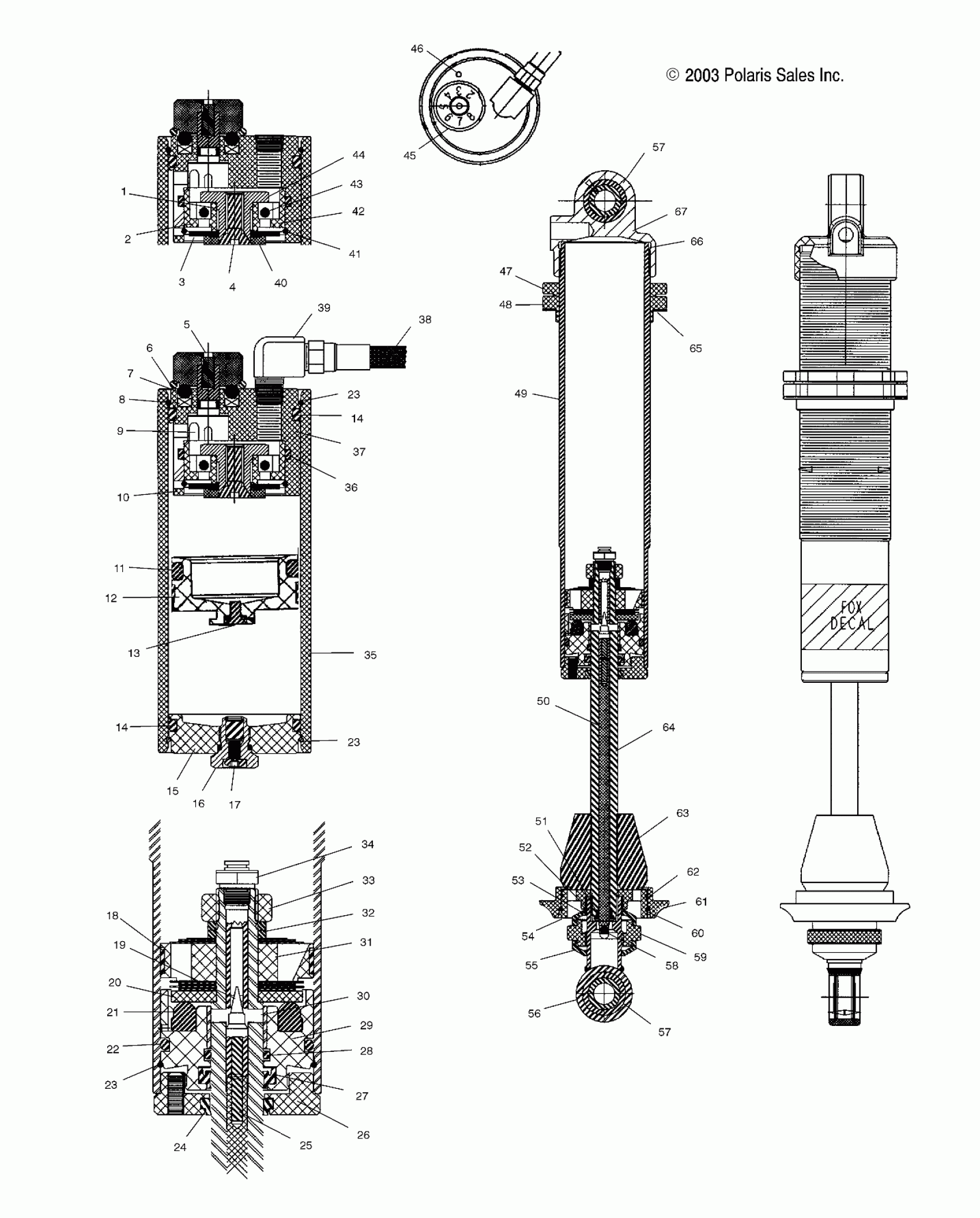

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD SHOCK, REAR - A04GJ50AA/AB/AC/AD (4986168616C01) Diagram

#

Description
Price

-

Shock, Remote Reservoir, Rear (AA)(AB)(AD)

7042320

$847.60

-

Shock, Remote Reservoir, Rear (AC)

7043074

Unavailable

1

Valve

1500222

Unavailable

2

Plate, Damping

1500532

Unavailable

3

Valve

1500221

Unavailable

4

Screw

1500252

$1.98

5

Screw

1500223

Unavailable

6

O-Ring

1500253

$0.71

7

Ball

1500226

$1.75

8

Spring

1500225

$3.32

9

Drum, Damping

1500254

$40.48

10

Housing, CD (AA)(AB)(AD)

1500522

Unavailable

10

Housing, CD (AC)

1500591

Unavailable

11

O-Ring

1500208

$7.98

12

Piston, Floating

1500515

$37.54

13

SCREW W/O-RING

1500161

$44.99

14

O-Ring

1500228

Unavailable

14

O-Ring

1500228

Unavailable

15

Asm., Reservoir End Cap (AC)

1500589

Unavailable

15

Asm., Reservoir End Cap (AA)(AB)(AD)

1500514

$35.24

16

Asm., Valve, Air

1500014

Unavailable

17

Screw

1500019

$6.35

18

Bearing

1500230

$31.75

19

Needle, Damping Adjust

1500543

Unavailable

20

Plate, Top Out

1500470

$11.32

21

Bumper, Top Out

1500298

$12.30

22

O-Ring

1500228

Unavailable

23

RING, RETAINING

1500236

$9.52

23

RING, RETAINING

1500236

$9.52

23

RING, RETAINING

1500236

$9.52

24

Wiper, Seal

1500257

Unavailable

25

Pin, Spring

1500501

Unavailable

26

Asm., Bearing Cap

1500525

Unavailable

27

U-Cup, Seal

1500256

$19.99

28

O-Ring

1500579

Unavailable

29

Asm., Bearing

1500578

$75.40

30

Bearing, Internal

1500260

$4.76

31

Piston

1500517

Unavailable

32

PLATE, BACK-UP

1500516

$8.08

33

Nut, Lock

1500472

$23.81

34

Jet

1500534

$18.41

35

Reservoir (AA)(AB)(AD)

1500518

Unavailable

35

Reservoir (AC)

1500594

Unavailable

36

O-Ring

1500227

$1.03

37

Housing, Damping (AA)(AB)(AD)

1500519

Unavailable

37

Asm., Housing, Damping (AC)

1500590

Unavailable

38

Hose

1500533

Unavailable

39

Fitting, Elbow, 90 Degree

1500107

$39.29

40

Washer, Damping Plate

1500251

$10.56

41

Ring, Retaining

1500233

$3.75

42

Asm., Damping Adjust

1500531

Unavailable

43

Ball

1500226

$1.75

44

Bolt, Damping Plate

1500250

Unavailable

45

Knob, 8 Click

1500521

$36.03

46

Dowel

1500520

$1.35

47

Ring, Preload (AA)(AB)(AD)

1500575

$27.94

47

Ring, Preload (AC)

1500593

Unavailable

48

Ring, Preload, Jam Nut (AA)(AB)(AD)

1500576

$22.06

48

Ring, Preload, Jam Nut (AC)

1500592

Unavailable

49

Body (AA)(AB)(AD)

1500580

$73.81

49

Body (AC)

1500596

Unavailable

50

Rod, Metering

1500581

$36.03

51

O-Ring

1500503

Unavailable

52

Washer, Brass Back-Up

1500508

$15.71

53

Ring, Snap

1500502

$0.76

54

Spring, Retainer Adapter

1500540

Unavailable

55

Cover, Dust

1500536

Unavailable

56

Adjust, RD [Incl. 54,55,58-60,62]

1500535

$163.49

56

Extension, Eyelet

1500541

Unavailable

57

BEARING, SPHERICAL

1500524

$43.65

57

Ring, Snap

1500523

$6.19

57

BEARING, SPHERICAL

1500524

$43.65

57

Ring, Snap

1500523

$6.19

58

Dowel

1500539

$1.40

59

Knob, 12 Click

1500542

$45.24

60

Ring, Retaining

1500538

$1.83

61

Retainer, Spring

1500507

Unavailable

62

O-Ring

1500537

$7.99

63

Bumper, Bottom Out

1500577

$33.24

64

Shaft

1500582

$89.68

65

Washer, Flat

7556312

$1.81

66

O-RING

1500510

$6.46

67

Asm., Body Cap (AC)

1500595

$111.11

67

Asm., Body Cap (AA)(AB)(AD)

1500509

$115.08
