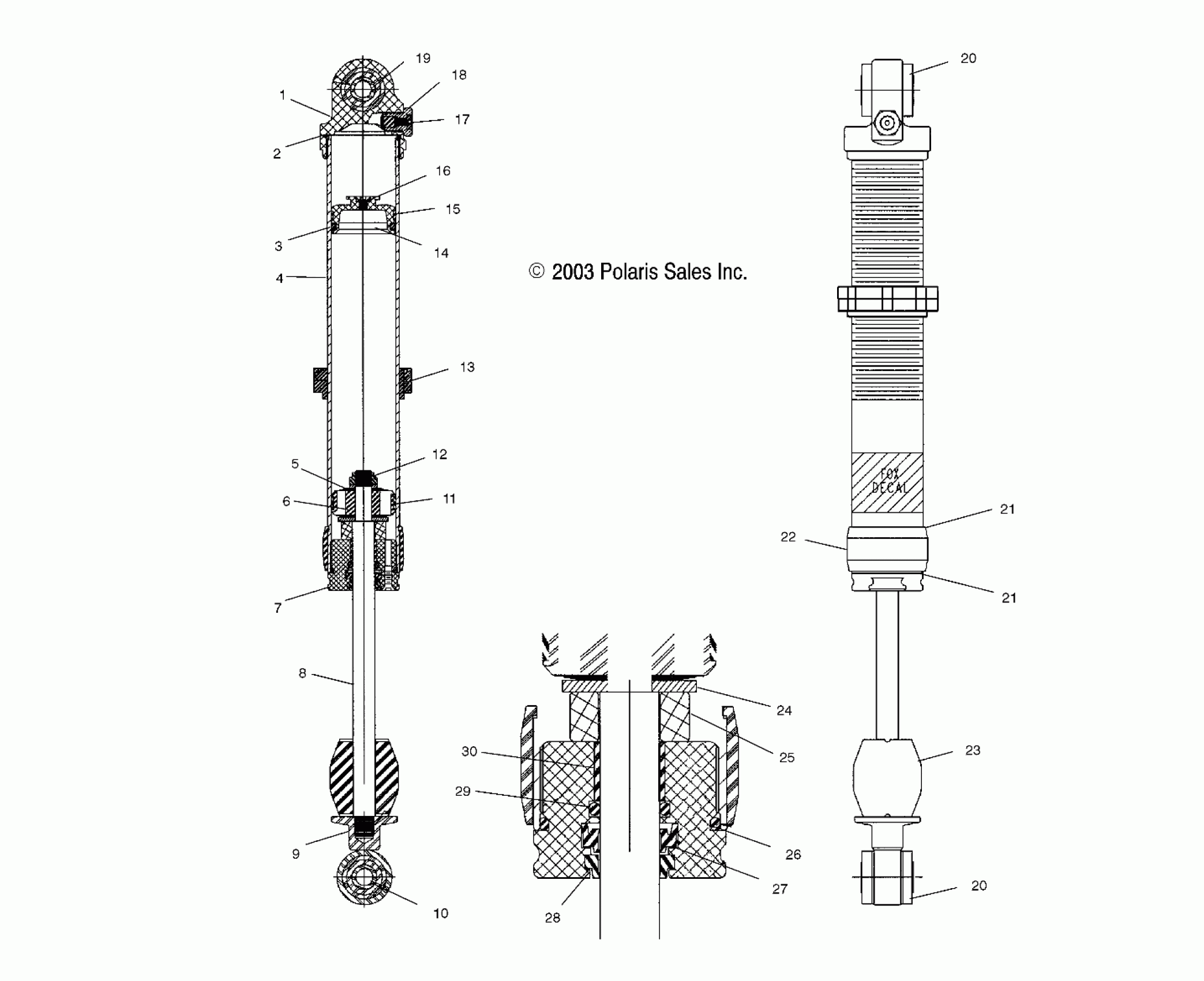

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD SHOCK, FRONT - A04GJ50AA/AB/AC/AD (4986168616C03) Diagram

#

Description
Price

-

Shock, IFP, Front (AA)(AB)(AD)

7042292

Unavailable

-

Shock, IFP, Front (AC)

7043075

Unavailable

1

Asm., Cap, Body (AA)(AB)(AD)

1500569

$45.24

1

Asm., Cap, Body (AC)

1500588

Unavailable

2

O-Ring

1500108

$10.99

3

O-Ring

1500180

Unavailable

4

Body (AA)(AB)(AD)

1500568

$73.81

4

Body (AC)

1500584

$102.99

5

Plate, Back-Up

1500015

$6.76

6

Piston

1500495

$23.81

7

Asm., Bearing

1500570

$59.52

8

Shaft

1500493

Unavailable

9

ASM., EYELET

1500013

$52.24

10

SLEEVE

1500497

$36.41

11

Bearing, External, Piston

1500002

$31.75

12

Nut, Lock

1500016

$12.70

13

Ring, Preload, Jam Nut (AC)

1500586

Unavailable

13

Ring, Preload, Jam Nut (AC)

1500587

Unavailable

13

Ring, Preload, Jam Nut (AA)(AB)(AD)

1500574

$18.89

13

Ring, Preload (AA)(AB)(AD)

1500571

$17.30

14

Piston, Floating

1500011

$59.52

14

Asm., Floating Piston [Incl. 3]

1500275

$92.99

15

Bearing, External, IFP

1500006

$19.84

16

O-Ring

1500022

Unavailable

16

SCREW W/O-RING

1500161

$44.99

17

Screw

1500019

$6.35

18

Asm., Valve, Air

1500014

Unavailable

19

Sleeve

1500566

$36.41

20

BUSHING

1500103

$8.89

20

BUSHING

1500103

$8.89

21

Ring, Wire

1500607

Unavailable

21

Ring, Wire

1500607

Unavailable

22

Guide, Spring (AC)

1500585

Unavailable

22

Guide, Spring (AA)(AB)(AD)

1500572

$5.40

23

Bumper, Bottom Out

1500567

Unavailable

24

Plate, Top-Out

1500017

Unavailable

25

Spacer

1500544

Unavailable

26

O-Ring

1500020

$10.63

27

U-Cup

1500266

$28.32

28

Wiper

1500268

$15.48

29

O-Ring

1500496

$6.99

30

Bearing

1500488

Unavailable
