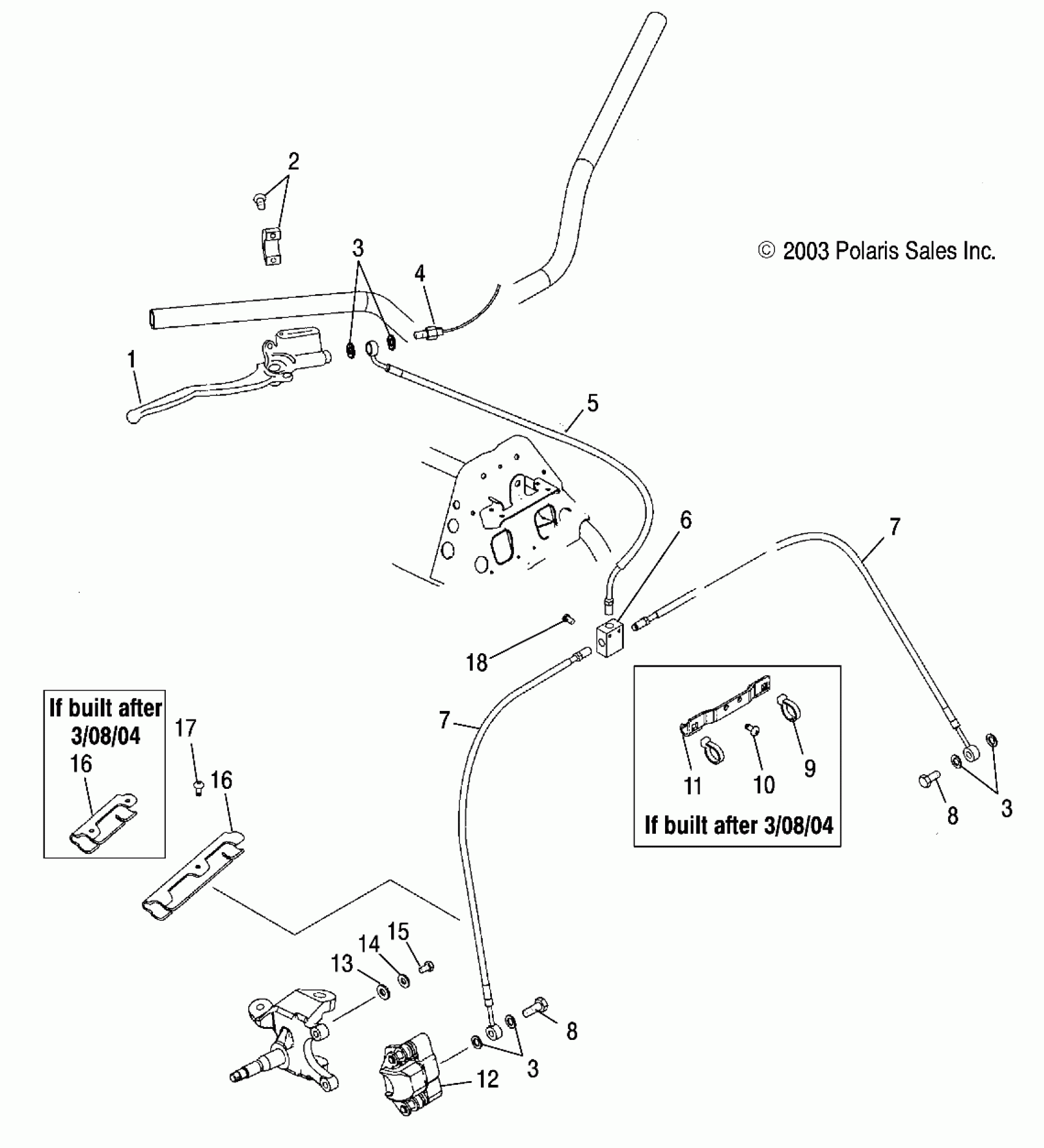

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD FRONT BRAKE - A04GJ50AA/AB/AC/AD (4986168616B11) Diagram

#

Description
Price

1

Asm., Master Cylinder, RH

1910590

Unavailable

2

KIT, MASTER CYLINDER CLAMP [SEE FRONT BRAKE MASTER CYLINDER PG. B12, REF. 6]

----

Unavailable

3

Seal

5410988

$4.84

3

Seal

5410988

$4.84

3

Seal

5410988

$4.84

4

Switch, Pressure

4010758

$68.79

5

Line, Brake Master Cylinder to J/B

1910586

Unavailable

6

Fitting, Tee, Brake

7052338

$24.21

7

Line, Brake, J/B to Caliper

1910585

$57.74

7

Line, Brake, J/B to Caliper

1910585

$57.74

8

BOLT, BANJO

1910499

$5.56

8

BOLT, BANJO

1910499

$5.56

9

Cable Tie (If built after 3/08/04)

7080356

$2.38

10

Screw (If built after 3/08/04)

7512017

$4.76

11

Bracket, Junction Block Support (If built after 3/08/04)

5248601-385

Unavailable

12

Asm., Caliper

1910689

Unavailable

13

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

14

WASHER, SPRING LOCK

7552901

$1.19

15

SCREW

7512365

$1.19

16

Retainer, Brake Line, Front (If built after 3/08/04)

5435861

$13.10

16

Retainer, Brake Line, Front (If built before 10/01/03)

5435456

Unavailable

16

Retainer, Brake Line, Front (If built between 10/01/03 and 3/08/04)

5435496

Unavailable

16

Retainer, Brake Line, Front (If built after 3/08/04)

5435861

$13.10

16

Retainer, Brake Line, Front (If built before 10/01/03)

5435456

Unavailable

16

Retainer, Brake Line, Front (If built between 10/01/03 and 3/08/04)

5435496

Unavailable

17

Screw

7517396

Unavailable

18

SCREW

7512024

$4.76
