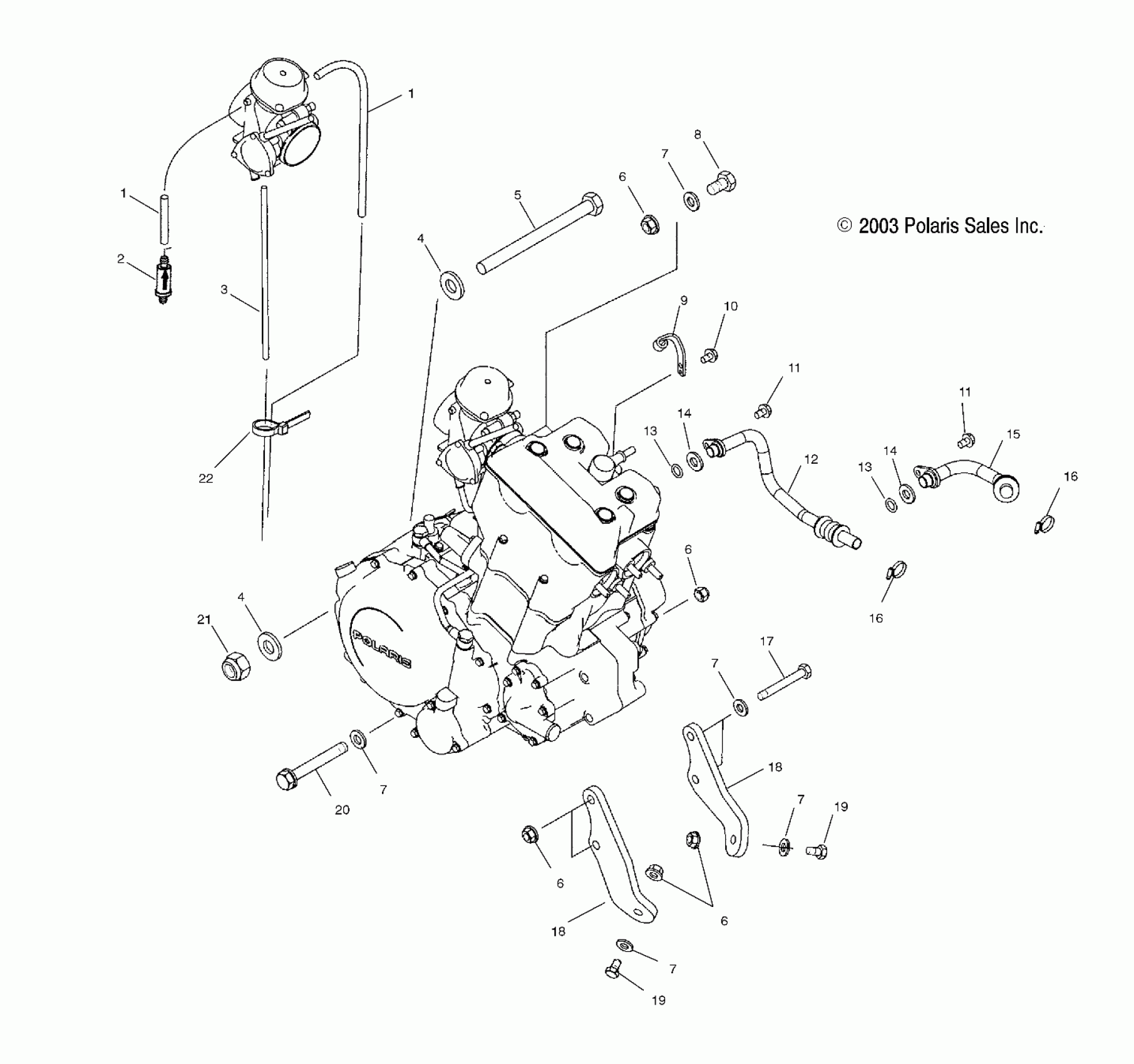

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD ENGINE MOUNTING - A04GJ50AA/AB/AC/AD (4986168616A13) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

2

Filter, Fuel

2530009

$5.65

3

Line, Fuel

8360009-100

Unavailable

4

Washer

7556264

Unavailable

4

Washer

7556264

Unavailable

5

Bolt, Swing Arm

7518148

Unavailable

6

Nut, Flange

7547108

$4.79

6

Nut, Flange

7547108

$4.79

6

Nut, Flange

7547108

$4.79

6

Nut, Flange

7547108

$4.79

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

8

Screw

7515433

$1.59

9

Bracket, Clutch Cable

5246639

$49.59

10

SCREW

7517653

Unavailable

11

Screw

7517915

$7.19

11

Screw

7517915

$7.19

12

Asm., Hose, Oil Return

2540114

$67.99

13

O-Ring

5411356

$2.39

13

O-Ring

5411356

$2.39

14

Washer, Flat

7556113

$4.79

14

Washer, Flat

7556113

$4.79

15

Asm., Hose, Oil Suction

2540113

Unavailable

16

CLAMP-HOSE,.875-SS

7080474

$8.40

16

CLAMP-HOSE,.875-SS

7080474

$8.40

17

Bolt

7517507

$23.99

18

Mount, Engine, Front, LH

5246080

Unavailable

18

Mount, Engine, Front, RH

5246081

$13.89

18

Mount, Engine, Front, LH

5246080

Unavailable

18

Mount, Engine, Front, RH

5246081

$13.89

19

Bolt

7512457

$3.99

19

Bolt

7512457

$3.99

20

Bolt

7515514

$7.19

21

Nut, Lock

7547096

$5.59

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
