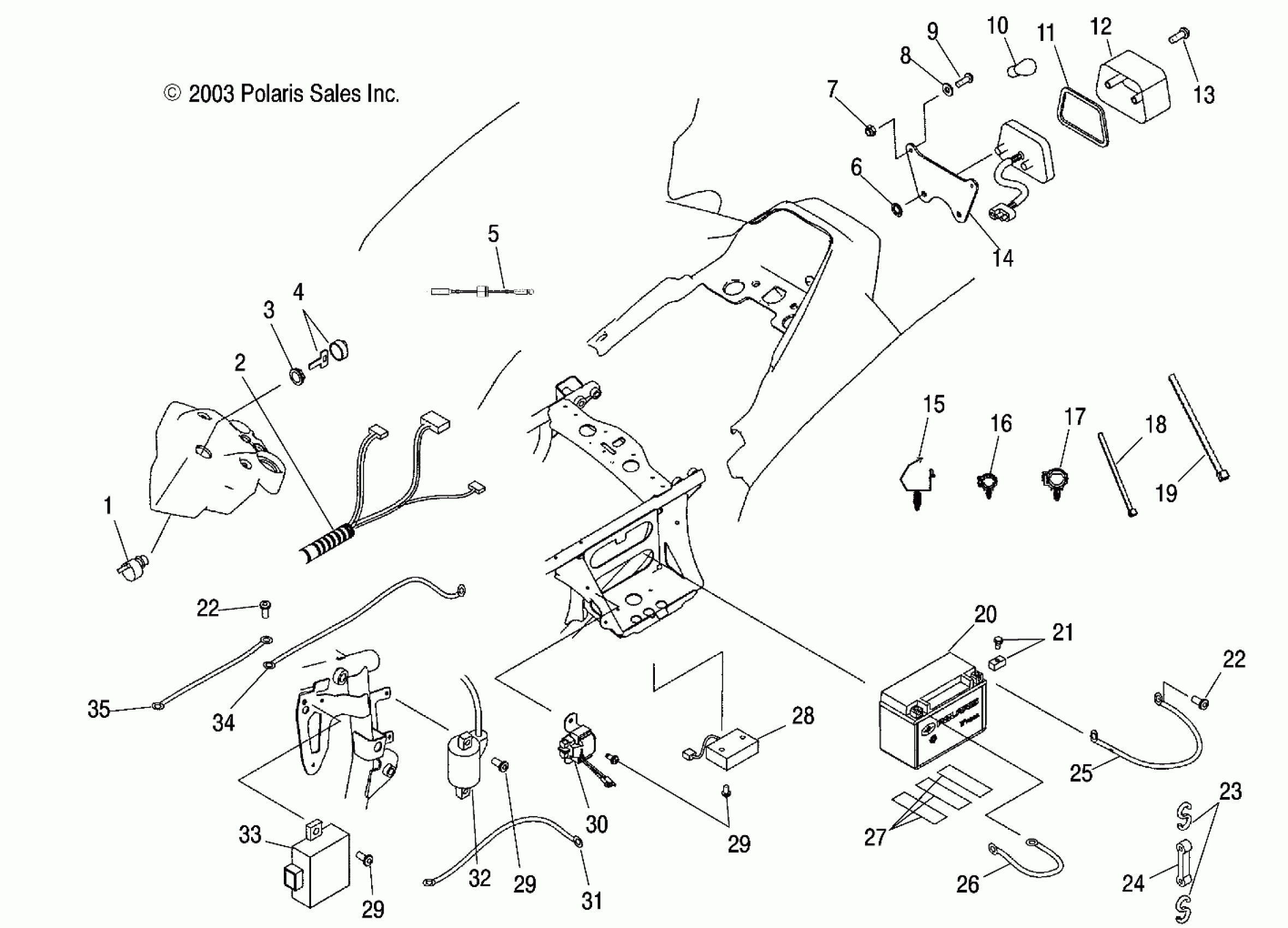

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD ELECTRICAL - A04GJ50AA/AB/AC/AD (4986168616B14) Diagram

#

Description
Price

-

Asm., Taillight [Incl. 9-12]

2410367

Unavailable

1

Switch, Ignition

4110264

$104.24

2

Kit, Fusible Link

2202147

$79.99

2

Breaker, Circuit, 10 AMP

2410394

Unavailable

2

Breaker, Circuit, 20 AMP

2410323

$64.75

2

Harness, Main

2410518

Unavailable

3

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

4

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

4

Switch Ignition

4110264

$104.24

5

DIODE, 6 AMP

2410000

$35.99

6

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

7

Nut, Nylok

7541925

$1.49

8

WASHER

7556034

$2.39

9

Screw

7512027

$1.49

10

Bulb, Taillight

4010828

Unavailable

11

Gasket, Taillight

4032045

$4.03

12

Lens, Taillight

4032046

$32.37

13

Screw, Taillight

4032029

$4.79

14

Mount, Taillight

5812562

Unavailable

15

CLIP, ROUTING

7670109

$2.39

16

Clip, Rosebud [Small]

4020139

$4.79

17

Clip, Rosebud [Large]

4020149

$6.39

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

20

Battery

4010678

$87.99

21

KIT, BATTERY BOLT

2202213

$3.79

22

Screw

7515199

$1.49

22

Screw

7515199

$1.49

23

Hook, Battery Strap

7081123

$6.39

24

STRAP, RUBBER

5410608

$9.70

25

Cable, Black, 7 Inch

4010883

Unavailable

26

Cable, Battery/Solenoid, Red, 7 Inch

4010884

Unavailable

27

Pad

5810317

Unavailable

28

Rectifier, Regulator

4010654

$193.04

29

Screw

7518196

$1.49

29

Screw

7518196

$1.49

29

Screw

7518196

$1.49

30

Switch, Magnetic

3087198

$105.22

31

Cable, Solenoid/Starter

4010093

$47.99

32

Asm., Coil, Ignition

3089266

Unavailable

33

Asm., CDI System

3088052

Unavailable

34

Cable, Black, 18 Inch

4010925

$11.59

35

Cable, Ground, 10 Inch

4010926

Unavailable
