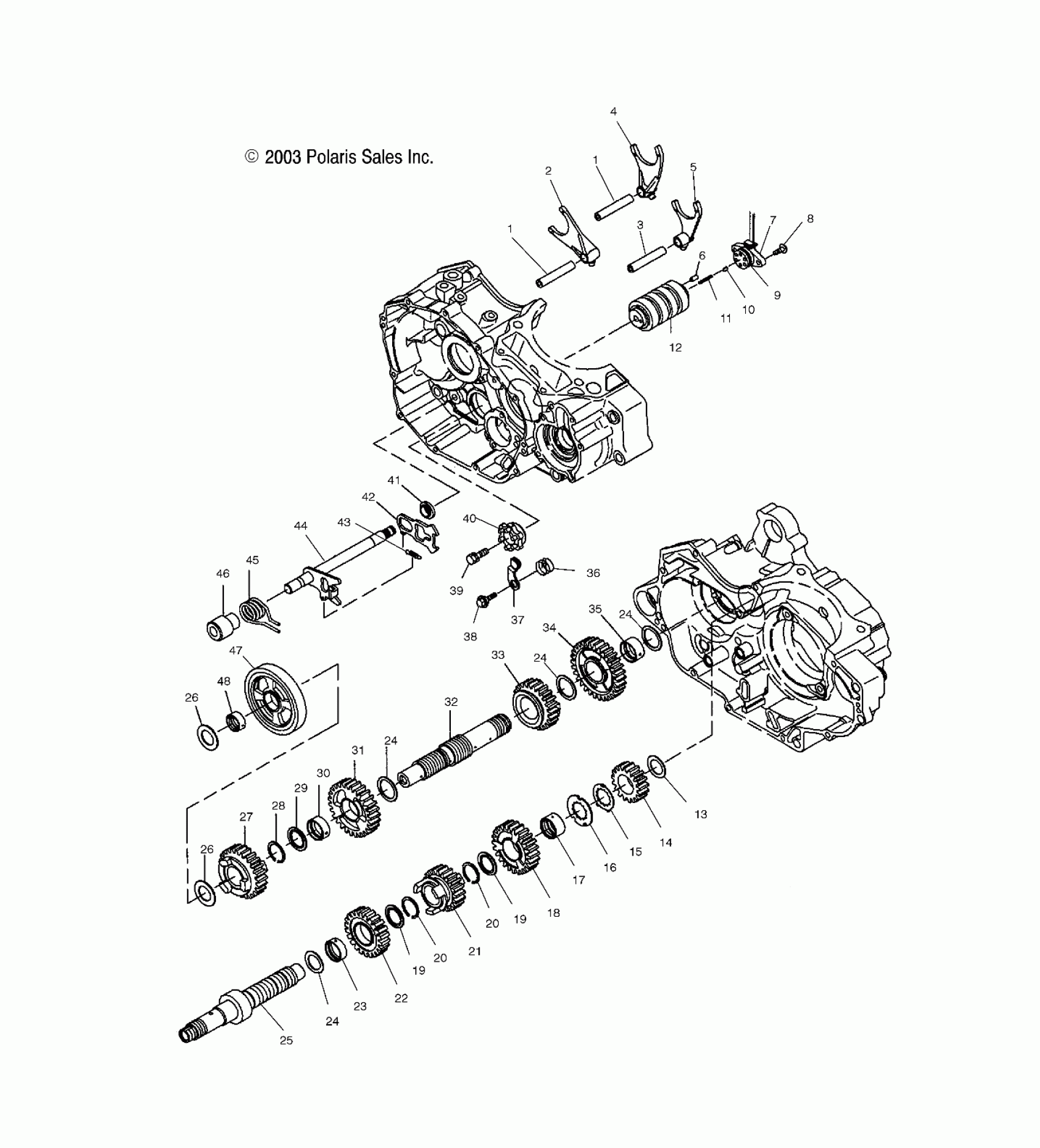

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD CLUTCH - A04GJ50AA/AB/AC/AD (4986168616D05) Diagram

#

Description
Price

1

Shaft, Fork, Right and Left

3089462

$9.52

1

Shaft, Fork, Right and Left

3089462

$9.52

2

Fork, Shift, Right

3089460

$91.27

3

Shaft, Fork, Main

3089461

$10.39

4

Fork, Shift, Left

3089459

Unavailable

5

Fork, Shift, Main

3089458

Unavailable

6

Pin, Dowel

3088191

Unavailable

7

Asm., Switch, Position [Incl. 9]

3088122

Unavailable

8

Asm., Screw and Washer

3083783

$2.39

9

O-Ring

3088123

$2.15

10

Point, Neutral

3088115

Unavailable

11

Spring, Point

3088116

Unavailable

12

Asm., Drum, Shift [Incl. 6]

3089454

$140.79

13

Washer

3088096

Unavailable

14

Gear, 2nd Drive

3088085

Unavailable

15

Washer, Lock

3088095

Unavailable

16

Washer

3088092

$7.03

17

Collar, Spline

3088089

$24.39

18

Gear, 5th Drive

3088189

$64.29

19

Washer, Spline

3088091

$1.49

19

Washer, Spline

3088091

$1.49

20

Clip

3088093

Unavailable

20

Clip

3088093

Unavailable

21

Gear, 3rd Drive

3088188

$89.03

22

Gear, 4th Drive

3088087

Unavailable

23

Collar

3088090

$27.83

24

Washer

3088094

$5.99

24

Washer

3088094

$5.99

24

Washer

3088094

$5.99

24

Washer

3088094

$5.99

25

Asm., Main Shaft [Incl. 13-25]

3088187

$351.99

25

Shaft, Main

3088084

$161.89

26

Washer

3088107

$6.23

26

Washer

3088107

$6.23

27

Gear, 4th Driven

3088102

Unavailable

28

Clip

3088093

Unavailable

29

Washer, Spline

3088091

$1.49

30

Collar

3088106

Unavailable

31

Gear, 3rd Driven

3088101

Unavailable

32

Asm., Counter Shaft [Incl. 24,26-35,47,48]

3088097

$389.99

32

Shaft, Counter

3088098

Unavailable

33

Gear, 5th Driven

3088103

$57.14

34

Gear, 2nd Driven

3088100

$64.29

35

Collar

3088105

$27.83

36

Spring, Stopper

3089456

$2.63

37

Asm., Arm, Stopper

3088113

$49.21

38

Bolt, Stopper

3088117

$3.03

39

Bolt, Flange

3089457

$1.99

40

Cam, Shift

3089455

$53.59

41

Collar 1

3088128

$14.23

42

Arm B, Shift

3088126

$18.23

43

Spring, Shift

3088127

$1.99

44

Asm., Shaft, Shift

3088124

Unavailable

45

Spring, Return

3088125

Unavailable

46

Collar 2

3088129

$22.79

47

Gear, 1st Driven

3088099

Unavailable

48

Collar

3088104

Unavailable
