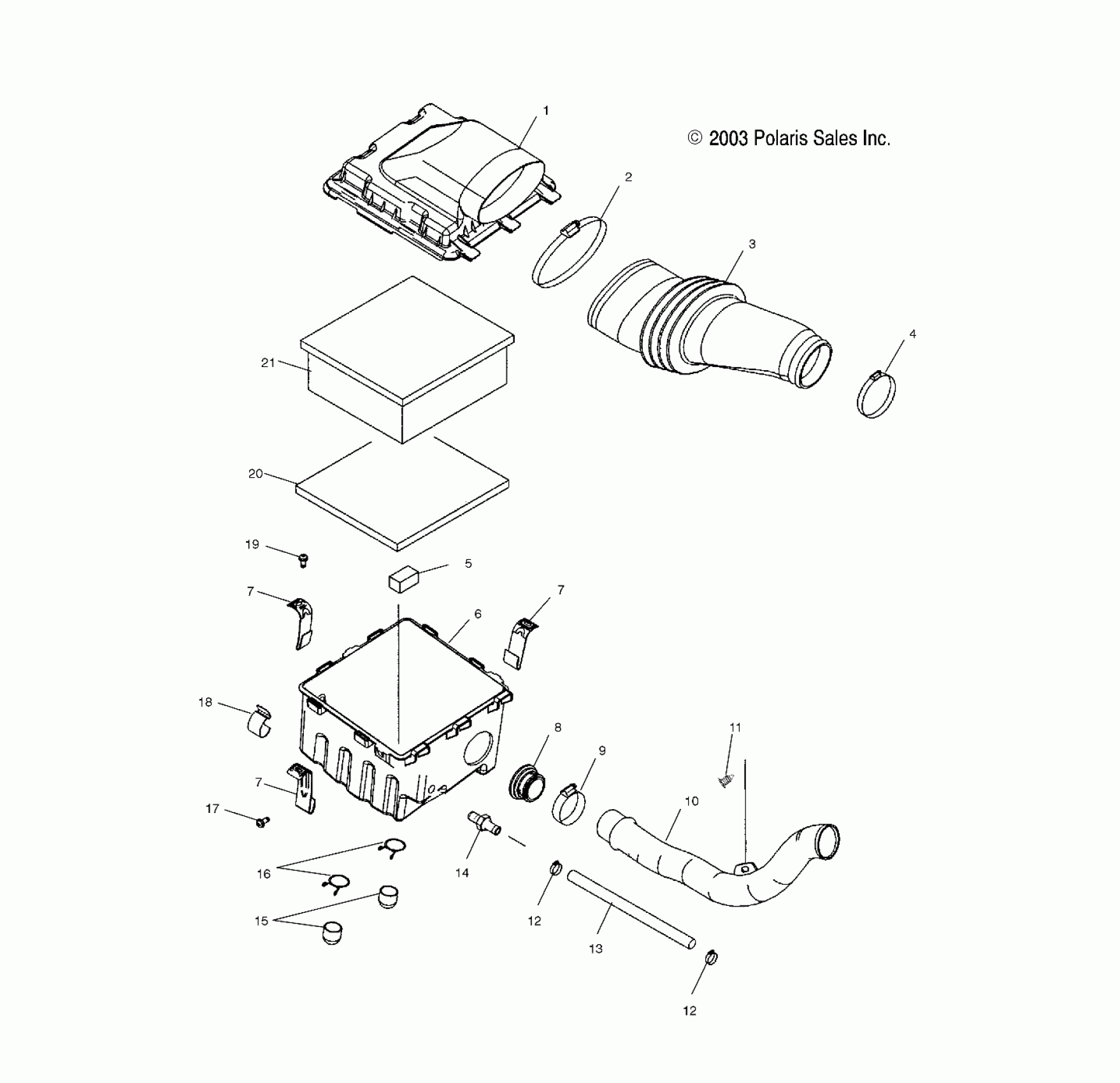

Polaris A04GJ50AA PREDATOR - A04GJ50AA/AB/AC/AD AIR INTAKE - A04GJ50AA/AB/AC/AD (4986168616B13) Diagram

#

Description
Price

1

Cover, Airbox

5434449

Unavailable

2

Clamp, Airbox

7081041

$11.19

3

Duct, Airbox/Carburetor

5434472

Unavailable

4

Clamp, Narrow Band

7080413

$3.19

5

Filter, Crankcase

5812361

Unavailable

6

Housing, Airbox

5434448

Unavailable

7

Bracket, Airbox

5334128

Unavailable

7

Bracket, Airbox

5334128

Unavailable

7

Bracket, Airbox

5334128

Unavailable

8

Boot, Airbox

5412221

$11.19

9

Clamp

7080140

Unavailable

10

Duct, Intake, Airbox

5434450

$51.99

11

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

12

CLAMP-HOSE,.875-SS

7080474

$8.40

12

CLAMP-HOSE,.875-SS

7080474

$8.40

13

Line

8450096

Unavailable

14

Fitting, Barbed

7052336

$5.43

15

Cap, Drain

5411765

Unavailable

16

Clamp, Single Wire

7080865

$7.99

17

Screw

7518165

Unavailable

18

Clip, Airbox

7670117

$7.19

19

Screw

7518196

$1.49

20

Foam, Airbox

5812328

Unavailable

21

Filter, Airbox

5830226

$32.29
