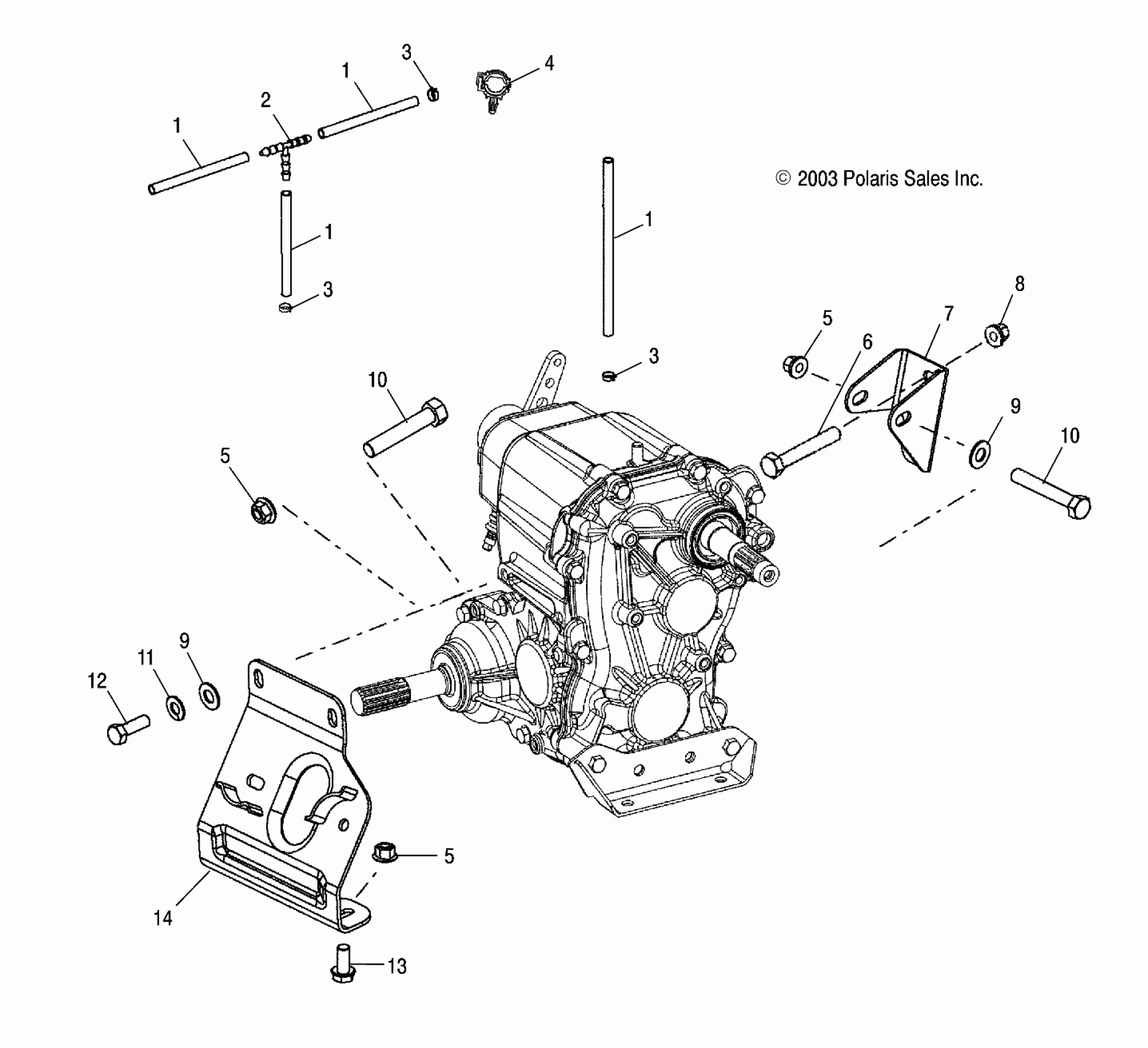

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU TRANSMISSION MOUNTING - A04CH68AP/AQ/AU/CU (4987468746C12) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

2

T-Fitting

7052075

$9.52

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

4

Clip

7080756

$4.76

5

NUT, FLANGE, LOCK

7547108

$4.76

5

NUT, FLANGE, LOCK

7547108

$4.76

5

NUT, FLANGE, LOCK

7547108

$4.76

6

Bolt, Carriage

7512377

$4.76

7

Bracket, Mount, Rear Transmission

5247348

Unavailable

8

Nut, Flange

7542321

$1.19

9

Washer, Flat

7555976

$3.97

9

Washer, Flat

7555976

$3.97

10

SCREW

7515417

$4.76

10

SCREW

7515417

$4.76

11

Washer, Spring Lock

7552603

$0.79

12

Bolt

7515522

$3.97

13

Screw

7517289

$3.29

14

Mount, Rear Engine

1013134-067

Unavailable
