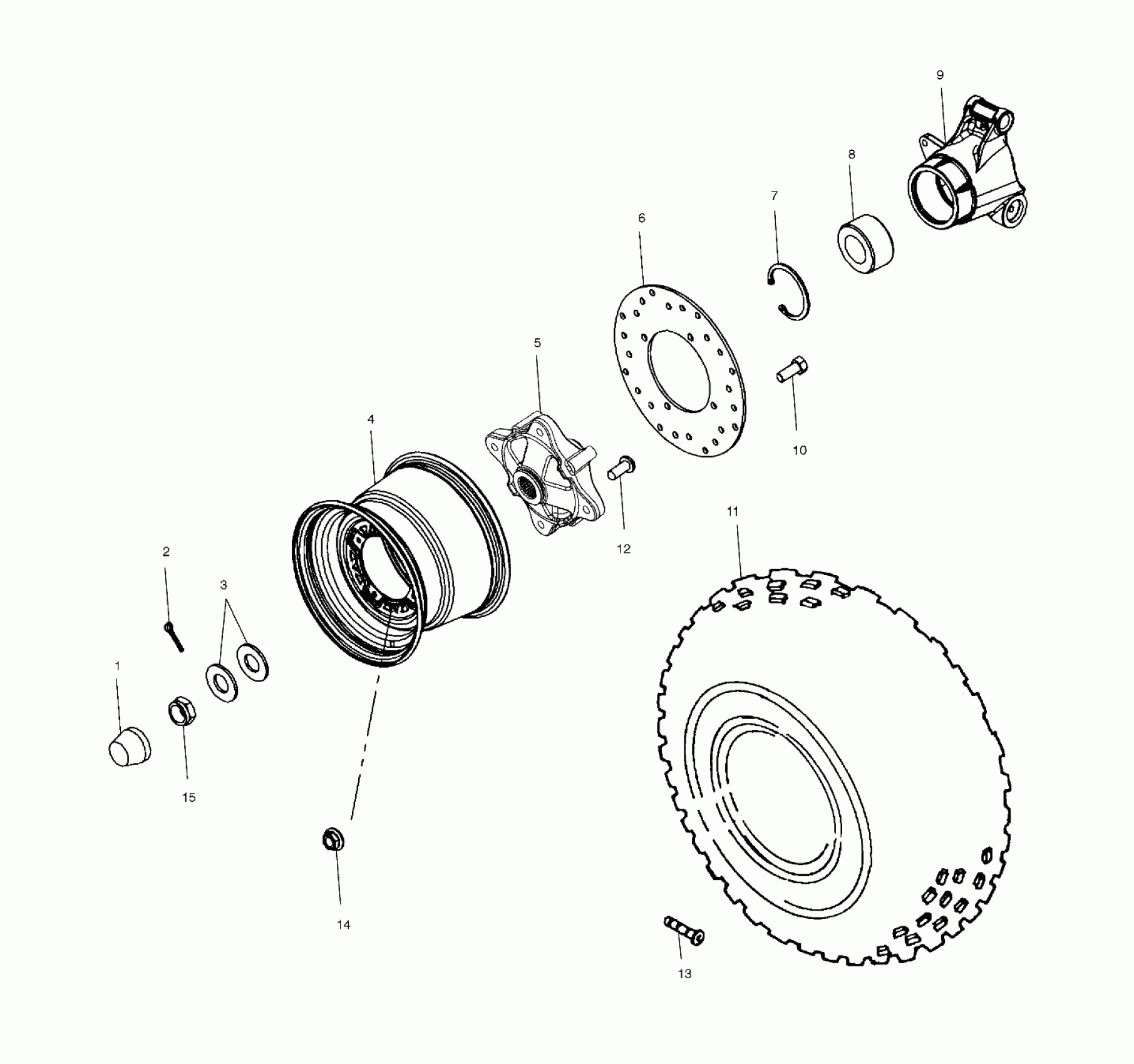

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU REAR WHEEL DRIVE - A04CH68AP/AQ/AU/CU (4986128612C06) Diagram

Cover, Dust, Hub

5411164

$24.27

PIN, COTTER

7661404

$4.79

WASHER, CONE

7555796

$7.99

WELD-RIM,REAR,12X8.0,BLK (AP)(If built after 1/12/04)

1520457-067

Unavailable

Rim, Rear, NBU (AQ)(If built before 1/12/04)

1520695-455

Unavailable

Rim, Rear, NBU (AQ)(If built after 1/12/04)

1520797-455

Unavailable

Rim, Rear, Black (AP)(If built before 1/12/04)

1520564-067

Unavailable

Rim, Rear, Chrome (AU)(CU)

1520588

Unavailable

Hub, Rear Wheel [If built before 10/20/03]

5133361

Unavailable

Hub, Rear Wheel [If built after 10/20/03]

5134311

Unavailable

Disc, Brake, Rear

5244635

$75.99

RING, RETAINING

7710440

$10.39

Bearing

3585502

Unavailable

CARRIER, WHEEL BEARING [SEE REAR SUSPENSION PG., REF. 39]

-------

Unavailable

Screw

7512325

$2.39

Tire, Rear, 270/60R12 (AU)(CU)

5412563

Unavailable

Tire, Rear, 25x11x12 (AP)(AQ)

5411949

Unavailable

Stud

7515513

$1.49

VALVE-RIM

1525017

$5.59

NUT, FLANGE

7547237

$2.39

Nut, Castle

7543005

Unavailable
