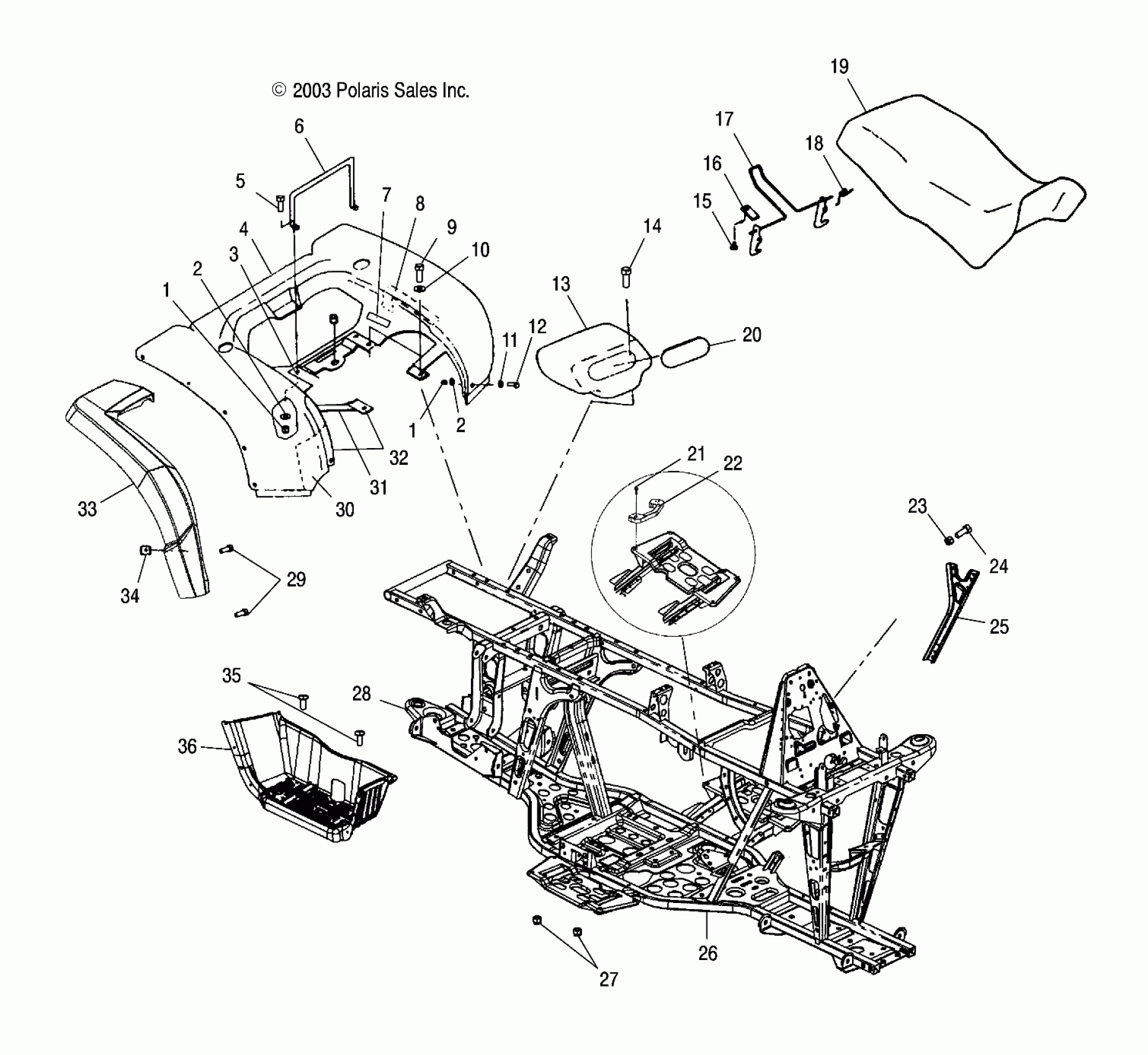

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU REAR CAB, SEAT and MAIN FRAME - A04CH68AP/AQ/AU/CU (4987468746A03) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$0.79

1

Nut, Nylok

7541925

$0.79

2

WASHER

7555792

$4.76

2

WASHER

7555792

$4.76

3

Foil, Rear Cab, Rear

5811107

Unavailable

4

Cab, Rear, NBU (AP)(AQ)

5435164-455

$529.99

4

Cab, Rear, Black Met (AU)(CU)

5432117-177

Unavailable

5

Bolt

7511930

$2.38

6

Retainer, Seat Latch

5246076

Unavailable

7

Decal, 4 Stroke, Filter Information

7172251

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.94

9

SCREW

7512242

$2.38

10

Washer, Flat

7555859

$1.19

11

WASHER

7556034

$2.38

12

Screw

7512085

Unavailable

13

Box, Tool

5431786

$53.17

14

Screw

7517375

$1.19

15

RIVET

7621403

$1.19

16

BRACKET, LEVER RETAINER

5211033

$34.99

17

LATCH, SEAT

1040387

$48.56

18

SPRING, LATCH

7041370

$9.52

19

Covering, Seat, Black

2682958-070

$149.75

19

Asm., Seat, Black (AU)(CU)

2683197-070

$445.22

19

Asm., Seat, Black w/Gold Polaris (AP)(AQ)

2683419-070

$445.22

20

Cover, Tool Box

5431787

Unavailable

21

SCREW

7517377

$4.76

22

Spacer

5432280

$8.73

23

Nut

7542153

$1.59

24

Screw

7512283

$3.97

25

Brace, Frame

5244751-067

Unavailable

26

Frame, Main

1014461-067

$879.98

27

Nut, Nylok

7542122

$1.19

28

DECAL, HITCH, 1500 LBS.

7170509

$7.27

29

SCREW

7512232

$1.19

30

Foil, Rear Fender

5811111

Unavailable

31

Foil

5811087

Unavailable

32

Foil, Rear Cab, Front

5811106

Unavailable

33

Guard, Mud, Rear, Black, LH

5434704-070

Unavailable

33

Guard, Mud, Rear, Black, RH

5434705-070

Unavailable

34

NUT, U-TYPE SPEED

7670057

$1.19

35

Screw [RH Side]

7517376

$0.79

35

Screw [LH Side]

7517264

$3.97

36

Footwell, Black, LH

5432221-070

$230.70

36

Footwell, Black, RH

5433929-070

$230.70
