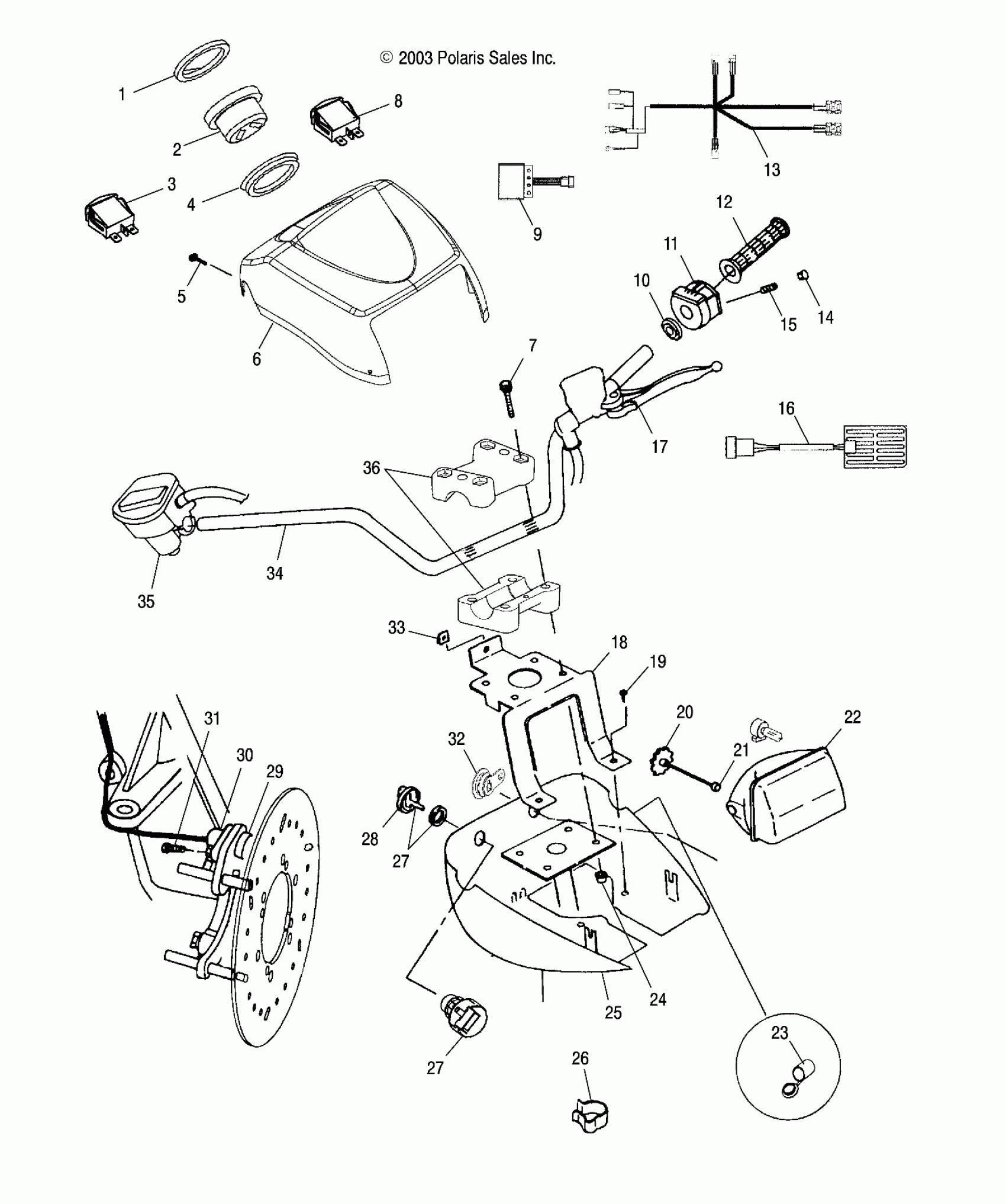

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU HANDLEBAR and HEADLIGHT POD - A04CH68AP/AQ/AU/CU (4987468746C01) Diagram

#

Description
Price

1

Bezel

5434380

$44.51

2

Cluster

3280431

$427.49

3

Switch, Thumb Warmer, Hi/Lo (AQ)

4010964

$64.75

4

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$44.51

5

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

6

Pod, Headlight, Upper (AQ)

5435330-455

Unavailable

6

Pod, Headlight, Upper (AP)

5435239-455

Unavailable

6

Pod, Headlight, Upper (AU)(CU)

5434706-473

Unavailable

7

SCREW

7517238

$4.76

8

Switch, Hand Warmer, Hi/Lo (AQ)

4010963

Unavailable

9

Module, Load Shed (AQ)

4010970

Unavailable

10

Spacer, Switch, LH

5433903

Unavailable

11

Switch, Handlebar Hi/Lo/Mode

4010591

$151.99

12

Grip, Handlebar

5433834-070

$28.32

13

Harness, Wire Pod (AQ)

2461213

$104.99

14

Plug

5432952

$6.46

15

SCREW, SET

7517625

$4.76

16

Asm., Hand Warmer (AQ)

2410567

$106.49

17

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG. B13 FOR DETAILS]

----

Unavailable

18

Bracket, Pod Mounting

5244969-067

$44.99

19

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

20

KNOB, ADJUSTING

4032079

$28.32

21

Rod, Adjusting

4032078

Unavailable

22

KIT-HARNESS,HEADLIGHT

2204143

$91.97

22

BULB-HEADLIGHT,50 WATT

4010253

$34.99

22

Asm., Headlamp

2410268

$109.27

23

Receptacle, Pod Mount, 12V

4010638

$28.32

24

Nut, Nylok

7542122

$1.19

25

Pod, Headlight, Lower (AP)(AQ)

5433762-070

Unavailable

25

Pod, Headlight, Lower (AU)(CU)

5433762-177

$93.08

26

Clip, Cable Retaining

7080631

Unavailable

27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

27

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

27

Switch, Key, 3 Position [Incl. Key]

4011002

$109.27

27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

27

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

27

Switch, Key, 3 Position [Incl. Key]

4011002

$109.27

28

KEY SWITCH KEY COVER

5433534

$13.75

29

CAP

5132382

$24.27

30

Sensor

4010298

$117.37

31

Screw

7517658

$5.56

32

Grommet, Choke Hole

5412330

Unavailable

33

CLIP, SCREW

7670127

$10.46

34

Tube, Handlebar

5242987-067

$119.99

35

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B10, REF. 5]

----

Unavailable

36

Block, Handlebar [If built after 9/29/03]

5631973

$32.37

36

Block, Handlebar, Pegged [If built after 9/29/03]

5631972

$32.37

36

Block, Handlebar, Pegged [If built before 9/29/03]

5631146

$10.63

36

Block, Handlebar [If built before 9/29/03]

5631147

Unavailable
