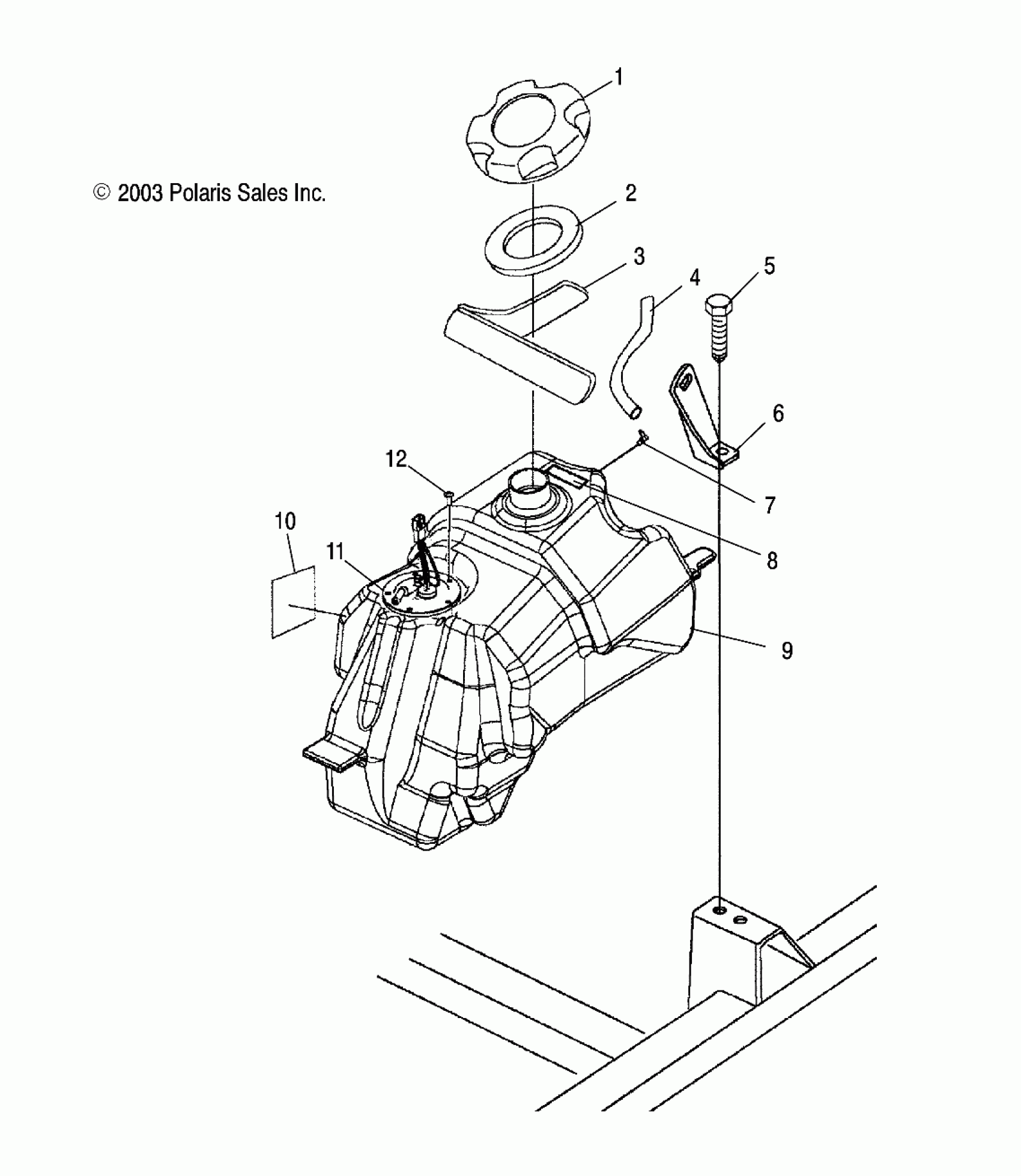

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU FUEL TANK - A04CH68AP/AQ/AU/CU (4987468746A12) Diagram

#

Description
Price

1

Cap, Gas Tank [If built before 7/01/03]

5433687

$20.22

1

Cap, Gas Tank [If built after 7/01/03]

5435324

Unavailable

2

Gasket, Fuel Cap

5812123

$5.65

3

SEAL, FOAM

5812265

$27.99

4

LINE, FUEL

8360009-600

Unavailable

5

SCREW

7517685

$1.59

6

Bracket, Fuel Cover Mount, Rear, LH

5222154

Unavailable

6

Bracket, Fuel Cover Mount, Rear, RH

5222155

Unavailable

7

Vent, Tank

5431053

$19.99

8

Foil, Tank

5812004

Unavailable

9

Asm., Fuel Tank w/Fuel Pump [Incl. 7,8,10-12]

2520311

Unavailable

10

Foil, Tank

5812005

$19.30

11

Gasket

5412421

Unavailable

12

Screw

7518257

$3.79
