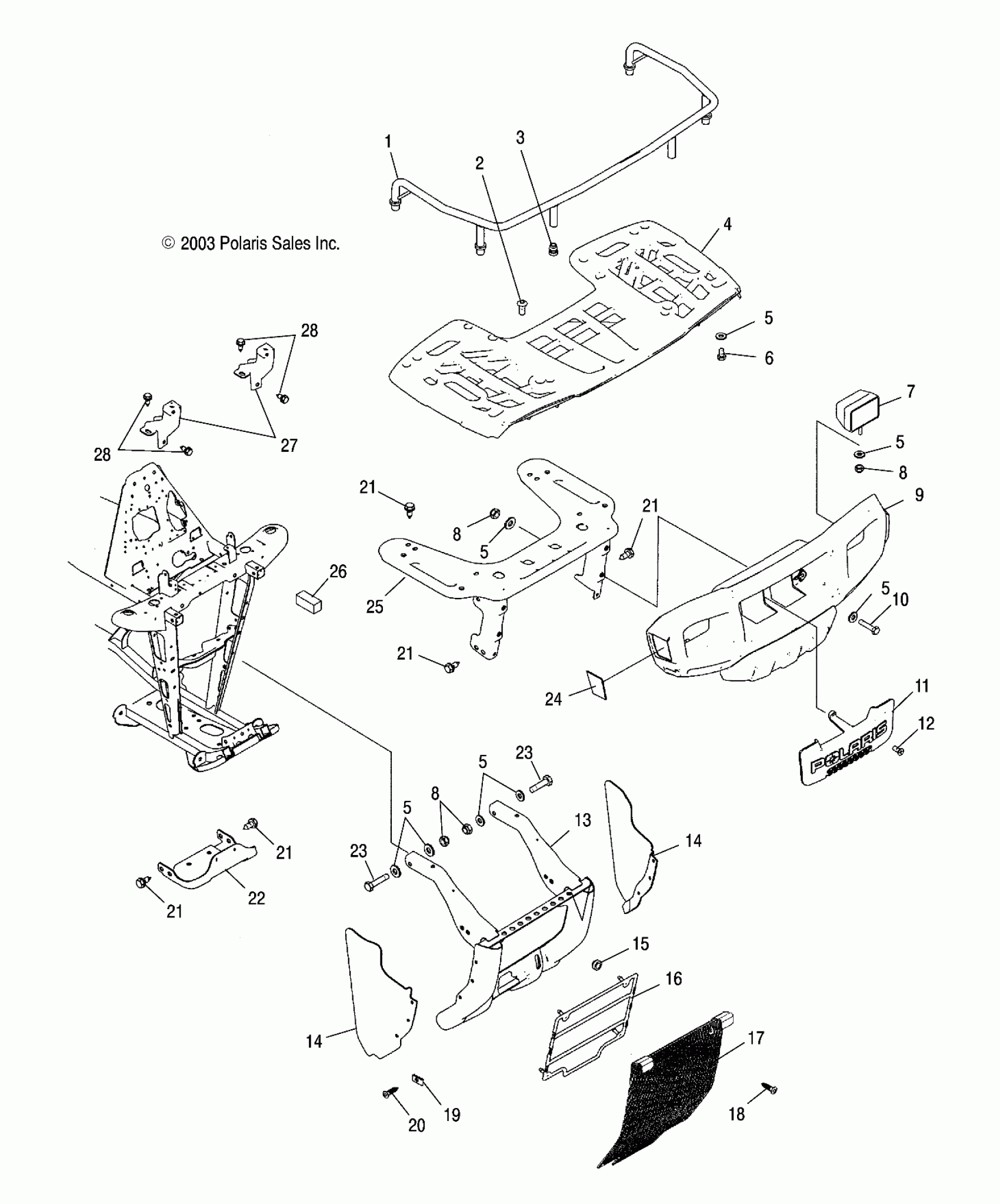

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU FRONT RACK and BUMPER MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A07) Diagram

#

Description
Price

1

Extender, Front Rack (AP)(AQ)

1013972-418

Unavailable

2

SCREW

7517685

$1.59

3

Plug

7081085

$7.27

4

Rack, Front, Black

5435240-070

$231.99

5

WASHER-.344X.688X.063 FL-Y (AP)(AQ)

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y (AP)(AQ)

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y (AP)(AQ)

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y (AP)(AQ)

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y (AP)(AQ)

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y (AP)(AQ)

7558402

$1.49

6

Screw (AP)(AQ)

7517208

$1.99

7

Headlight

2431017

Unavailable

7

Bulb, Replacement, 27W

4030059

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

Asm., Bumper, Front, Black [Incl. Warning Decal](AU)(CU)(AP)

2632757-070

Unavailable

9

BUMPER, FRONT (See Winch Asm. Pg. E1, Ref. 21)(AQ)

-------

Unavailable

10

Screw

7515306

Unavailable

11

Panel

5434699-070

Unavailable

12

SCREW

7512094

$1.59

13

Guard, Brush

1014412-067

Unavailable

14

Shield, Side, Radiator, LH

5434314

$44.99

14

Shield, Side, Radiator, RH

5434315

Unavailable

14

Shield, Side, Radiator, LH

5434314

$44.99

14

Shield, Side, Radiator, RH

5434315

Unavailable

15

Grommet, Rubber Mount

5412504

$3.99

16

Cover, Radiator

5435046

$47.99

17

Grill, Brush Guard

5247507-067

$64.99

18

Screw

7518046

$4.79

19

Nut, U-Type

7670094

$5.59

20

Screw

7512097

$3.99

21

SCREW

7515399

$1.49

21

SCREW

7515399

$1.49

21

SCREW

7515399

$1.49

21

SCREW

7515399

$1.49

21

SCREW

7515399

$1.49

22

Bracket, Bumper, Lower

5245767-067

Unavailable

23

Screw

7512329

$3.99

23

Screw

7512329

$3.99

24

Decal, Reflector, Amber, LH

7171474

Unavailable

24

Decal, Reflector, Amber, RH

7171475

Unavailable

25

Support, Front Rack

1014020-067

$199.98

26

PLUG, FRAME

5810467

Unavailable

27

Support, Front Rack, LH

1014261-067

Unavailable

27

Support, Front Rack, RH

1014262-067

Unavailable

28

SCREW

7512232

$1.49

28

SCREW

7512232

$1.49
