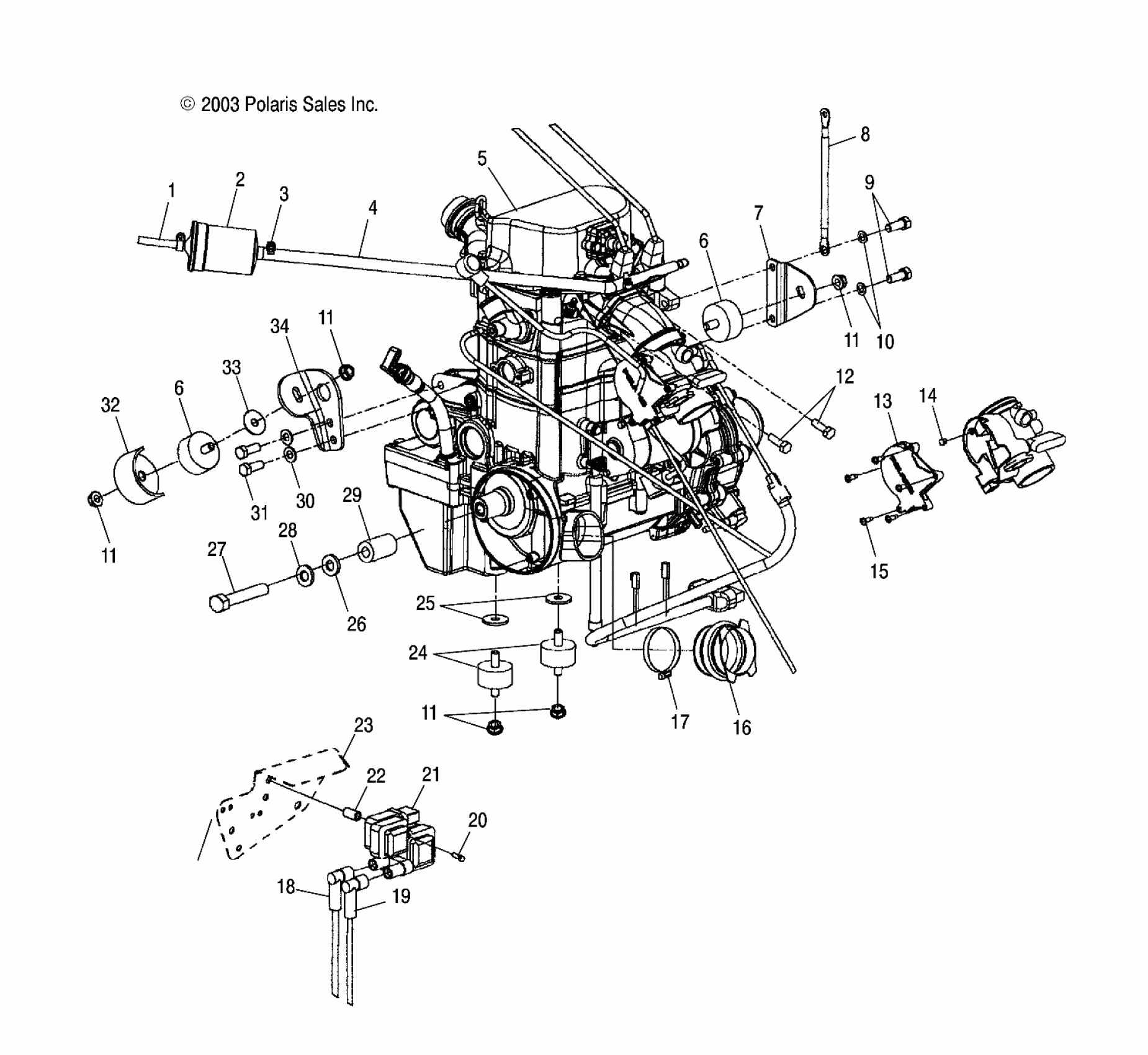

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU ENGINE MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A13) Diagram

#

Description
Price

1

Line, Fuel

8450044-58

Unavailable

2

Filter, Fuel

2520223

$40.46

3

Clamp, Hose

7080417

$9.59

4

Hose, Fuel

8450106

$40.46

5

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty cons

2202856

Unavailable

6

Mount, Rubber, Top

3110044

Unavailable

6

Mount, Rubber, Top

3110044

Unavailable

7

BRACKET, MOUNT, ENGINE, TOP

5247368

$43.99

8

Cable, Ground

4010132

Unavailable

9

Screw

7516714

$3.99

10

WASHER, SPRING LOCK

7552901

$1.49

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

12

SCREW

7516734

$3.19

13

ASM., COVER AND O-RING

1202578

Unavailable

14

Guide, Throttle Cable

3131514

Unavailable

15

SCREW

3131515

$10.39

16

Boot, Clutch Intake

5411944

Unavailable

17

CLAMP, HOSE

7080451

$7.19

18

Wire, Spark Plug (If built after 2/16/04)

4011060

$60.70

18

Wire, Ignition, Black (If built before 2/16/04)

4010845

$67.99

19

Wire, Spark Plug (If built after 2/16/04)

4011059

$65.63

19

Wire, Ignition, Black (If built before 2/16/04)

4010909

$67.99

20

Screw

7518322

$5.79

21

COIL-EFI

4010425

Unavailable

22

SPACER, COIL

5133658

$7.19

23

GUARD, SPLASH, LH/PUMP MOUNT [SEE FRONT CAB PG. A5, REF. 9]

-------

Unavailable

24

Mount, Rubber, Rear

3021119

Unavailable

25

WASHER, FLAT

7555815

$3.99

26

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

27

Screw

7518197

Unavailable

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

BUSHING-.437 X.770 X.50

5430261

$7.19

30

Washer, Spring Lock

7552603

$1.49

31

Bolt

7512492

$1.49

32

BRACKET, TORQUE STOP

5245043

$15.83

33

WASHER

7555823

Unavailable

34

Mount, Engine, Front, Black

5244771-067

$127.59
