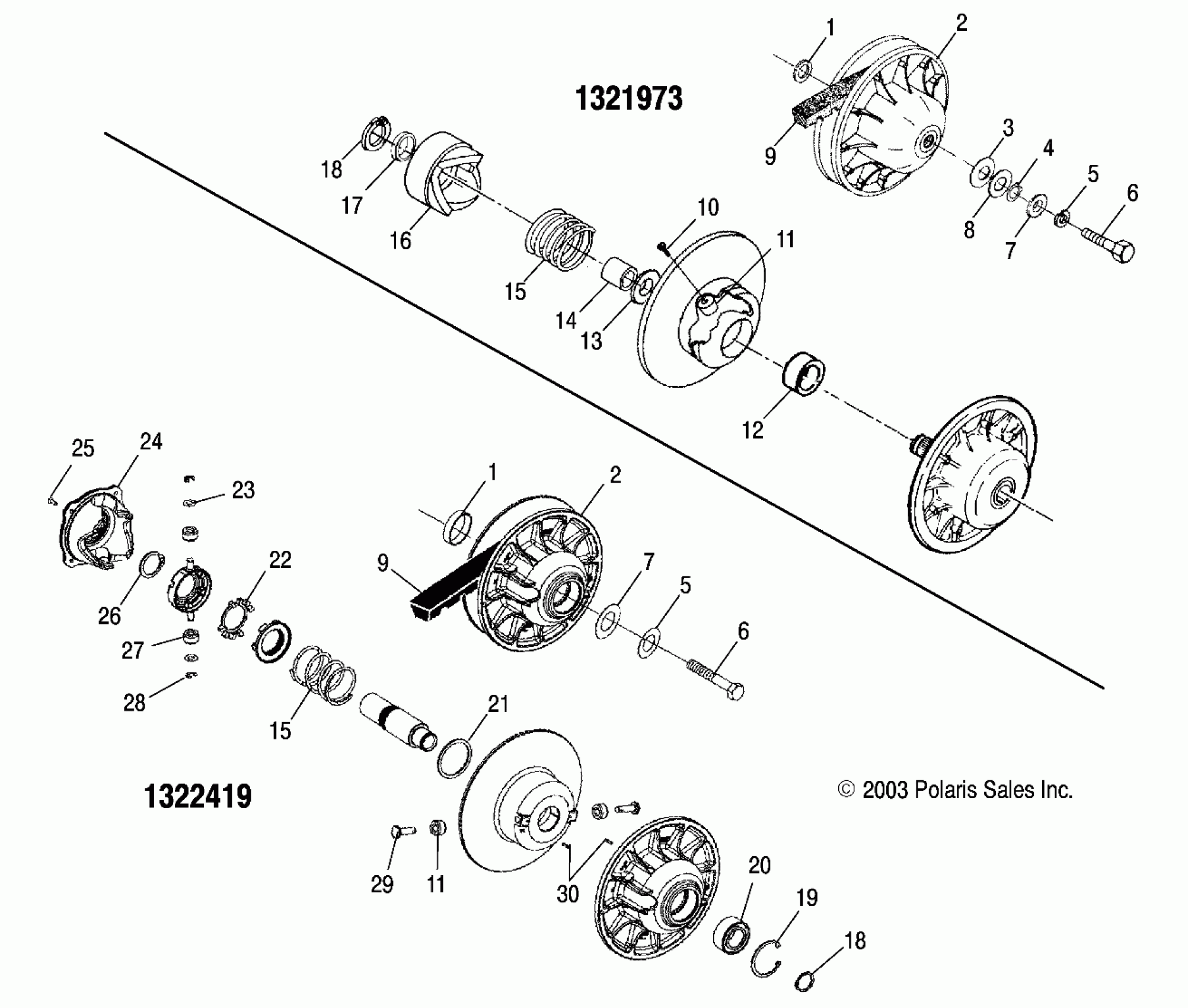

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU DRIVEN CLUTCH - A04CH68AP/AQ/AU/CU (4987468746C04) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch [Incl. 10-14,17,18][If built before 6/01/03]

1321973

Unavailable

2

Asm., Driven Clutch, EBS [Incl. 11,18-23,25-30][If built after 6/01/03]

1322419

$619.99

2

Asm., Driven Clutch [Incl. 10-14,17,18][If built before 6/01/03]

1321973

Unavailable

2

Asm., Driven Clutch, EBS [Incl. 11,18-23,25-30][If built after 6/01/03]

1322419

$619.99

3

Washer

7556203

Unavailable

4

Ring, Retaining

7710461

Unavailable

5

WASHER, SPRING LOCK

7552901

$1.19

5

WASHER, SPRING LOCK

7552901

$1.19

6

BOLT

7515382

$2.38

6

BOLT

7515382

$2.38

7

Washer, Domed (If built before 1/10/04)

5220646

$2.38

7

Washer, Domed (If built after 1/10/04)

5248227

$2.38

7

Washer, Domed (If built before 1/10/04)

5220646

$2.38

7

Washer, Domed (If built after 1/10/04)

5248227

$2.38

8

Bushing

7556010

Unavailable

9

Belt, Drive

3211091

$94.99

9

Belt, Drive

3211091

$94.99

10

Screw

7517323

$13.75

11

Roller, Clutch [1322419]

3234197

$48.56

11

Roller, Taper [1321973]

1321977

$31.75

11

Roller, Clutch [1322419]

3234197

$48.56

11

Roller, Taper [1321973]

1321977

$31.75

12

Bearing

3585710

$19.84

13

WASHER-2.06X2.62X.105-Y

5211115

$3.97

14

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.78

15

Spring, Driven [1321973]

7041635

$48.56

15

Spring, Compression [1322419]

3234199

Unavailable

15

Spring, Driven [1321973]

7041635

$48.56

15

Spring, Compression [1322419]

3234199

Unavailable

16

Ramp, Stationary

5132751

Unavailable

17

Spacer

5210753

$2.38

18

Ring, Retaining [1322419]

3234205

$11.11

18

Ring, Retaining [1321973]

7710448

$3.17

18

Ring, Retaining [1322419]

3234205

$11.11

18

Ring, Retaining [1321973]

7710448

$3.17

19

Ring, Retaining

3234204

$7.94

20

BEARING, BALL

3234203

$29.99

21

WASHER, THRUST

3234200

$8.99

22

Dampener, Clutch

3234206

$74.99

23

Washer, Thrust

3234196

$5.65

24

Asm., Cam

3234208

$267.99

25

SCREW

3234192

$4.76

26

Ring, Retaining

3234194

$13.49

27

Roller, Clutch

3233407

Unavailable

28

Ring, Retaining

3234195

$3.49

29

PIN, ROLLER

3234201

$15.87

30

PIN,SPRING SLOTTED .125X.625

3234202

$3.97
