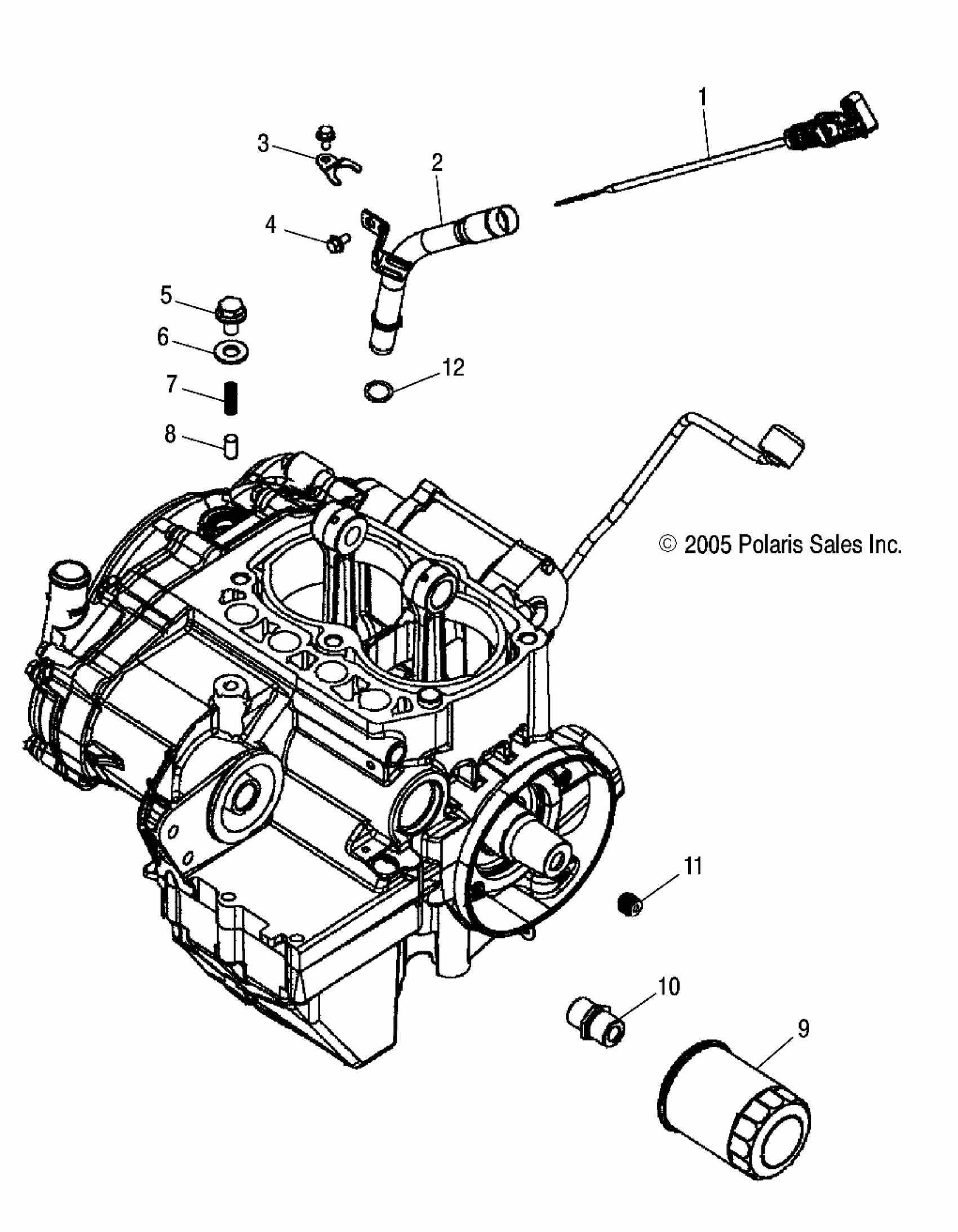

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU DIPSTICK and OIL FILTER - A04CH68AP/AQ/AU/CU (4999200229920022D10) Diagram

#

Description
Price

1

Dipstick

1202109

Unavailable

2

Tube, Oil Fill

1202629

Unavailable

3

Clamp

5245805

$31.99

4

Screw

7517795

$4.79

5

SCREW

7516824

$39.99

6

WASHER

7556005

$5.59

7

Spring, Pressure Relief

7042203

Unavailable

8

PIN, DOWEL

7661127

$12.94

9

FILTER-OIL (10 MICRON)

2540086

$11.99

10

Nipple, Oil Filter

2540115

Unavailable

11

Plug, Socket

7518007

$5.65

12

SEAL, O-RING

5812016

$3.19
