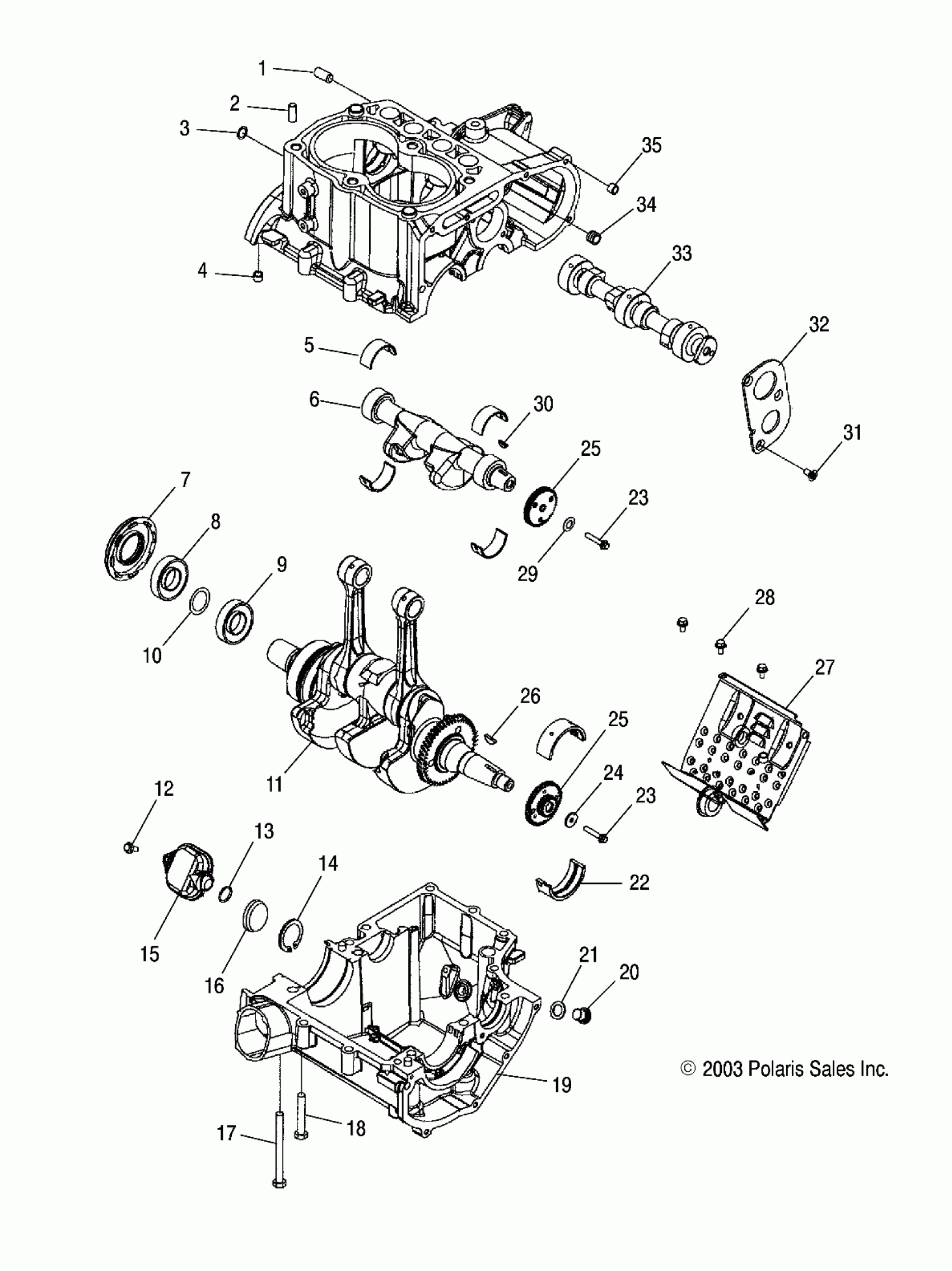

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU CRANKCASE and CRANKSHAFT - A04CH68AP/AQ/AU/CU (4987468746D04) Diagram

#

Description
Price

1

Plug

7518007

$5.65

2

DOWEL

7661175

$5.65

3

PLUG-EXPANSION,19MM

7051530

$8.08

4

PIN-DOWEL,M8 X 16 SS

7663001

$11.11

5

BEARING

5132753

Unavailable

6

Shaft, Balance

5132396

$273.81

7

Seal

5412114

Unavailable

8

BEARING, BALL

3514361

$31.75

9

BEARING, BALL

3514318

$52.37

10

BUSHING

7556194

$3.97

11

Kit, Crankshaft

2202702

Unavailable

12

BOLT

7516603

$10.32

13

SEAL, O-RING

5812016

$3.79

14

RING, RETAINING

7710512

$3.97

15

ASM., OIL PICKUP

1202663

$56.65

16

PLUG

3060004

$15.37

17

SCREW

7517792

$2.38

18

SCREW

7517793

$5.56

19

Kit, Crankcase

2202694

Unavailable

20

PLUG, SOCKET

7052306

$15.37

21

WASHER, COPPER

5812232

$1.59

22

BEARING

3585704

$28.56

23

SCREW

7517865

$11.11

23

SCREW

7517865

$11.11

24

WASHER-RETAINING,8.5X28X3

7555982

$15.99

25

Kit, Gear

2202145

Unavailable

25

Kit, Gear

2202145

Unavailable

26

KEY, WOODRUFF

7721117

$29.99

27

PLATE, BAFFLE

5211785

$49.99

28

SCREW

7518045

$10.32

29

WASHER, SPRING

7556183

$9.52

30

KEY, WOODRUFF

7721131

$23.81

31

SCREW

7517598

$11.33

32

PLATE, THRUST

5244286

Unavailable

33

Kit, Camshaft

2202723

Unavailable

34

PLUG

7052288

Unavailable

35

Plug

7051531

$7.27
