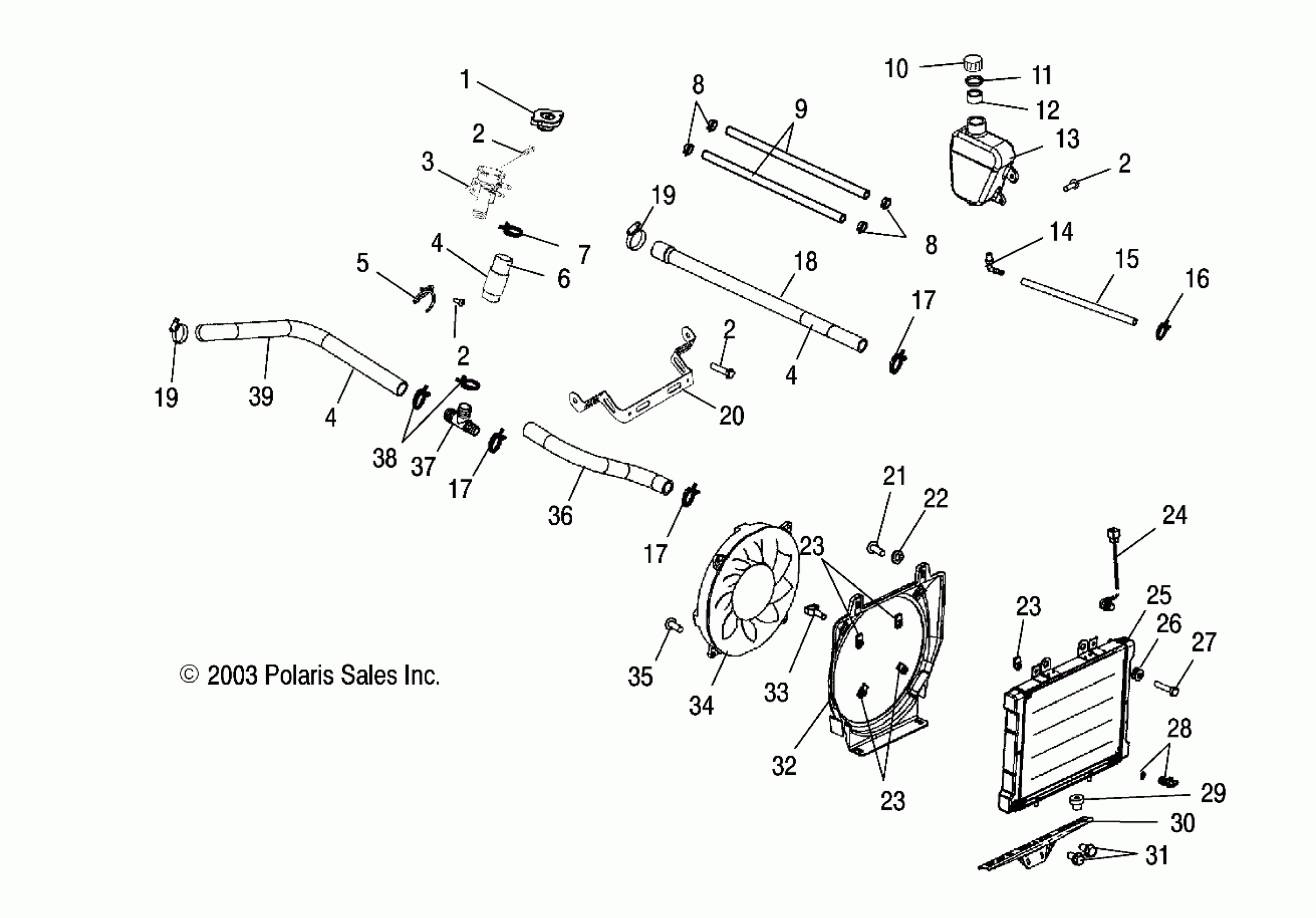

Polaris A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU COOLING SYSTEM - A04CH68AP/AQ/AU/CU (4987468746A10) Diagram

#

Description
Price

1

Cap, Pressure

1240044

Unavailable

2

Screw

7512084

$1.49

2

Screw

7512084

$1.49

2

Screw

7512084

$1.49

2

Screw

7512084

$1.49

3

Filler, Coolant

5435196

Unavailable

4

Guard, Hose

5521597

Unavailable

4

Guard, Hose

5521597

Unavailable

4

Guard, Hose

5521597

Unavailable

5

Retainer, Hose

7042089

$7.03

6

Hose, Filler Neck

5412311

$28.32

7

Clamp, 1 Inch

7080827

Unavailable

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

9

Line, Fuel

8450040-150

Unavailable

10

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

11

GASKET-OVERFLOW CAP

5810279

$2.41

12

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

13

Tank, Surge

5431673

Unavailable

14

Fitting, Barbed, 90 Degree

7052065

$7.19

15

Line, Fuel

8450003-1525

$84.99

16

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

Clamp

7080826

$4.79

17

Clamp

7080826

$4.79

17

Clamp

7080826

$4.79

18

Hose, Engine, Upper

5412391

$40.46

19

CLAMP, HOSE

7080614

$7.19

19

CLAMP, HOSE

7080614

$7.19

20

Bracket, Radiator Mount, Upper

5246656

Unavailable

21

Screw

7518014

$4.39

22

Washer

7556196

$4.23

23

U-Clip

7547197

$6.23

23

U-Clip

7547197

$6.23

23

U-Clip

7547197

$6.23

24

Sensor, Thermal

4010161

$103.99

25

Radiator, 15 FPI

1240190

$437.13

26

Grommet

5411975

$3.19

27

Screw

7515179

$2.39

28

Valve, Drain

7052296

Unavailable

29

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

30

Bracket, Radiator, Lower

5245773-067

$144.99

31

SCREW

7517386

$1.49

32

Shroud, Fan

5434853

Unavailable

33

Clip, Wiring

4010631

$7.99

34

ASM., FAN

2410413

$251.99

35

Screw

7517975

$5.59

36

Hose, Engine, Lower

5412585

$52.60

37

Connector, Tee

7052342

$23.81

38

Clamp

7081047

Unavailable

39

Hose

5412585

$52.60
