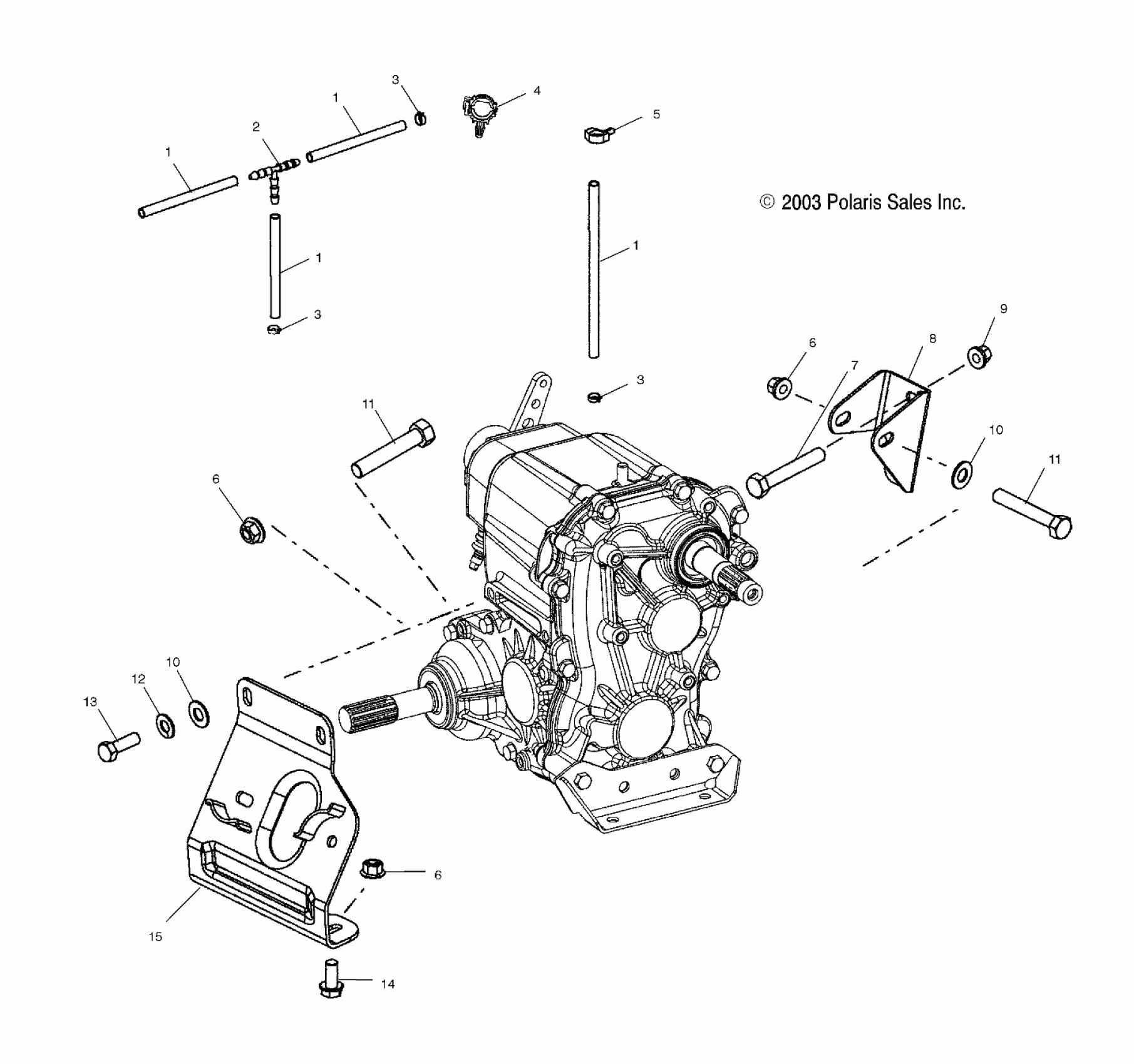

Polaris A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO TRANSMISSION MOUNTING - A04CH68AK/AL/AN/AO (4987318731C12) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

2

T-Fitting

7052075

$9.52

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

3

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

4

Clip

7080756

$4.76

5

Clip

7670102

$2.38

6

NUT, FLANGE, LOCK

7547108

$4.76

6

NUT, FLANGE, LOCK

7547108

$4.76

6

NUT, FLANGE, LOCK

7547108

$4.76

7

Bolt, Carriage

7512377

$4.76

8

Bracket, Mount, Rear Transmission

5247348

Unavailable

9

Nut, Flange

7542321

$1.19

10

Washer, Flat

7555976

$3.97

10

Washer, Flat

7555976

$3.97

11

SCREW

7515417

$4.76

11

SCREW

7515417

$4.76

12

Washer, Spring Lock

7552603

$0.79

13

Bolt

7515522

$3.97

14

Screw

7517289

$3.29

15

Mount, Rear Engine [If built before 2/03/03]

1013134-067

Unavailable
