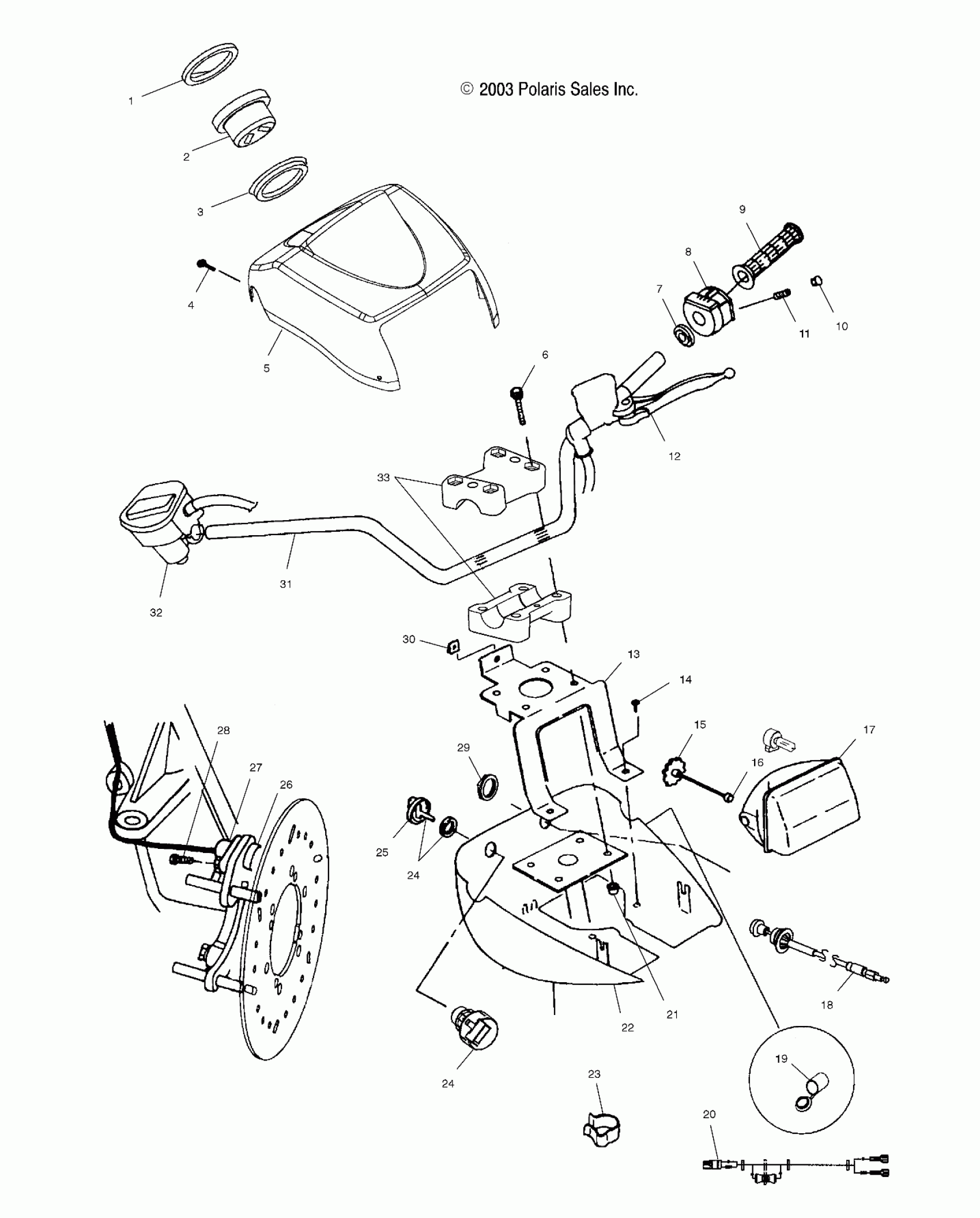

Polaris A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO HANDLEBAR and HEADLIGHT POD - A04CH68AK/AL/AN/AO (4987438743C01) Diagram

#

Description
Price

1

Bezel

5434380

Unavailable

2

Cluster

3280431

$343.99

3

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

5

Pod, Headlight, Upper [AK]

5434706-400

Unavailable

5

Pod, Headlight, Upper [AL]

5434706-053

Unavailable

5

Pod, Headlight, Upper [AN]

5434706-341

Unavailable

5

Pod, Headlight, Upper [AO]

5435239-455

Unavailable

6

SCREW

7517238

$4.79

7

Spacer, Switch, LH

5433903

Unavailable

8

Switch, Handlebar

4010592

$38.60

9

Grip, Handlebar

5433834-070

$24.27

10

Plug

5432952

$5.59

11

SCREW, SET

7517625

$4.79

12

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG. B13 FOR DETAILS]

-------

Unavailable

13

Bracket, Pod Mounting

5244969-067

$44.99

14

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

15

KNOB, ADJUSTING

4032079

$23.99

16

Rod, Adjusting

4032078

Unavailable

17

KIT-HARNESS,HEADLIGHT

2204143

$71.99

17

BULB-HEADLIGHT,50 WATT

4010253

$34.99

17

Asm., Headlamp

2410268

$109.27

18

Cable, Choke (If built before 8/11/03)

7081008

$79.99

18

Cable, Choke (If built after 8/11/03)

7081176

$77.21

19

Receptacle, Pod Mount, 12V

4010638

$24.27

20

Harness, Light, Pod/Accy.

2461045

Unavailable

21

Nut, Nylok

7542122

$1.49

22

Pod, Headlight, Lower [AL][AO]

5433762-070

$114.99

22

Pod, Headlight, Lower [AK]

5433762-177

$93.08

22

Pod, Headlight, Lower [AN]

5433762-382

Unavailable

23

Clip, Cable Retaining

7080631

$6.29

24

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

24

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

24

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

24

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

24

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

24

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

25

KEY SWITCH KEY COVER

5433534

$12.35

26

CAP

5132382

$23.99

27

Sensor

4010298

$111.99

28

Screw

7517658

$5.59

29

Nut, Choke

7080922

$3.19

30

CLIP, SCREW

7670127

$9.59

31

Tube, Handlebar

5242987-067

$114.99

32

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B10, REF. 5]

-------

Unavailable

33

Block, Handlebar [If built after 9/29/03]

5631973

$27.99

33

Block, Handlebar, Pegged [If built after 9/29/03]

5631972

$27.99

33

Block, Handlebar, Pegged [If built before 9/29/03]

5631146

$10.71

33

Block, Handlebar [If built before 9/29/03]

5631147

Unavailable
