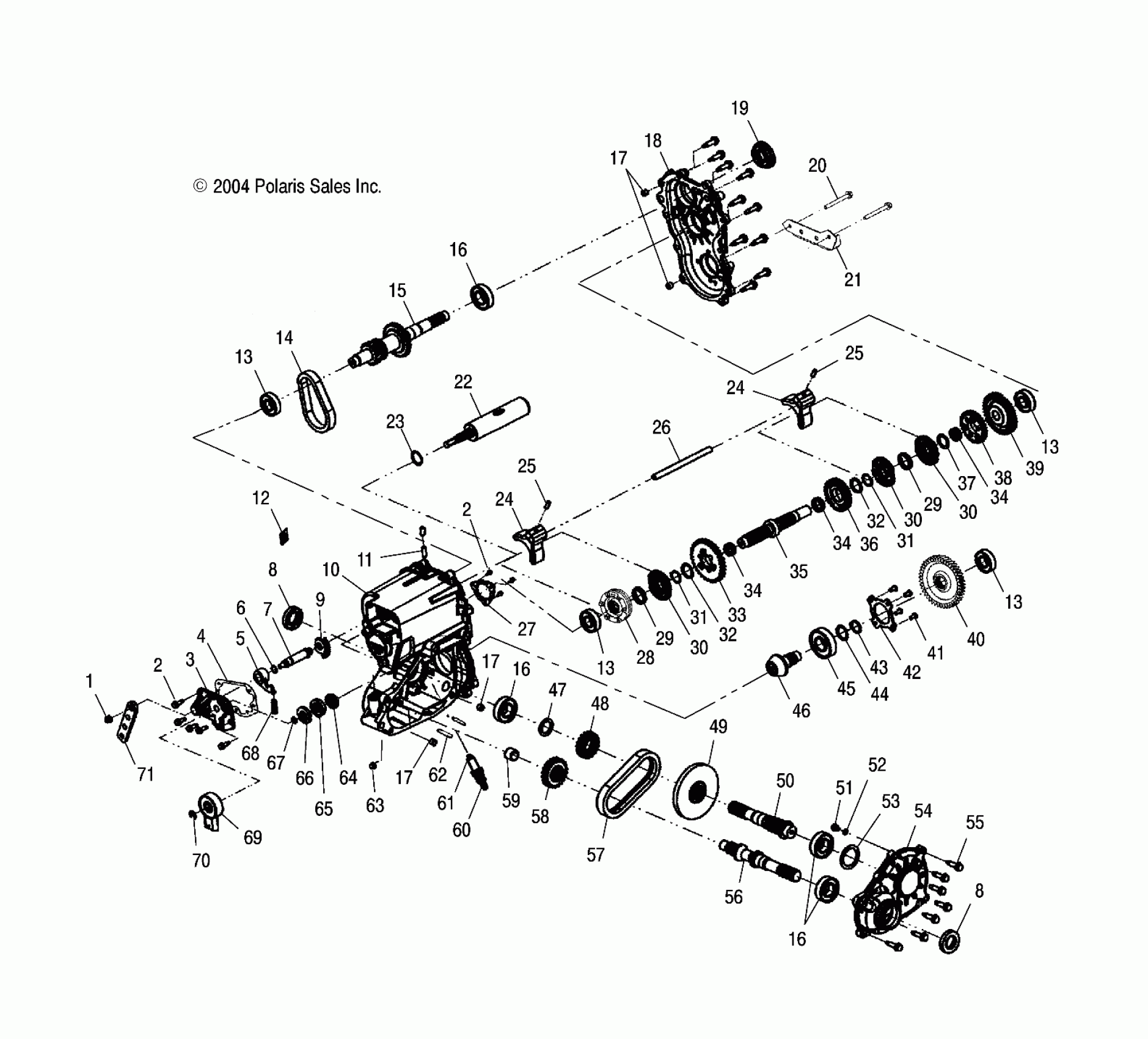

Polaris A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO GEARCASE - A04CH68AK/AL/AN/AO (4994199419D02) Diagram

#

Description
Price

-

Asm., Main Gearcase

1341473

Unavailable

1

NUT

3233961

$2.79

2

SCREW

3233826

$9.59

2

SCREW

3233826

$9.59

3

Cover w/Pins

3234188

$107.99

4

GASKET

-------

Unavailable

5

Pawl, Detent

3233829

$31.99

6

O-RING

3233869

$5.59

7

SHAFT, SHIFT

3233831

$59.99

8

Seal

3233788

$31.99

8

Seal

3233788

$31.99

9

GEAR-SECTOR,31T

3233832

$31.99

10

Gearcase, Main

3234128

$487.49

11

TUBE, VENT

3233524

$7.19

12

LABEL, OIL FILL/LEVEL CHECK

3234143

Unavailable

13

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

13

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

13

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

13

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

14

Chain, Silent

3233036

Unavailable

15

Shaft, Input [32/16/15]

3233890

Unavailable

16

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

16

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

16

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

17

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.19

17

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.19

17

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.19

18

Cover, LH

3234127

Unavailable

19

Seal

3233874

$31.99

20

SCREW

3234042

$7.19

21

Bracket, Mount

3234142

$27.99

22

Drum, Shift

3233910

Unavailable

23

O-Ring

3233548

$27.99

24

Subasm., Shift Fork w/Pin [Incl. 25]

3234141

Unavailable

24

Subasm., Shift Fork w/Pin [Incl. 25]

3234141

Unavailable

25

Pin, Dowel

-------

Unavailable

25

Pin, Dowel

-------

Unavailable

26

RAIL, SHIFT SHAFT

3233860

$52.79

27

PLATE, PARK

3233915

$39.99

28

ENGAGEMENT DOG

3234040

$167.19

29

SPRING, WAVE

3234144

$26.39

29

SPRING, WAVE

3234144

$26.39

30

ENGAGEMENT DOG

3233875

$155.99

30

ENGAGEMENT DOG

3233875

$155.99

30

ENGAGEMENT DOG

3233875

$155.99

31

RING, RETAINING

3233850

$10.39

31

RING, RETAINING

3233850

$10.39

32

WASHER

3233851

$10.39

32

WASHER

3233851

$10.39

33

GEAR, 33T

3233852

$231.99

34

BEARING, NEEDLE

3233718

$35.99

34

BEARING, NEEDLE

3233718

$35.99

34

BEARING, NEEDLE

3233718

$35.99

35

Shaft, Reverse

3233853

$267.13

36

Sprocket, 24T

3233854

$149.59

37

WASHER

3233855

$10.39

38

Gear, 28T

3233912

Unavailable

39

GEAR, 51T

3234136

$223.99

40

GEAR, 56T

3234137

Unavailable

41

SCREW

3234086

$5.59

42

COVER, BEARING

3234122

$65.99

43

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

44

SPACER

3233357

$21.99

45

Bearing, Ball

3233607

$36.41

46

SUBASM-GRND SPIRL BVL(411466) [Incl. 49]

3234911

$371.99

47

WASHER,THRUST

3233619

$21.99

48

SPROCKET, 22T/18T

3233873

$99.99

49

SUBASM-GRND SPIRL BVL(411466) [Incl. 46]

3234911

$371.99

50

SHAFT-OUTPUT,MAIN,REAR

3233911

$189.19

51

THRUST BUTTON

3233582

$7.91

52

SHIM

3233583

$26.39

53

SHIM

3233611

$26.39

54

COVER, OUTPUT, FRONT

3234130

$243.99

55

SCREW

3234114

$7.19

56

SHAFT,FRONT OUTPUT

3233625

$139.99

57

CHAIN, SILENT

3233784

$87.99

58

SPROCKET-22T

3233844

$127.59

59

BUSHING-GARLOCK

3233552

$23.99

60

Clamp, Tie

3234013

Unavailable

61

Lockout, Park

3233917

Unavailable

62

PIN, DOWEL

3233247

$7.19

63

NUT

3234043

$5.59

64

GEAR, 16T

3233839

$31.99

65

DISC, LOCKOUT

3233838

$26.39

66

Star, Detent

3234082

$35.19

67

O-RING

3233076

$6.39

68

SPRING, COMPRESSION

3233830

$10.39

69

SWITCH

3233835

Unavailable

70

RING, RETAINING

3233834

$10.39

71

Bellcrank

3233906

Unavailable
