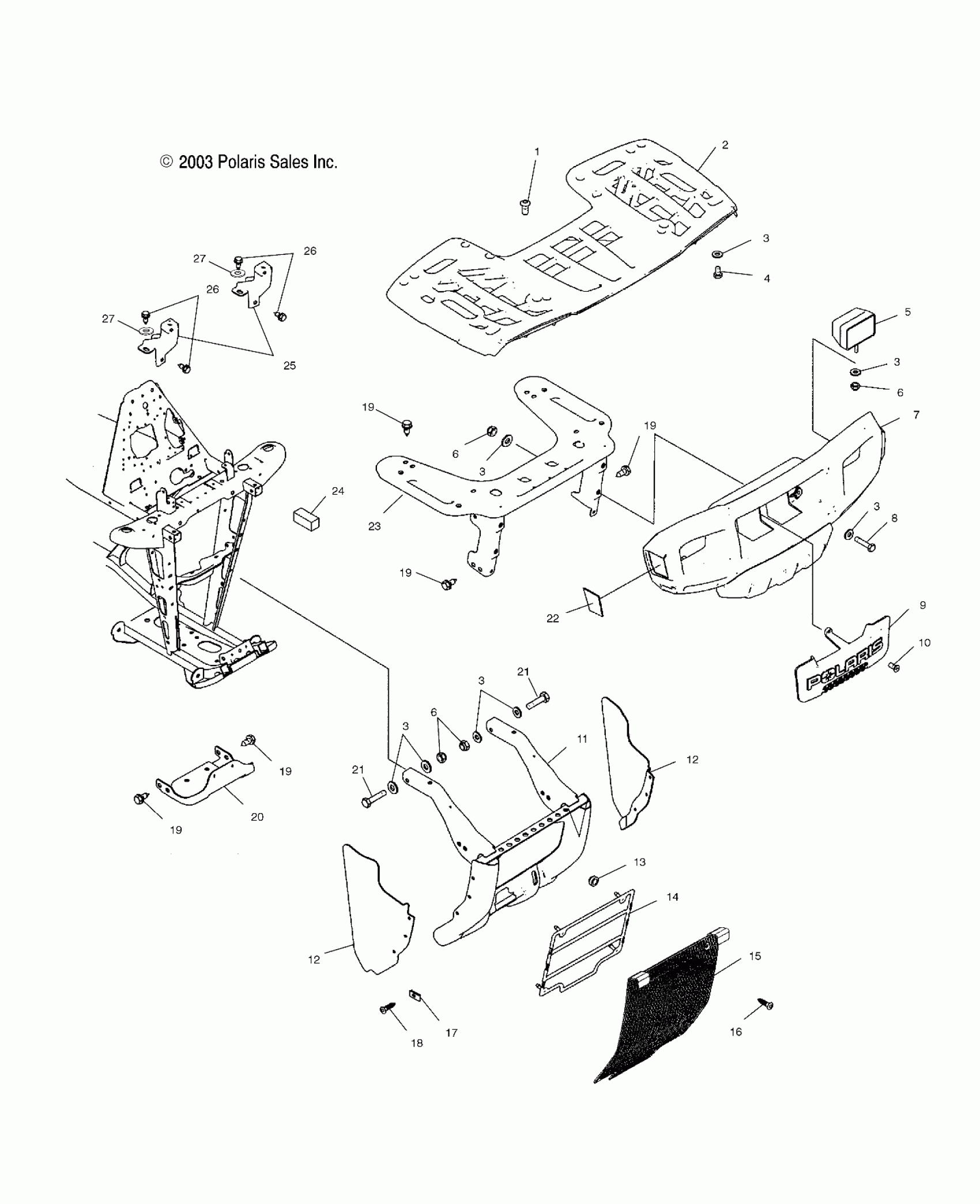

Polaris A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO FRONT RACK and BUMPER MOUNTING - A04CH68AK/AL/AN/AO (4987438743A07) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Rack, Front, Black

5435240-070

$230.16

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

SCREW

7517208

$1.98

5

Headlight

2431017

Unavailable

5

Bulb, Replacement, 27W

4030059

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

Asm., Bumper, Front, Black [Incl. Warning Decal]

2632757-070

Unavailable

8

Screw

7515306

Unavailable

9

Panel

5434699-070

Unavailable

10

SCREW

7512094

$1.59

11

Guard, Brush

1014412-067

Unavailable

12

Shield, Side, Radiator, LH

5434314

$42.74

12

Shield, Side, Radiator, RH

5434315

Unavailable

12

Shield, Side, Radiator, LH

5434314

$42.74

12

Shield, Side, Radiator, RH

5434315

Unavailable

13

Grommet

5412504

$3.97

14

Cover, Radiator

5435046

$52.60

15

Grill, Brush Guard

5247507-067

$64.99

16

Screw

7518046

Unavailable

17

Nut, U-Type

7670094

$5.56

18

Screw

7512097

$3.97

19

SCREW

7515399

$1.19

19

SCREW

7515399

$1.19

19

SCREW

7515399

$1.19

19

SCREW

7515399

$1.19

19

SCREW

7515399

$1.19

20

Bracket, Bumper, Lower

5245767-067

Unavailable

21

Screw

7512329

$3.97

21

Screw

7512329

$3.97

22

Decal, Reflector, Amber, LH

7171474

Unavailable

22

Decal, Reflector, Amber, RH

7171475

Unavailable

23

Support, Front Rack

1014020-067

$199.98

24

PLUG, FRAME

5810467

Unavailable

25

Support, Front Rack, LH

1014261-067

Unavailable

25

Support, Front Rack, RH

1014262-067

Unavailable

26

SCREW

7512232

$1.19

26

SCREW

7512232

$1.19

27

WASHER, FLAT

7555960

$3.97

27

WASHER, FLAT

7555960

$3.97
