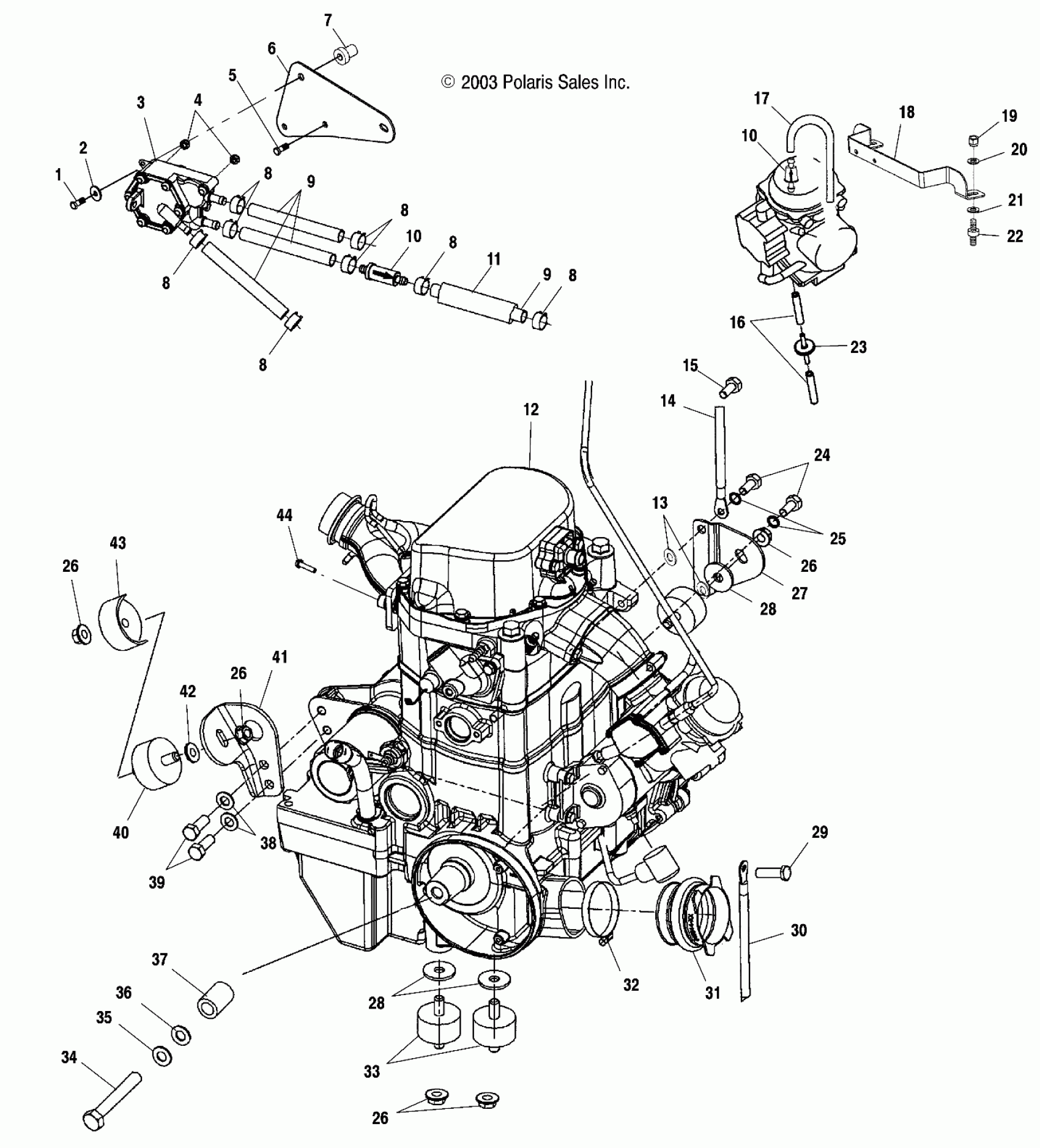

Polaris A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO ENGINE MOUNTING - A04CH68AK/AL/AN/AO (4987438743A13) Diagram

#

Description
Price

1

SCREW

7517867

$1.59

2

Washer, Flat

7558301

$1.49

3

Pump, Fuel

2520227

$79.99

4

NUT-M5X.8,HX NYL-Y

7546601

$1.49

5

Bolt

7512329

$3.99

6

Strap, Fuel Pump Mounting

5243829

Unavailable

7

Nut, Well

7541923

$5.59

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

9

Line, Fuel

8450040-600

Unavailable

9

Line, Fuel

8450040-600

Unavailable

10

FILTER

2530009

$5.65

10

FILTER

2530009

$5.65

11

Sheath, Foil

8450080-50

Unavailable

12

Kit, Short Block, ATV NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty

2202855

Unavailable

13

Washer [If built before 10/02/03]

7555770

Unavailable

14

Cable, Ground, Engine

4010132

Unavailable

15

SCREW

7517386

$1.49

16

LINE, FUEL

8360009-600

Unavailable

17

Hose, Formed, Vent

5412287

$10.71

18

Bracket, Carburetor Mount

5247141

Unavailable

19

NUT

7542105

$3.99

20

Washer, Flat

7558301

$1.49

21

WASHER

7558203

$3.19

22

Mount, Carb

3110050

$12.99

23

VALVE, CHECK

7051011

Unavailable

24

Screw

7516714

$3.99

25

WASHER, SPRING LOCK

7552901

$1.49

26

NUT, FLANGE LOCK

7547108

$4.79

26

NUT, FLANGE LOCK

7547108

$4.79

26

NUT, FLANGE LOCK

7547108

$4.79

26

NUT, FLANGE LOCK

7547108

$4.79

27

Bracket, Mount, Top [If built after 10/02/03]

5247368

$43.99

27

Bracket, Mount, Top [If built before 10/02/03]

5244622-067

Unavailable

28

WASHER, FLAT

7555823

$3.99

28

WASHER, FLAT

7555823

$3.99

29

Screw

7517868

$7.99

30

Cable, Black

4010470

Unavailable

31

Boot, Intake

5411944

Unavailable

32

CLAMP, HOSE

7080451

$7.19

33

Mount, Rubber

3021119

Unavailable

34

Screw

7518197

Unavailable

35

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

36

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

37

BUSHING-.437 X.770 X.50

5430261

$7.19

38

Washer, Spring Lock

7552603

$1.49

39

Screw

7512492

$1.49

40

Mount, Rubber, Top

3110044

Unavailable

41

Mount, Lower, Front

5244771-067

$127.59

42

WASHER, FLAT

7555823

Unavailable

43

Bracket, Torque Stop

5245043-067

Unavailable

44

SCREW

7516734

$3.19
