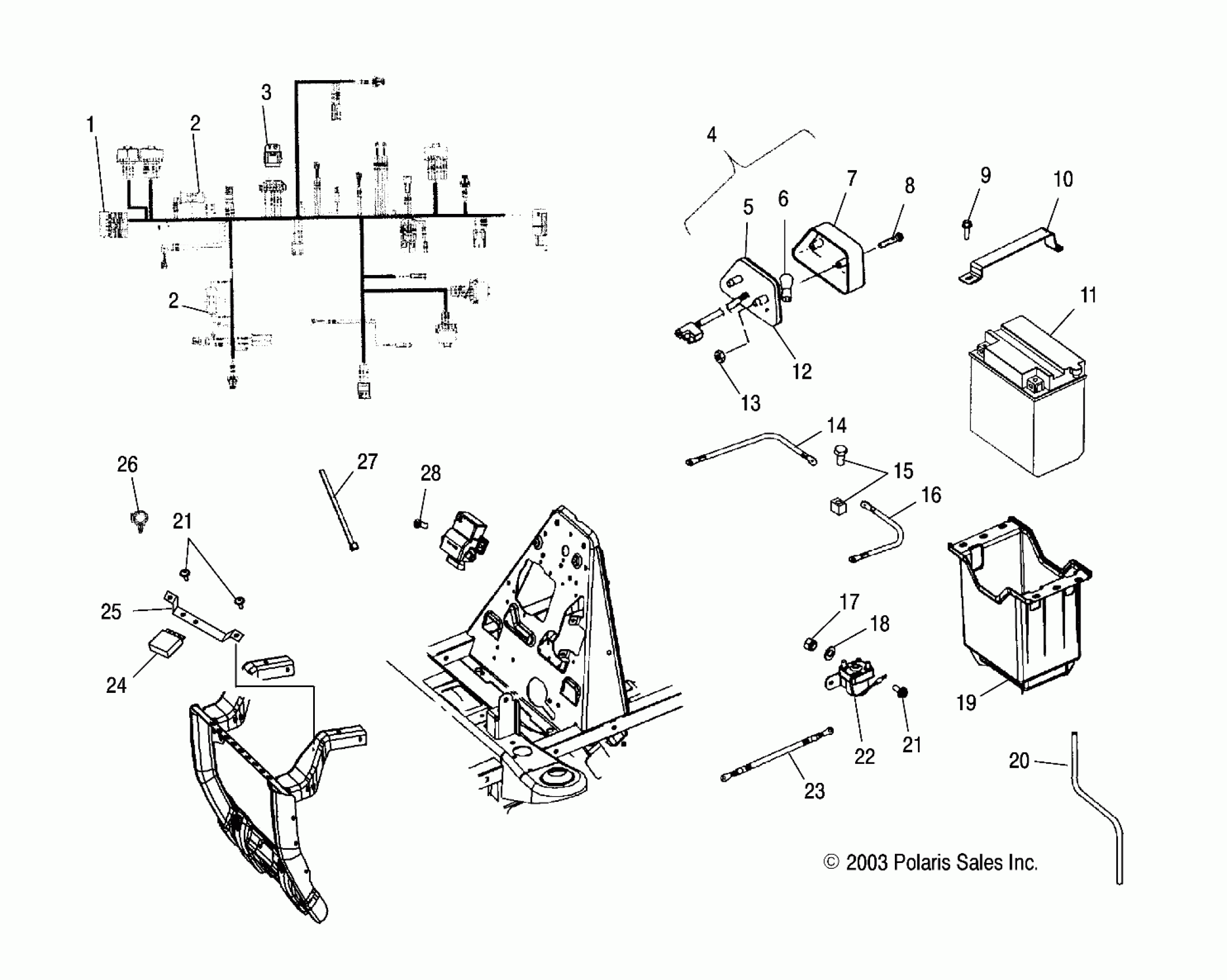

Polaris A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO ELECTRICAL/TAILLIGHT - A04CH68AK/AL/AN/AO (4987438743C09) Diagram

#

Description
Price

1

KIT, FUSIBLE LINK, .8MM

2202607

$39.68

1

Harness, Main

2461208

Unavailable

2

Breaker, Circuit, 20 AMP

2410323

$68.79

2

Breaker, Circuit, 20 AMP

2410323

$68.79

3

Kit, Harness, Resistor Module

2204890

$161.49

4

Asm., Taillight, 12V [Incl. 7-13]

2410320

$63.49

5

Gasket, Taillight

4032045

$4.03

6

Bulb, Taillight

4030043

$6.46

7

Lens, Taillight

4032046

$32.37

8

Screw, Taillight

4032029

$4.76

9

SCREW

7517386

$1.19

10

STRAP, BATTERY HOLDDOWN

5247376

$15.19

11

Battery, 30 AMP

4010630

$147.60

12

Backing, Taillight/Brake Light

4032064

$83.33

13

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

14

Cable

4010470

Unavailable

15

Kit, Battery Bolt

2202099

$5.99

16

Cable, Battery/Solenoid

4010471

Unavailable

17

NUT

7542105

$3.97

18

WASHER, SPRING LOCK

7552801

$1.59

19

Box, Battery

5434037

$28.32

20

Tube, Battery Vent

5432077

Unavailable

21

SCREW

7512024

$4.76

21

SCREW

7512024

$4.76

22

Switch, Magnetic

3087196

$60.70

23

CABLE, SOLENOID/STARTER

4010376

$48.56

24

Rectifier, Regulator (If built before 4/05/04)

4010929

$198.32

24

Rectifier, Regulator (If built after 4/05/04)

4011053

$649.99

25

Sink, Heat

5133182

Unavailable

26

Clip, Rosebud [Small]

4020139

$4.76

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

Screw

7512027

$1.19
