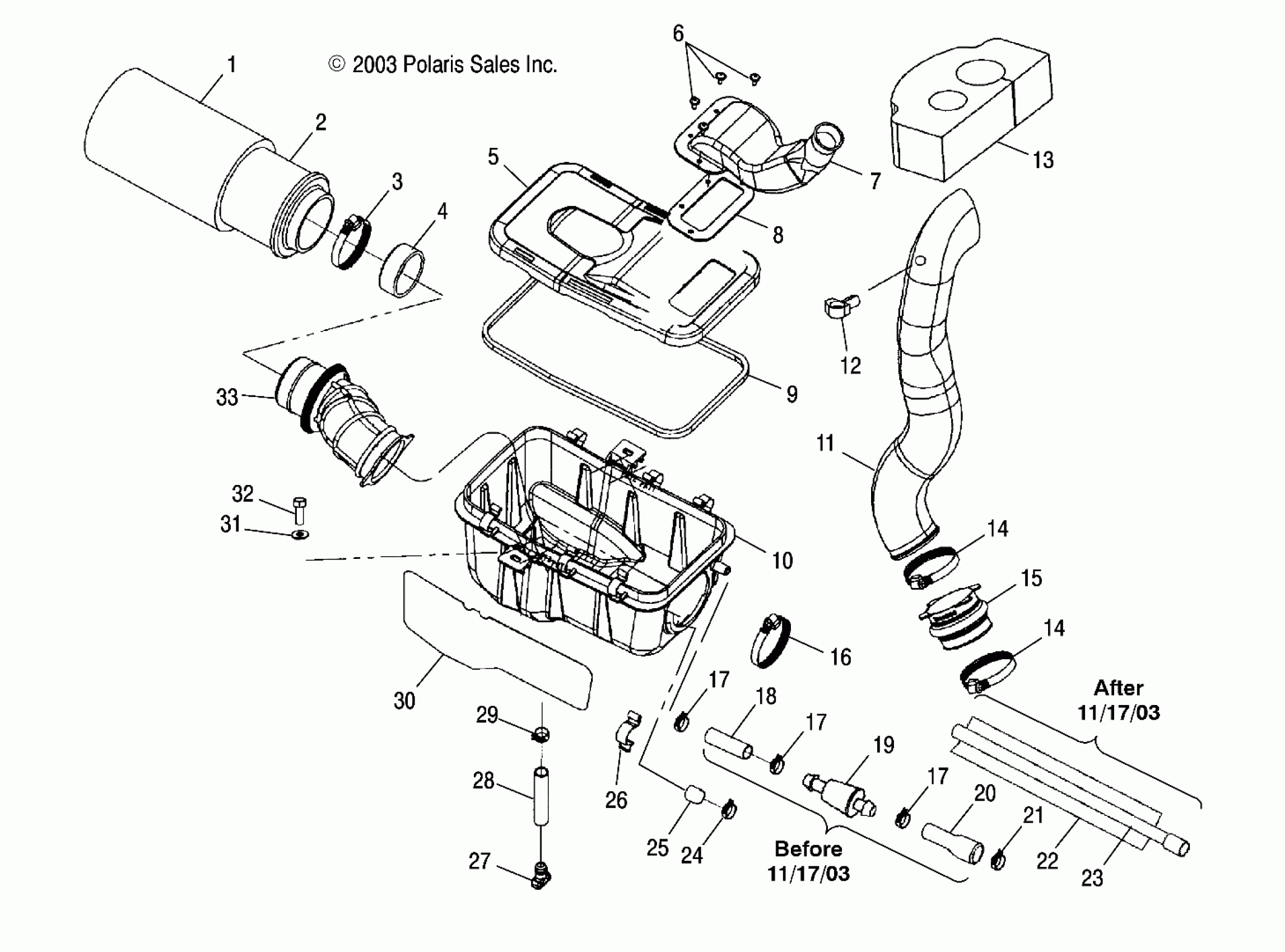

Polaris A04CH68AK SPORTSMAN 700 - A04CH68AK/AL/AN/AO AIR BOX - A04CH68AK/AL/AN/AO (4987438743B01) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

FILTER, AIR INTAKE

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Sleeve

5433847

$13.59

5

Cover, Air Box

5432868

$51.99

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Duct, Air Inlet

5434013

Unavailable

8

Gasket, Intake

5411422

$6.63

9

Seal, Air Box Cover

5811482

Unavailable

10

Box, Air

5433678

$127.99

11

Duct, Clutch Air Inlet

5434044

$114.99

12

Clip

7670102

$2.39

13

Seal, Foam

5812316

$32.37

14

CLAMP, HOSE

7080451

$7.19

14

CLAMP, HOSE

7080451

$7.19

15

BOOT, INTAKE [SEE ENGINE MOUNTING PG. A14, REF. 31]

-------

Unavailable

16

Clamp, Narrow Band

7080511

$4.79

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

18

Line, Breather (If built before 11/17/03)

8450073-600

Unavailable

19

Filter, Breather (If built before 11/17/03)

2530029

$6.39

20

Hose, Breather, Formed (If built before 11/17/03)

5411966

$10.51

21

Clamp

7080694

$6.53

22

Sheath, Reflective Sleeve (If built after 11/17/03)

8450108-34

Unavailable

23

Hose, Breather (If built after 11/17/03)

5412615

Unavailable

24

Clamp, Hose

7080534

$1.59

25

Cap, End

5433396

$4.79

26

CLIP-AIR BOX

5242044

$9.59

27

Plug, Trap (If built after 10/04/04)

5435299

$6.39

27

Plug, Trap (If built before 10/04/04)

5432377

Unavailable

28

Line, Fuel

8450059-150

Unavailable

29

Clamp, Hose

7080650

$3.99

30

Foil, Air Box

5811650

Unavailable

31

Washer, Flat

7558301

$1.49

32

Screw

7515179

$2.39

33

Boot, Carb

5412066

$39.99
