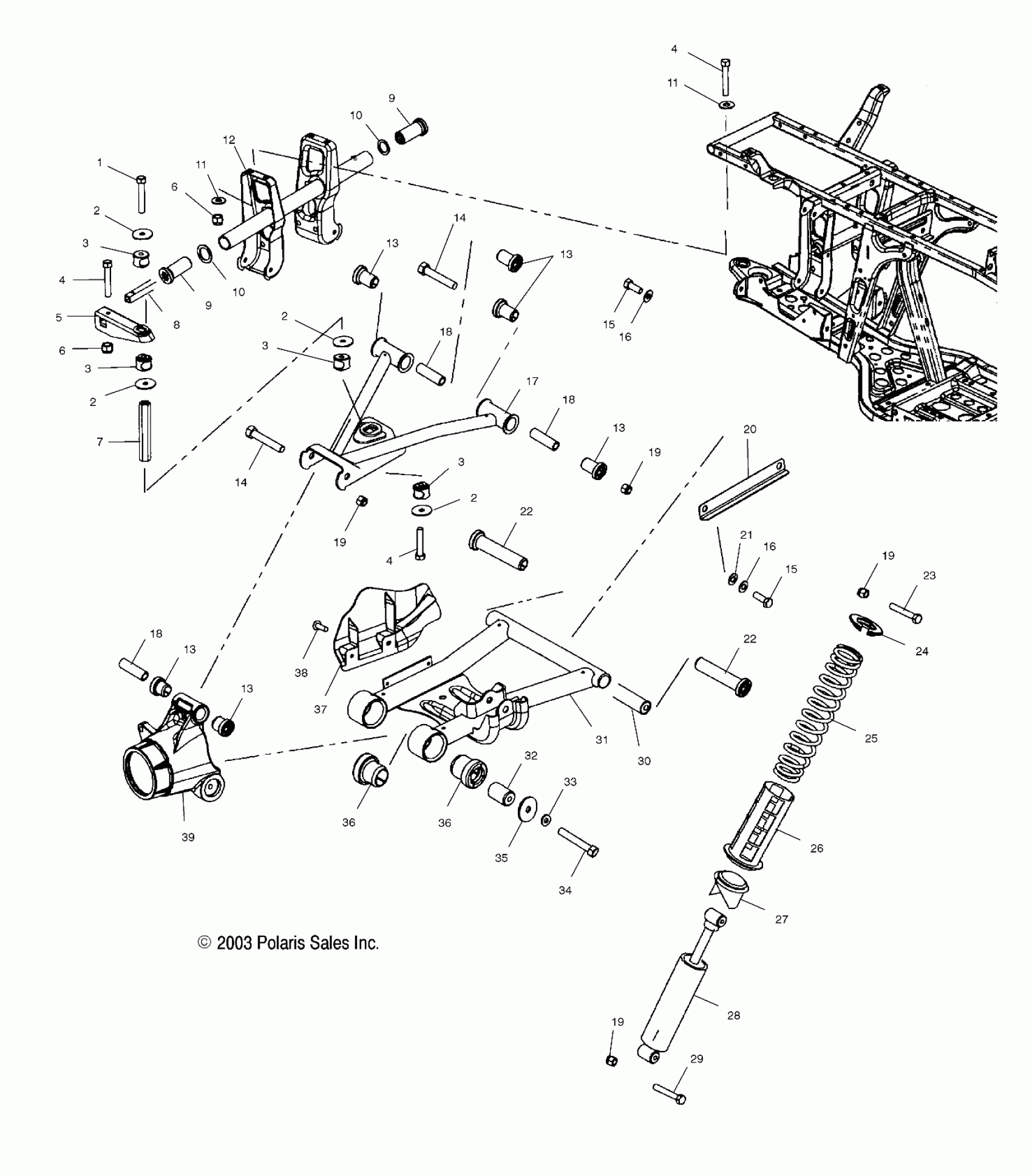

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV REAR SUSPENSION - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C07) Diagram

#

Description
Price

1

SCREW

7517231

$7.14

2

Washer, Flat

7555761

$2.38

2

Washer, Flat

7555761

$2.38

2

Washer, Flat

7555761

$2.38

2

Washer, Flat

7555761

$2.38

3

BUSHING, STABILIZER

5432598

$6.35

3

BUSHING, STABILIZER

5432598

$6.35

3

BUSHING, STABILIZER

5432598

$6.35

3

BUSHING, STABILIZER

5432598

$6.35

4

Bolt

7512329

$3.97

4

Bolt

7512329

$3.97

4

Bolt

7512329

$3.97

5

Arm, Stabilizer Bar

1580107-067

$62.92

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

ROD, LINKAGE, STABILIZER

5020827

$52.60

8

Bar, Stabilizer Tube

5334114-067

$116.17

9

Bushing, Stabilizer Tube

5434549

$8.73

9

Bushing, Stabilizer Tube

5434549

$8.73

10

Washer

7555939

$3.97

10

Washer

7555939

$3.97

11

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

11

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

12

Support, Stabilizer

1541801-067

$125.46

13

Bushing, A-Arm, Short

5434548

$2.38

13

Bushing, A-Arm, Short

5434548

$2.38

13

Bushing, A-Arm, Short

5434548

$2.38

13

Bushing, A-Arm, Short

5434548

$2.38

13

Bushing, A-Arm, Short

5434548

$2.38

14

SCREW

7515472

$2.38

14

SCREW

7515472

$2.38

15

Screw

7512492

$1.19

15

Screw

7512492

$1.19

16

Washer, Spring Lock

7552603

$0.79

16

Washer, Spring Lock

7552603

$0.79

17

Arm, Control, Upper, LH

1014320-293

Unavailable

17

Arm, Control, Upper, RH

1014321-293

$121.02

17

Arm, Control, Upper, LH (AT)(AV)

1014320-067

$116.17

17

Arm, Control, Upper, RH (AT)(AV)

1014321-067

$116.17

18

SHAFT, A-ARM, SHORT

5020826

$12.13

18

SHAFT, A-ARM, SHORT

5020826

$12.13

18

SHAFT, A-ARM, SHORT

5020826

$12.13

19

Nut, Nylok

7542439

$1.19

19

Nut, Nylok

7542439

$1.19

19

Nut, Nylok

7542439

$1.19

19

Nut, Nylok

7542439

$1.19

20

Strap, Rear Skid Plate

5245140-067

Unavailable

21

Washer, Flat

7555806

$0.79

22

Bushing, A-Arm, Long

5434551

$5.56

22

Bushing, A-Arm, Long

5434551

$5.56

23

Screw

7515433

$1.59

24

Retainer, Spring

5630885

$10.32

25

Spring, Compression (AT)(AV)(If built after 6/16/03)

7042311-067

$94.99

25

Spring, Compression (AT)(AV)(If built before 6/16/03)

7041453-067

$94.99

25

Spring, Compression (If built before 6/16/03)

7041453-293

$94.99

25

Spring, Compression (If built after 6/16/03)

7042311-293

$94.99

26

Sleeve, Shock Protector (If built after 6/01/04)

5435273

$44.51

26

Sleeve, Shock Protector (If built before 6/01/04)

5433551

$44.51

27

CAM, ADJUSTING, SPRING

5631014

$36.41

28

Shock, Rear

7041959

$137.76

29

Screw

7515415

$1.19

30

Shaft, A-Arm

5133806

$33.24

31

Control, Lower, LH (AT)(AV)

1014174-067

$145.22

31

Control, Lower, RH (AT)(AV)

1014175-067

$145.22

31

Control, Lower, LH

1014174-293

$145.22

31

Control, Lower, RH

1014175-293

$150.06

32

Bushing, Bearing Carrier

5631142

$23.81

33

WASHER-LOCK, 7/16-B

7552614

$1.59

34

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

35

WASHER, FLAT

7555740

$1.59

36

Bushing, Control, Lower

5434550

$4.76

36

Bushing, Control, Lower

5434550

$4.76

37

Shield, LH

5434890-1038

Unavailable

37

Shield, RH

5434891-1038

Unavailable

38

Screw

7512084

$1.19

39

Carrier, Wheel Bearing [RH]

5133664

$137.74

39

Carrier, Wheel Bearing, LH

5133663

$137.74
