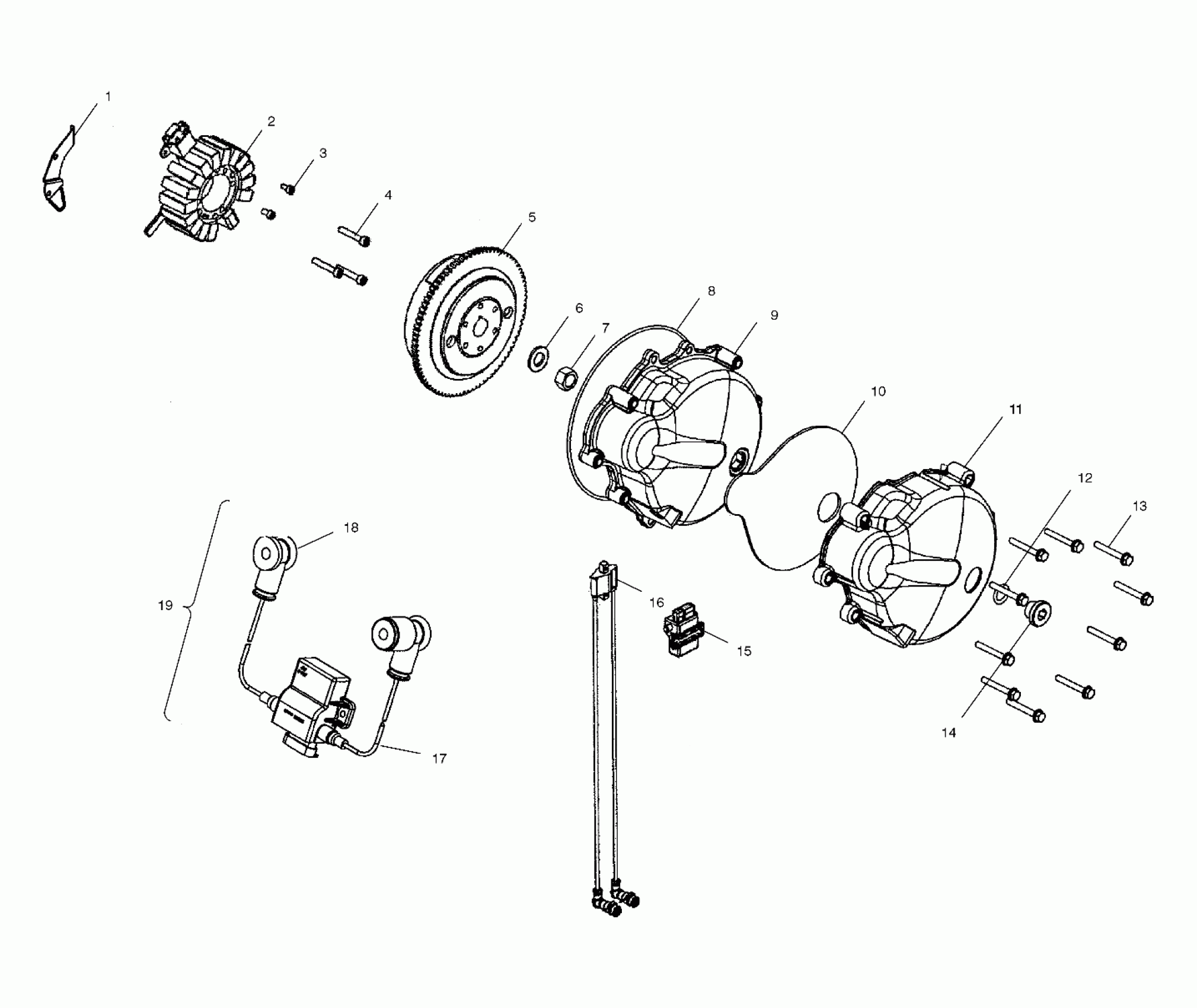

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV MAGNETO - A04CH68AC/AF/AH/AJ/AT/AV (4986128612D13) Diagram

Holddown, Wire

5245364

$49.99

Asm., Stator [If built after 2/23/03]

4010901

$579.99

Kit, Ignition [Incl. Jumper]

2202602

$821.74

Asm., Stator [If built before 2/23/03]

4010709

$821.74

SCREW

7517847

$3.17

Screw [If built before 2/23/03]

7517848

$5.56

SCR-M6X1.0X30,HX/SOC/CP-ZPC [If built after 2/23/03]

7517714

$10.32

Asm., Flywheel [If built before 2/23/03]

4060152

$479.99

Asm., Flywheel [If built after 2/23/03]

4010899

$509.99

WASHER

7555907

$5.56

Nut

7546909

Unavailable

O-Ring

5812359

Unavailable

Housing, Stator

1201684

$102.38

Cover, Sound

5812283

$36.41

Cover, Outer

5434310

$26.98

O-Ring

5411564

$4.03

Screw

7517950

$5.56

Plug

5433820

$24.27

Controller, Ignition [If built after 2/23/03]

4010897

$435.70

Coil, Ignition [If built after 2/23/03]

4010898

Unavailable

Wire, Ignition [If built before 2/23/03]

4010124-66

Unavailable

Boot, Spark Plug [If built before 2/23/03]

4010526

Unavailable

Asm., Controller, Ingition [Incl. 17,18][If built before 2/23/03]

4010696

$331.89
