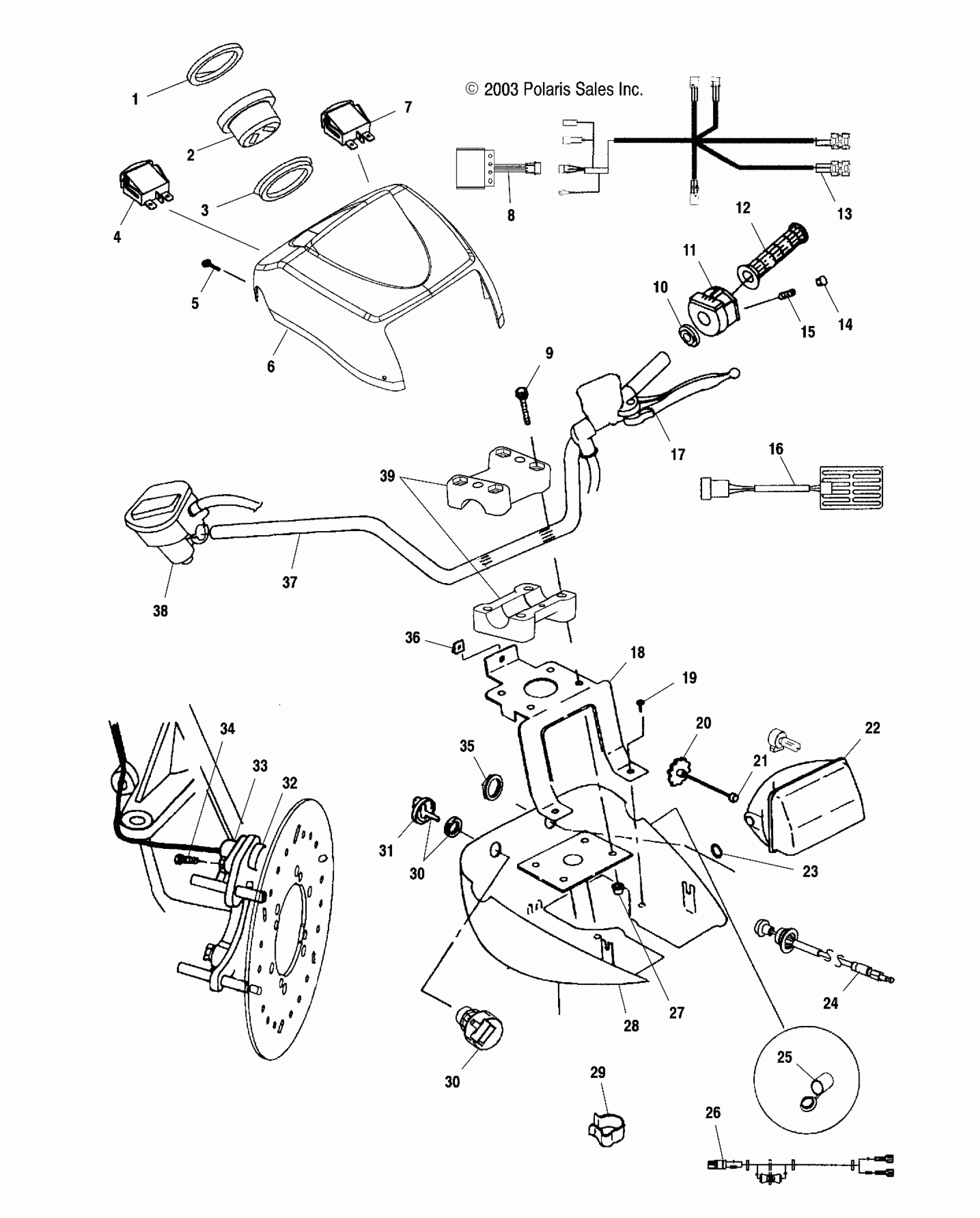

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV HANDLEBAR AND HEADLIGHT POD - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C01) Diagram

#

Description
Price

1

Bezel

5434380

Unavailable

2

Cluster

3280431

$343.99

3

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

4

Switch, Thumb Warmer, Hi/Lo (AT)(AV)

4010964

$64.75

5

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

6

Pod, Headlight, Upper [AH]

5434706-400

Unavailable

6

Pod, Headlight, Upper [AJ]

5434706-053

Unavailable

6

Pod, Headlight, Upper [AF]

5434706-341

Unavailable

6

Pod, Headlight, Upper (AT)

5435330-455

Unavailable

6

Pod, Headlight, Upper (AV)

5435330-456

Unavailable

6

Pod, Headlight, Upper [AC]

5435239-455

Unavailable

7

Switch, Hand Warmer, Hi/Lo (AT)(AV)

4010963

$60.70

8

Module, Load Shed (AT)(AV)

4010970

Unavailable

9

SCREW

7517238

$4.79

10

Spacer, Switch, LH

5433903

Unavailable

11

Switch, Handlebar

4010592

$38.60

12

Grip, Handlebar

5433834-070

$24.27

13

Harness, Wire, Warmers (AT)(AV)

2461213

$99.99

14

Plug

5432952

$5.59

15

SCREW, SET

7517625

$4.79

16

Asm., Hand Warmer (AT)(AV)

2410418

Unavailable

17

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG. B13 FOR DETAILS]

-------

Unavailable

18

Bracket, Pod Mounting

5244969-067

$44.99

19

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

20

KNOB, ADJUSTING

4032079

$23.99

21

Rod, Adjusting

4032078

Unavailable

22

KIT-HARNESS,HEADLIGHT

2204143

$71.99

22

BULB-HEADLIGHT,50 WATT

4010253

$34.99

22

Asm., Headlamp

2410268

$109.27

23

O-RING

5410163

$1.60

24

Cable, Choke (If built before 8/11/03)

7081008

$79.99

24

Cable, Choke (If built after 8/11/03)

7081176

$77.21

25

Receptacle, Pod Mount, 12V

4010638

$24.27

26

Harness, Light, Pod/Accy.

2461045

Unavailable

27

Nut, Nylok

7542122

$1.49

28

Pod, Headlight, Lower [AC][AJ](AT)(AV)

5433762-070

$114.99

28

Pod, Headlight, Lower [AH]

5433762-177

$93.08

28

Pod, Headlight, Lower [AF]

5433762-382

Unavailable

29

Clip, Cable Retaining

7080631

$6.29

30

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

30

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

30

Switch, Ignition [Incl. Key]

4011002

Unavailable

30

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

30

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

30

Switch, Ignition [Incl. Key]

4011002

Unavailable

31

KEY SWITCH KEY COVER

5433534

$12.35

32

CAP

5132382

$23.99

33

Sensor

4010298

$111.99

34

Screw

7517658

$5.59

35

Nut, Choke

7080922

$3.19

36

CLIP, SCREW

7670127

$9.59

37

Tube, Handlebar

5242987-067

$114.99

38

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B10, REF. 5]

-------

Unavailable

39

Block, Handlebar, Pegged

5631146

$10.71

39

Block, Handlebar

5631147

Unavailable
