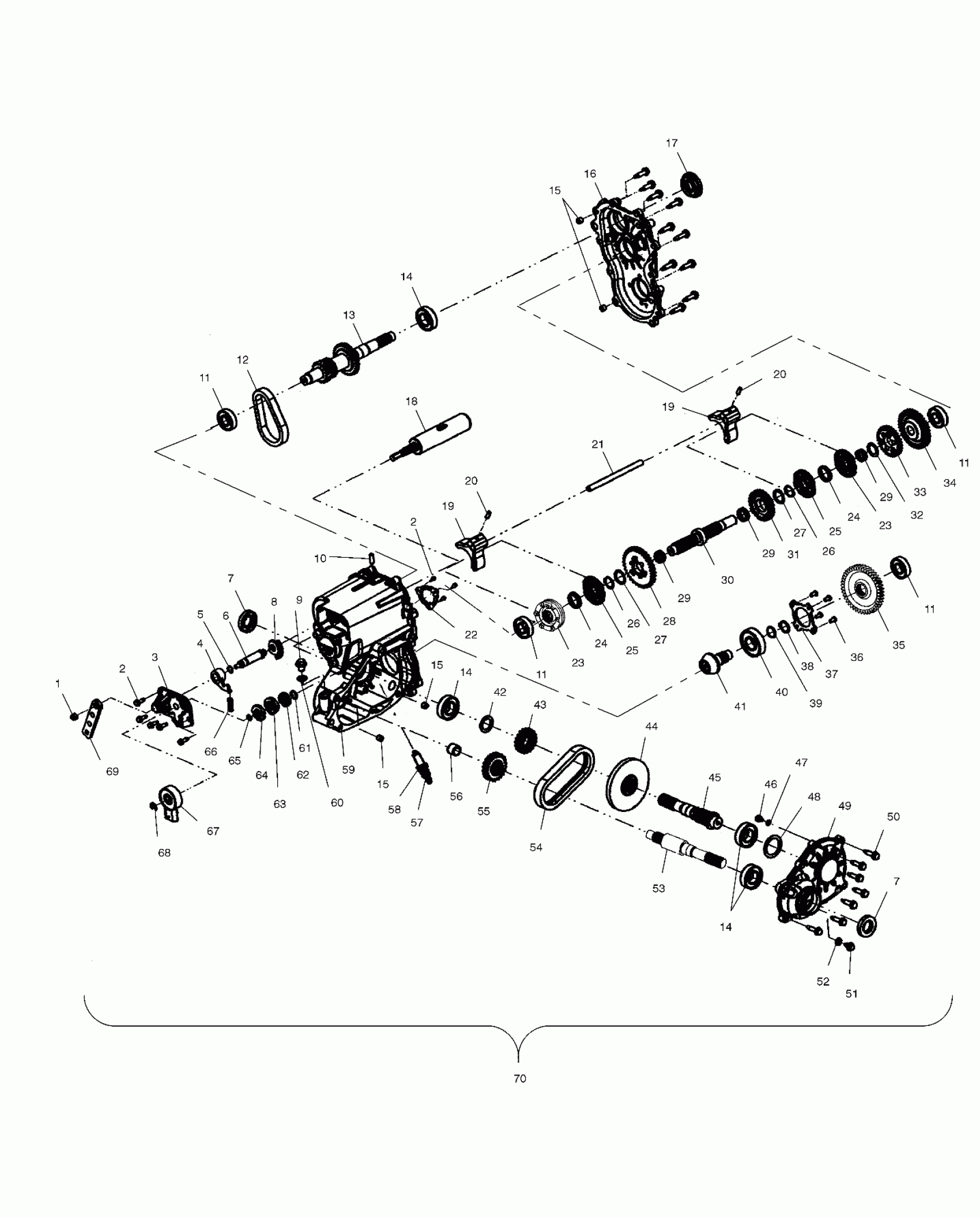

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV GEARCASE - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C13) Diagram

#

Description
Price

1

NUT

3233961

$2.79

2

SCREW

3233826

$9.59

2

SCREW

3233826

$9.59

3

Cover

3233827

$107.99

4

Pawl, Detent

3233829

$31.99

5

O-RING

3233869

$5.59

6

SHAFT, SHIFT

3233831

$59.99

7

Seal

3233788

$31.99

7

Seal

3233788

$31.99

8

GEAR-SECTOR,31T

3233832

$31.99

9

Plug, Oil Fill

3233711

Unavailable

10

TUBE, VENT

3233524

$7.19

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

12

Chain, Silent

3233036

Unavailable

13

Shaft, Input

3233890

Unavailable

14

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

14

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

14

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

Pipe, Knock

3233529

$7.99

15

Pipe, Knock

3233529

$7.99

15

Pipe, Knock

3233529

$7.99

16

Cover, LH

3233865

Unavailable

17

Seal

3233874

$31.99

18

Drum, Shift

3233910

Unavailable

19

Fork, Shift w/Pin [Incl. 20]

3234141

Unavailable

19

Fork, Shift w/Pin [Incl. 20]

3234141

Unavailable

20

Pin, Dowel

-------

Unavailable

20

Pin, Dowel

-------

Unavailable

21

RAIL, SHIFT SHAFT

3233860

$52.79

22

PLATE, PARK

3233915

$39.99

23

ENGAGEMENT DOG

3234040

$167.19

23

ENGAGEMENT DOG

3234040

$167.19

24

SPRING, WAVE

3234144

$26.39

24

SPRING, WAVE

3234144

$26.39

25

ENGAGEMENT DOG

3233875

$155.99

25

ENGAGEMENT DOG

3233875

$155.99

26

RING, RETAINING

3233850

$10.39

26

RING, RETAINING

3233850

$10.39

27

WASHER

3233851

$10.39

27

WASHER

3233851

$10.39

28

GEAR, 33T

3233852

$231.99

29

BEARING, NEEDLE

3233718

$35.99

29

BEARING, NEEDLE

3233718

$35.99

29

BEARING, NEEDLE

3233718

$35.99

30

Shaft, Reverse

3233853

$267.13

31

Sprocket, 24T

3233854

$149.59

32

WASHER

3233855

$10.39

33

Gear, 28T

3233912

Unavailable

34

Gear, 40T

3233913

Unavailable

35

Gear, 44T

3234039

$129.49

36

Screw

3233608

$5.99

37

Cover, Bearing

3233609

$19.99

38

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

39

SPACER

3233357

$21.99

40

Bearing, Ball

3233607

$36.41

41

Subasm., Ground Spiral Bevel [Incl. 44]

3234912

$595.54

42

WASHER,THRUST

3233619

$21.99

43

SPROCKET, 22T/18T

3233873

$99.99

44

Subasm., Ground Spiral Bevel [Incl. 41]

3234912

$595.54

45

SHAFT-OUTPUT,MAIN,REAR

3233911

$189.19

46

THRUST BUTTON

3233582

$7.91

47

SHIM

3233583

Unavailable

48

SHIM

3233611

Unavailable

49

Cover, Output, Front

3233781

$275.22

50

SCREW

3234114

$7.19

51

Plug

3233777

$34.99

52

Washer

3233254

$7.99

53

SHAFT,FRONT OUTPUT

3233625

$139.99

54

CHAIN, SILENT

3233784

$87.99

55

SPROCKET-22T

3233844

$127.59

56

BUSHING-GARLOCK

3233552

$23.99

57

Clamp, Tie

3234013

Unavailable

58

Lockout, Park

3233917

Unavailable

59

Gearcase, Main

3233867

$569.99

60

Washer

3233324

$8.99

61

O-Ring

3233548

$27.99

62

GEAR, 16T

3233839

$31.99

63

DISC, LOCKOUT

3233838

$26.39

64

Star, Detent

3234082

$35.19

65

O-RING

3233076

$6.39

66

SPRING, COMPRESSION

3233830

$10.39

67

SWITCH

3233835

Unavailable

68

RING, RETAINING

3233834

$10.39

69

Bellcrank

3233906

Unavailable

70

Asm., Main Gearcase

1341343

Unavailable
