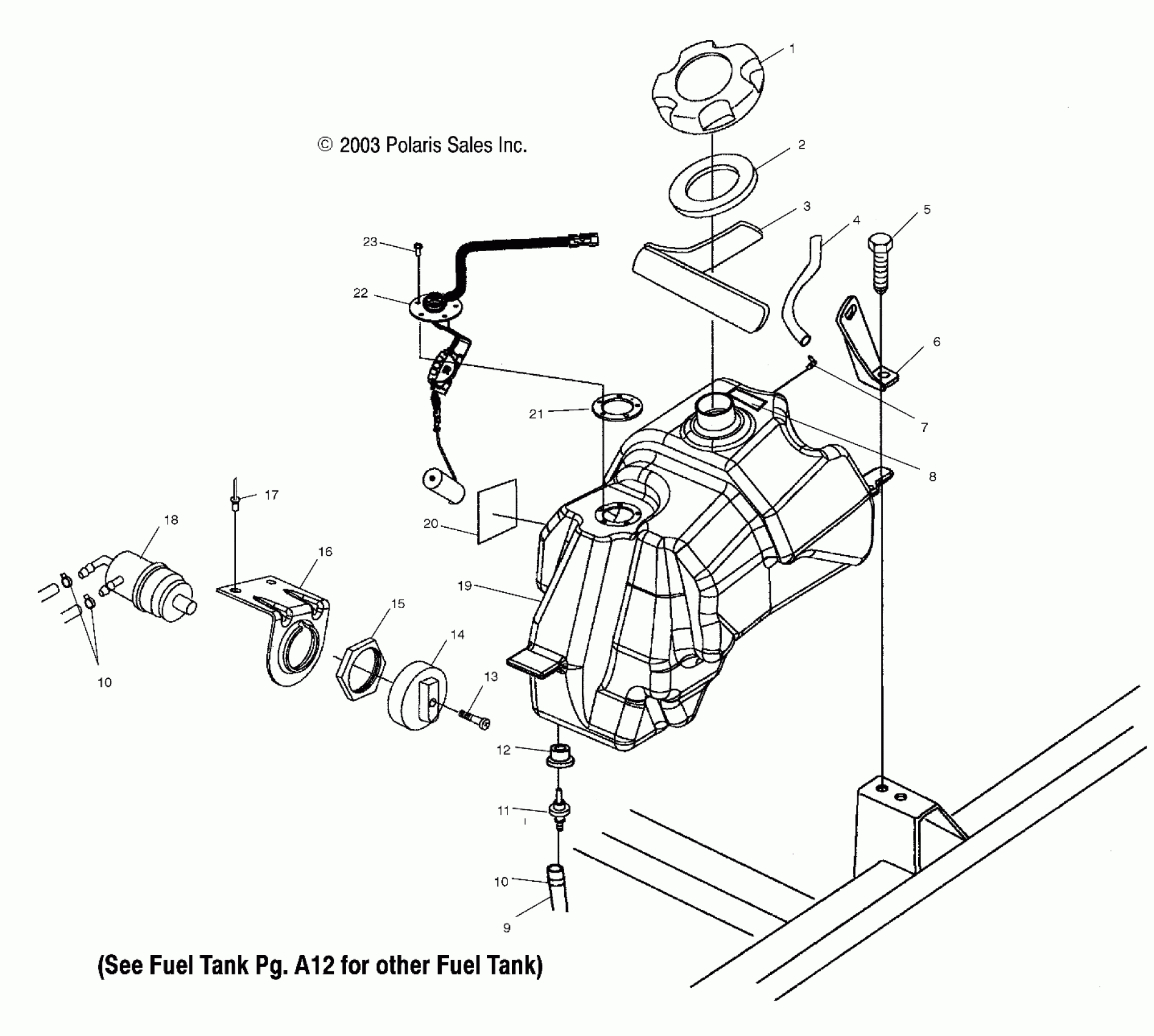

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV FUEL TANK - A04CH68AT/AV (4986128612E03) Diagram

#

Description
Price

1

Cap, Gas Tank (If built before 7/01/03)

5433687

$20.22

1

Cap, Gas Tank (If built after 7/01/03)

5435324

Unavailable

2

Gasket, Fuel Cap

5812123

$5.65

3

SEAL, FOAM

5812265

$27.99

4

LINE, FUEL

8360009-600

Unavailable

5

SCREW

7517685

$1.59

6

Bracket, Mounting, Rear, LH

5247184

Unavailable

6

Bracket, Mounting, Rear, RH

5247185

$43.99

7

Vent, Tank

5431053

$19.99

8

Foil, Tank

5812004

Unavailable

9

Hose, Fuel

8450103

Unavailable

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

11

Fitting, Fuel Outlet, Reserve

7052346

$27.99

12

Grommet

7052362

$9.99

13

Screw

7517505

$1.59

14

Knob, Fuel Valve

5432559

$10.39

15

Nut, Fuel Valve

5432733

Unavailable

16

Bracket, Fuel Valve

5247585

Unavailable

17

RIVET-3/16-.090-.290

7661637

$1.49

18

Valve, On/Off

7052159

$43.99

19

Asm., Fuel Tank w/Sender [Incl. 7,8,11,12,20-23]

2520339

Unavailable

20

Foil, Tank

5812005

$19.30

21

Gasket

5810858

$74.99

22

Sender, Fuel

2410289

Unavailable

23

Screw

7512056

Unavailable
