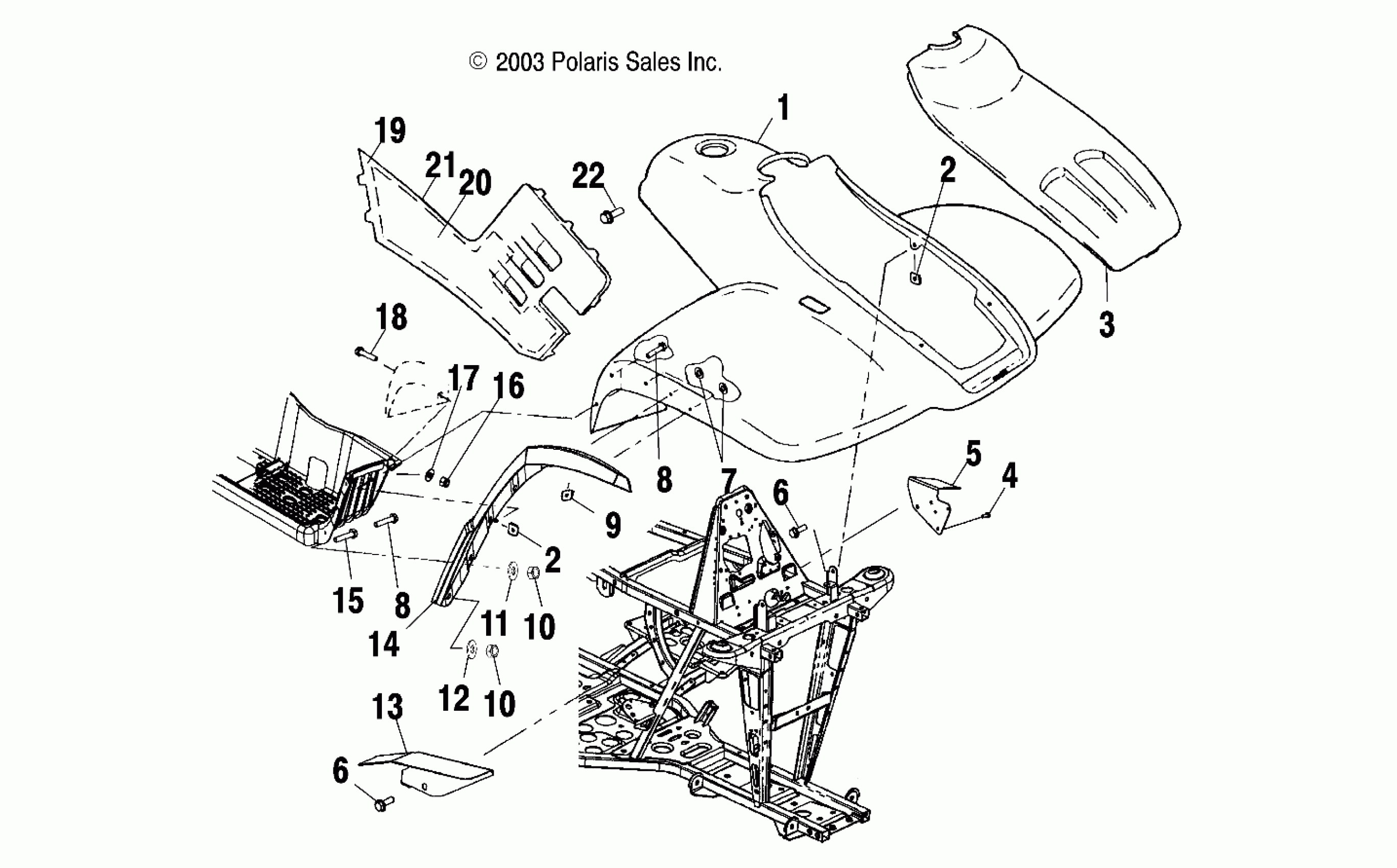

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV FRONT CAB - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A05) Diagram

#

Description
Price

1

Cab, Front, Camo Green Met [AH]

2632748-400

Unavailable

1

Cab, Front, New Break-Up [AC](AT)

2632818-455

$559.99

1

Cab, Front, Shadowgrass (AV)

2632818-456

$559.99

1

Cab, Front, Yellow [AJ]

2632748-053

Unavailable

1

Cab, Front, Sonic Blue Met [AF]

2632748-341

Unavailable

2

NUT, U-TYPE SPEED

7670057

$1.49

2

NUT, U-TYPE SPEED

7670057

$1.49

3

Cover, Front, Camo Green Met [AH](If built after 5/01/03)

5435110-400

Unavailable

3

Cover, Front, New Break-Up [AC](AT)

5435166-455

$246.89

3

Cover, Front, Shadowgrass (AV)

5435166-456

Unavailable

3

Cover, Front, Yellow [AJ](If built after 5/01/03)

5435110-053

Unavailable

3

Cover, Front, Sonic Blue Met [AF](If built after 5/01/03

5435110-341

Unavailable

3

Cover, Front, Camo Green Met [AH](If built before 5/01/03)

5432088-400

Unavailable

3

Cover, Front, Yellow [AJ](If built before 5/01/03)

5432088-053

$99.19

3

Cover, Front, Sonic Blue Met [AF](If built before 5/01/03

5432088-341

Unavailable

4

SCREW

7517867

$1.59

5

Guard, Splash, LH/Pump Mount

5246872

$44.99

6

SCREW

7517386

$1.49

6

SCREW

7517386

$1.49

7

Nut, Push-on

7670135

$4.79

8

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

8

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

9

Clip, Retaining

7670156

Unavailable

10

Nut, Nylok

7542122

$1.49

10

Nut, Nylok

7542122

$1.49

11

WASHER

7556034

$2.39

12

Washer, Flat

7555859

$1.49

13

Guard, Splash, RH

5246021-067

$28.15

14

Guard, Mud, Front, Black, LH

5434702-070

Unavailable

14

Guard, Mud, Front, Black, RH

5434703-070

Unavailable

15

Screw

7515158

$4.79

16

Nut, Nylok

7541925

$1.49

17

WASHER

7555792

$4.79

18

Screw

7512085

Unavailable

19

Foil, Side Panel, Gen. IV, RH

5811491

Unavailable

20

Foil, Side Panel, RH

5812326

Unavailable

21

Panel/Foil, New Break-Up, RH [AC](AT)

2632819-455

$165.86

21

Panel, Side, Shadowgrass, LH (AV)

5435335-456

$186.65

21

Panel/Foil, Shadowgrass, RH (AV)

2632819-456

Unavailable

21

Panel, Side, Silver Vapor Met., LH [AF]

5433853-382

Unavailable

21

Panel/Foil, Silver Vapor Met., RH [AF]

2632471-382

$111.99

21

Panel, Side, Black, LH [AJ]

5433853-070

$103.19

21

Panel/Foil, Black, RH [AJ]

2632471-070

$99.19

21

Panel/Foil, Black Met, RH [AH]

2632471-177

Unavailable

21

Panel, Side, New Break-Up, LH [AC](AT)

5435167-455

Unavailable

21

Panel, Side, Black Met, LH [AH]

5433853-177

Unavailable

22

Screw

7512085

Unavailable
