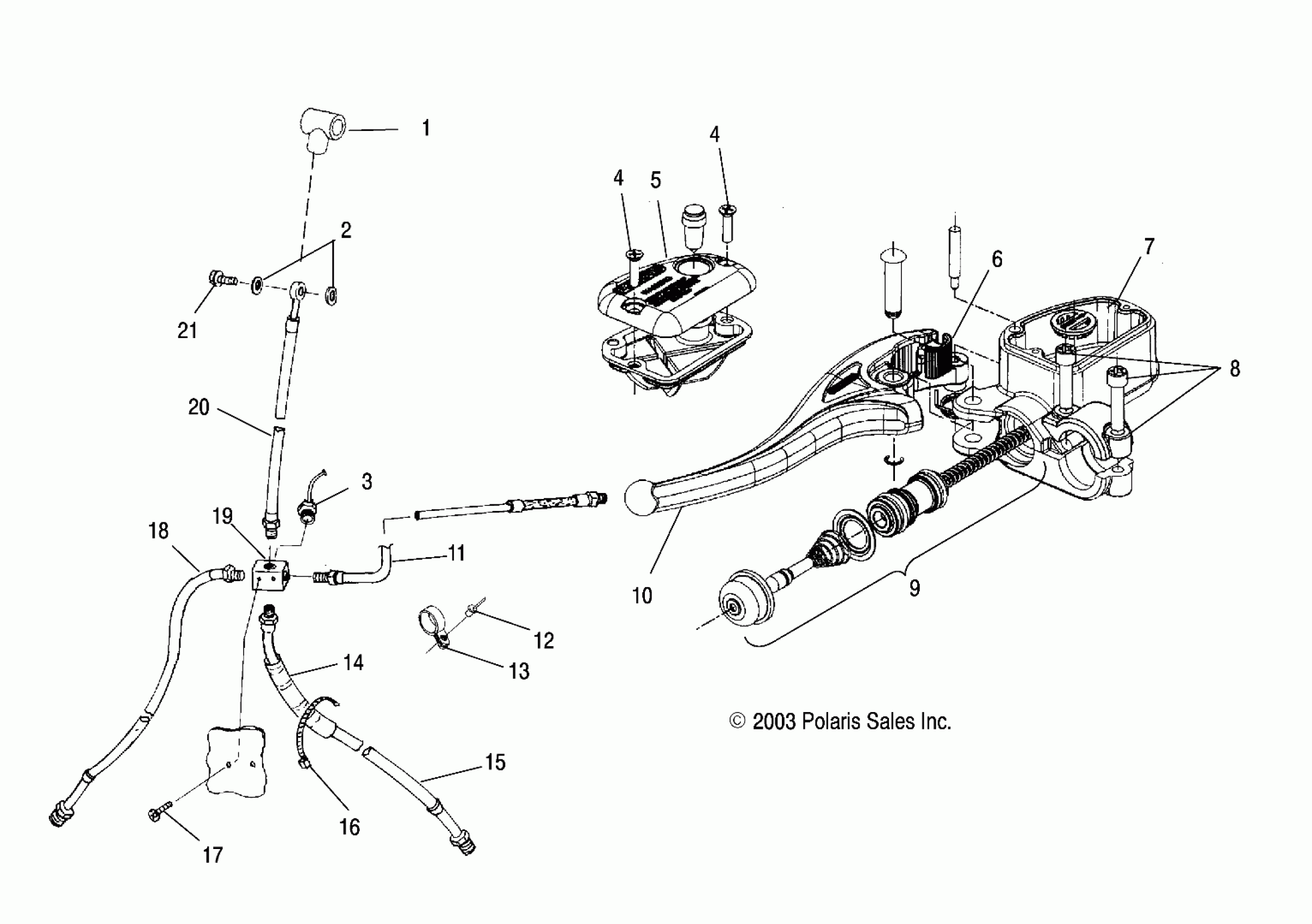

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV CONTROLS - MASTER CYLINDER/BRAKE LINE - A04CH68AC/AF/AH/AJ/AT/AV (4986128612B13) Diagram

Boot, Brake Line, Rubber

5411297

$2.06

Seal

5410988

$4.84

SWITCH

4110164

$204.24

SCREW

7517899

$1.19

SCREW

7517899

$1.19

Kit, Master Cylinder Cap [Incl. Cap, Screws, Sight, Gasket]

2201834

$52.60

KIT, MASTER CYLINDER PARK BRAKE LEVER [INCL. LEVER, SPRING]

2201836

$44.51

Asm., Master Cylinder (If built before 11/15/03)

2010196

$246.89

Asm., Master Cylinder (If built after 11/15/03)

2010238

$246.89

KIT, MASTER CYLINDER CLAMP [INCL. CLAMP, SCREWS]

2201833

$47.62

Screw (AT)(AV)

7518304

Unavailable

Kit, Piston (Incl. Piston, Seals, Boot, Spring)

2202410

$111.10

KIT, MASTER CYLINDER LEVER [INCL. PIN, LEVER, CLIP]

2201835

$60.70

Line, Brake, Hand, Rear

1910430

$101.17

Rivet

7621462

$1.19

Clamp, Nylon

7080539

$4.76

Conduit

8360031-34

Unavailable

Line, Brake, Left Front

1910474

$89.03

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

SCREW

7512024

$4.76

Line, Brake, Right Front

1910475

$89.03

FITTING, CROSS

7052292

$39.68

Line, Brake, Pod

1910470

$89.03

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94
