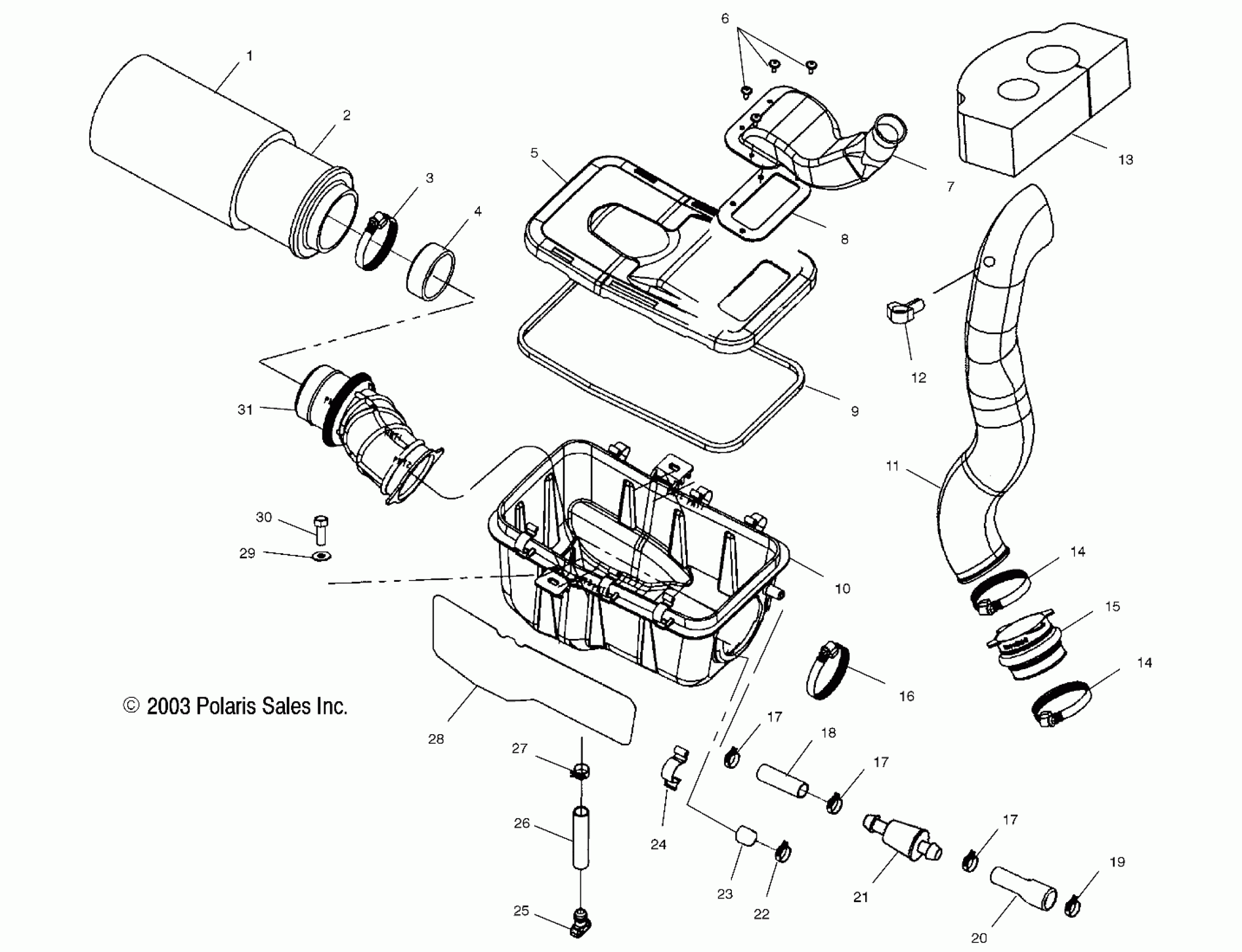

Polaris A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV AIR BOX - A04CH68AC/AF/AH/AJ/AT/AV (4986128612B01) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

FILTER, AIR INTAKE

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Sleeve

5433847

$13.59

5

Cover, Air Box

5432868

$51.99

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Duct, Air Inlet

5434013

Unavailable

8

Gasket, Intake

5411422

$6.63

9

Seal, Air Box Cover

5811482

Unavailable

10

Box, Air

5433678

$127.99

11

Duct, Clutch Air Inlet

5434044

$114.99

12

Clip

7670102

$2.39

13

Seal, Foam

5812316

$32.37

14

CLAMP, HOSE

7080451

$7.19

14

CLAMP, HOSE

7080451

$7.19

15

BOOT, INTAKE [SEE ENGINE MOUNTING PG. A14, REF. 31]

-------

Unavailable

16

Clamp, Narrow Band

7080511

$4.79

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

18

Line, Breather

8450073-600

Unavailable

19

Clamp

7080694

$6.53

20

Hose, Breather, Formed

5411966

$10.51

21

Filter, Breather

2530029

$6.39

22

Clamp, Hose

7080534

$1.59

23

Cap, End

5433396

$4.79

24

CLIP-AIR BOX

5242044

$9.59

25

Plug, Trap (If built after 7/21/03)

5435299

$6.39

25

Plug, Trap (If built before 7/21/03)

5432377

Unavailable

26

Line, Fuel

8450059-150

Unavailable

27

Clamp, Hose

7080650

$3.99

28

Foil, Air Box

5811650

Unavailable

29

Washer, Flat

7558301

$1.49

30

Screw

7515179

$2.39

31

Boot, Carb

5412066

$39.99
