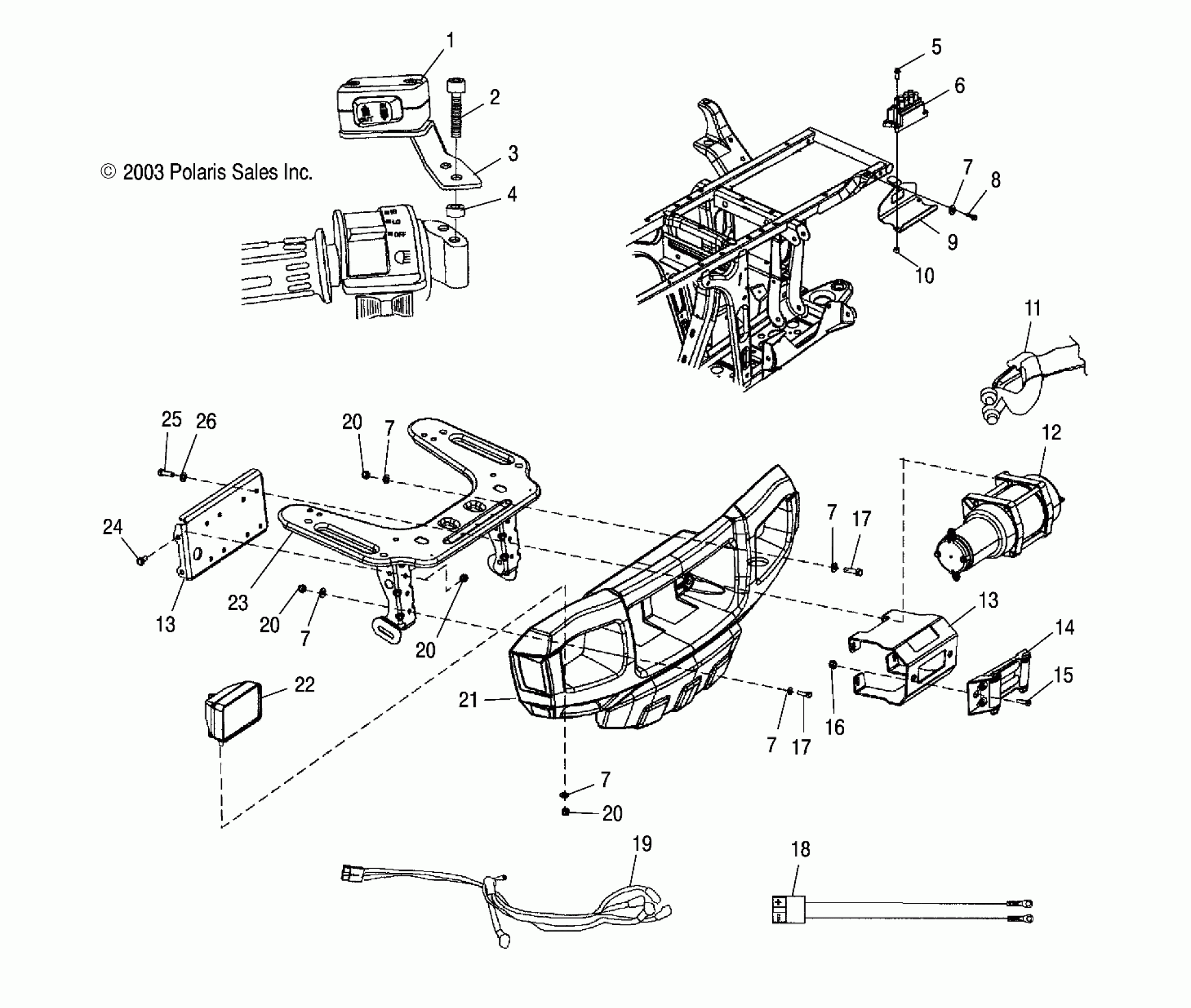

Polaris A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW WINCH ASM. - A04CH59AQ/AW (4987468746E01) Diagram

#

Description
Price

1

Switch, Winch (Incl. 2-4)

2202255

Unavailable

2

SCREW

-------

Unavailable

3

Plate, Switch Mount

-------

Unavailable

4

Spacer, Master Cylinder Clamp

-------

Unavailable

5

Bolt

7512247

$2.39

6

Contactor

2202254

Unavailable

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

Bolt

7512329

$3.99

9

Bracket, Contactor

5247570

Unavailable

10

Nut, Nylok

7542122

$1.49

11

Kit, Hook, Winch, Spring Snap

2873215

Unavailable

12

Kit, Winch

2874570

Unavailable

13

Kit, Winch Mount

2874678

Unavailable

13

Kit, Winch Mount

2874678

Unavailable

14

Roller, Fairlead, Warn Winch

2871462

Unavailable

15

Screw

7515494

$3.03

16

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

17

Screw

7512392

$4.79

17

Screw

7512392

$4.79

18

Harness, Front

2461220

Unavailable

19

Harness, Main

2461218

Unavailable

20

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

Bumper, Front

5432757-070

Unavailable

22

Asm., Headlight, Bottom Mount

2431017

Unavailable

23

Support, Rack, Front

1014020-067

$199.98

24

Bolt

7515321

$1.49

25

Screw

7515317

$4.79

26

WASHER, SPRING LOCK

7552901

$1.49
